Your right angle drill has been engineered and manufactured to Ryobi’s high standard for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance. WARNING: To reduce the risk of injury, the user must read and understand the operator's manual before using this product.
TABLE OF CONTENTS n Introduction ... 2 n General Safety Rules ... 3-4 n Specific Safety Rules... 4 n Safety Rules for Charger ... 5 n Symbols... 6-7 n Features... 8-9 n Assembly ... 9 n Operation... 10-14 n Maintenance ... 15-16 n Parts Ordering / Service ...
Use battery only with charger listed. MODEL BATTERY PACK (P100) P240 130255004 n Do not abuse the cord. Never use the cord to carry the charger. Keep cord away from heat, oil, sharp edges, or moving parts.
SERVICE n Tool service must be performed only by qualified re- pair personnel. Service or maintenance performed by unqualified personnel may result in a risk of injury. n Hold tool by insulated gripping surfaces when per- forming an operation where the cutting tool may contact hidden wiring or its own cord.
SAFETY RULES FOR CHARGER WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury. n Before using battery charger, read all instructions and cautionary markings in this manual, on battery charger, battery, and product using battery to prevent misuse of the products and possible injury or damage.
Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpreta- tion of these symbols will allow you to operate the tool better and safer. SYMBOL NAME Volts Amperes Hertz Watt Minutes Alternating Current Direct Current...
Page 7
The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL DANGER: WARNING: CAUTION: CAUTION: SERVICE Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest AUTHORIZED SERVICE CENTER for repair.

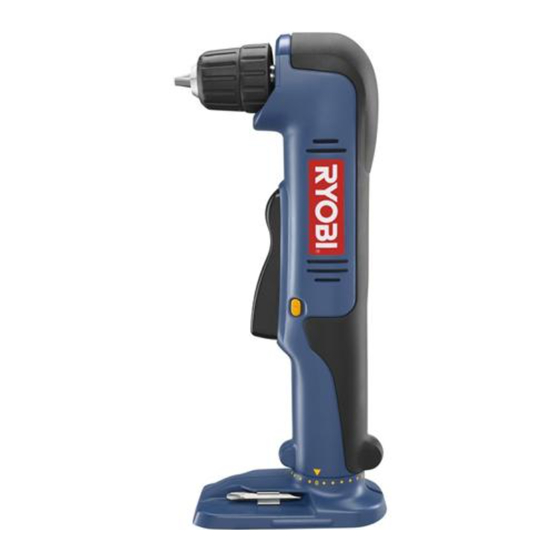

PRODUCT SPECIFICATIONS Chuck ... 3/8 in. Keyless Motor ...18 Volt DC Switch...Variable Speed No Load Speed ... 0-1000/min. Charger Input ... 120 V, 60 Hz, AC only Charge Rate ...1 hour Torque... Minimum 130 in.lb. KEYLESS CHUCK STORAGE FEATURES SWITCH TRIGGER DIRECTION OF ROTATION SELECTOR...
Your drill-driver has a forward/reverse selector located above the switch trigger. BIT STORAGE When not in use, bits provided with your drill-driver can be placed in the storage area located on the base of the motor housing. RIGHT ANGLE DESIGN The drill-driver’s right angle head design allows you to get...
WARNING: Do not allow familiarity with tools to make you care- less. Remember that a careless fraction of a second is sufficient to inflict serious injury. WARNING: Always wear safety goggles or safety glasses with side shields when operating tools. Failure to do so could re- sult in objects being thrown into your eyes, resulting in possible serious injury.
Lock the switch trigger on the drill by placing the direction of rotation selector in the center position. n Place the battery pack in the drill. Align the raised rib on the battery pack with the groove inside the drill.
Page 12
SWITCH TRIGGER See Figure 4. To turn the drill ON, depress the switch trigger. To turn it OFF, release the switch trigger. SWITCH LOCK See Figure 4.
Open or close the chuck jaws to a point where the open- ing is slightly larger than the bit size you intend to use. Also, raise the front of the drill slightly to keep the bit from falling out of the chuck jaws.
Page 14
If not prepared, this loss of control can result in possible serious injury. When drilling metals, use a light oil on the drill bit to keep it from overheating. The oil will prolong the life of the bit and increase the drilling action.
Only the parts shown on the parts list are intended to be repaired or replaced by the customer. All other parts should be replaced at a Ryobi Authorized Service Center. CHUCK REMOVAL See Figures 11 - 13. To remove the chuck: n Lock the switch trigger by placing the direction of rotation selector in center position.
TO RETIGHTEN A LOOSE CHUCK See Figures 11 - 13. The chuck may become loose on the spindle and develop a wobble. Periodically check the chuck screw for tightness. n Lock the switch trigger by placing the direction of rotation selector in center position.
Ryobi Authorized Service Center. Be sure to provide all pertinent facts when you call or visit. Please call 1-800-525-2579 for your nearest Ryobi Authorized Service Center. You can also check our web site at www.ryobitools.com for a complete list of Authorized Service Centers.
