WIZ110SR User's Manual
(Version2.0)
© 2008 WIZnet Co., Ltd. All Rights Reserved.
☞ For more information, visit our website at
http://www.wiznet.co.kr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WIZ110SR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wiznet WIZ110SR

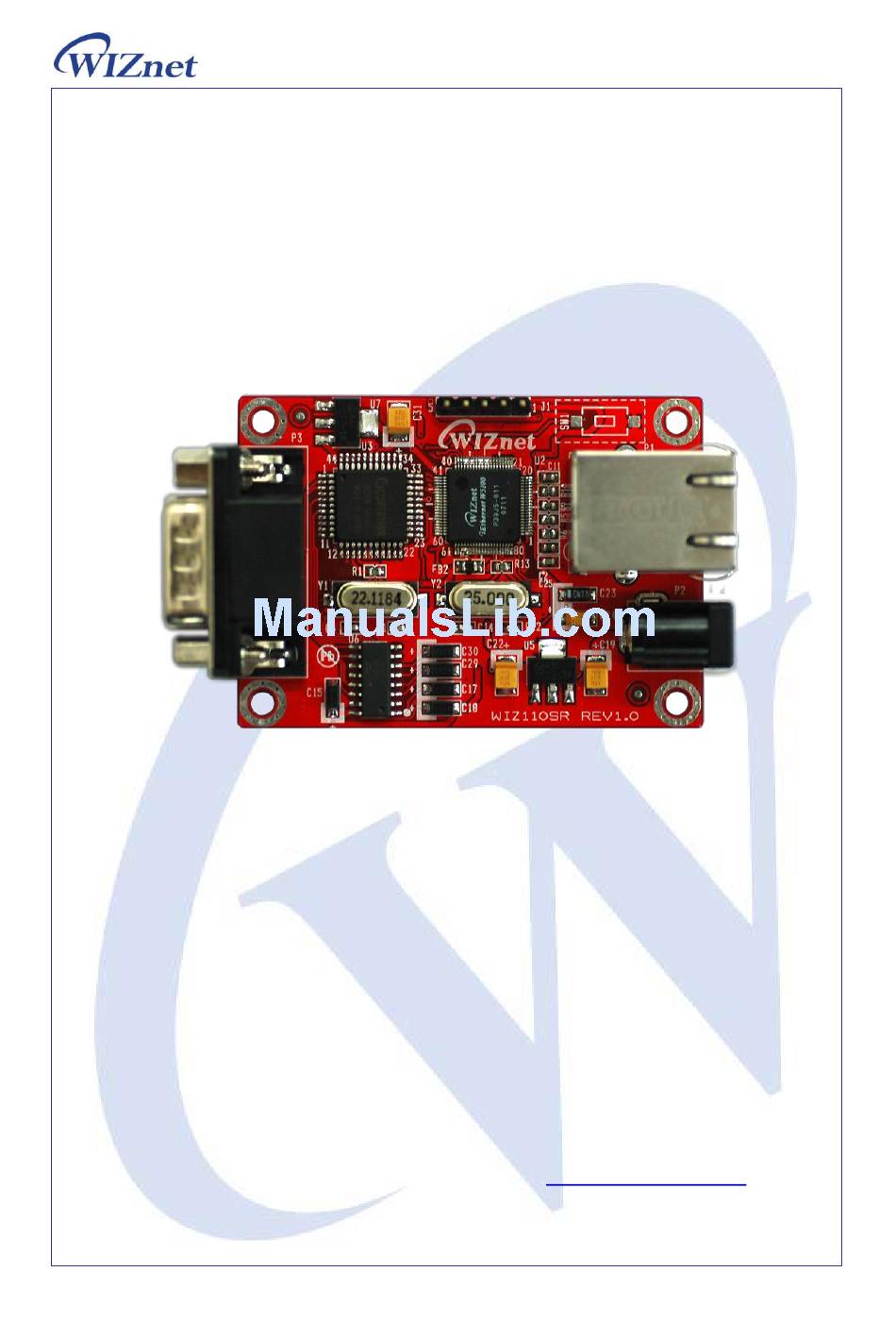

  • Page 1 WIZ110SR User’s Manual (Version2.0) © 2008 WIZnet Co., Ltd. All Rights Reserved. ☞ For more information, visit our website at http://www.wiznet.co.kr...
  • Page 2 WIZnet’s Online Technical Support If you have something to ask about WIZnet products, write down your question on Q&A Board in WIZnet website (www.wiznet.co.kr). WIZnet will give an answer as soon as possible. Copyright © WIZnet All Rights Reserved WIZ110SR | 2 page...
  • Page 3 COPYRIGHT NOTICE Copyright 2008 WIZnet, Inc. All Rights Reserved. Technical Support: support@wiznet.co.kr Sales & Distribution: sales@wiznet.co.kr For more information, visit our website at http://www.wiznet.co.kr Copyright © WIZnet All Rights Reserved WIZ110SR | 3 page...
  • Page 4: Table Of Contents

    OMMAND DEMONSTRATION AND TEST ................. 26 5.1................. 26 ARDWARE NTERFACE 5.2.............. 26 ESTING ERIAL TO THERNET UNCTION WIZ110SR HARDWARE SPECIFICATION ............28 6.1................... 28 ARAMETERS 6.2..................28 PECIFICATION 6.3.............. 28 OARD IMENSIONS AND SSIGNMENT WARRANTY ....................30 Copyright ©...
  • Page 5 Table 6. Serial Configuration Reply Code ............. 21 Table 7. Serial Configuration Command Code ..........23 Table 8. Serial Configuration Testing Process ..........25 Table 9. Testing Environment of WIZ110SR ..........26 Table 10. RS-232 PIN Assignment ............. 29 Copyright © WIZnet All Rights Reserved...
  • Page 6: Introduction

    TCP/IP by connecting to the existing equipment with RS-232 serial interface. In other words, WIZ110SR is a protocol converter that transmits the data sent by serial equipment as TCP/IP data type and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment.
  • Page 7: Products Contents

    5V Power Adaptor (Optional) Table 2. Products Contents ☞ If there is any missing item, contact to the shop where you purchased. ☞ The optional items should be purchased separately. Copyright © WIZnet All Rights Reserved WIZ110SR | 7 page...
  • Page 8: Wiz110Sr Board

    Block Diagram Figure 1. Block Diagram WIZ110SR is a protocol converter that transmits the data sent by serial equipment to Ethernet and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment. When the data is received from serial port, it is sent to W5100 by MCU.
  • Page 9: Configuration Tool

    Enable Serial Debug Mode : If this mode is checked, you can monitor the status and socket message of WIZ110SR (listen OK, connect fail etc.) through serial terminal. If Debug mode is on, debug message can cause abnormal operation of the serial device. Therefore, just use this mode only for Debug mode.
  • Page 10: Figure 3. Pppoe Connection Process In Serial Console

    IP Configuration Method: Select IP setting mode, you can select among Static, DHCP, PPPoE mode. Static: “Static” is the option for setting WIZ110SR with static IP address. First select MAC address that you want to set it as static IP in „board list‟. Then, the “Local IP, Subnet, Gateway boxes are enabled.
  • Page 11: Figure 4. Tcp Server Mode

    PPPoE ID/Password : If you select „PPPoE‟ mode, input ID/Password which you received from ISP company. ⓘ Server IP/Port : When WIZ110SR is set as “Client mode” or Mixed mode”, server IP and port should be set. WIZ110SR attempts to connect this IP address. ⓙ...
  • Page 12: Figure 5. Tcp Client Mode

    TCP Server mode can be useful when the monitoring center tries to connect to the device (where WIZ110SR is installed) in order to check the status or provide the commands. In normal time WIZ110SR is on the waiting status, and if there is any connection request (SYN) from the...
  • Page 13: Figure 6. Udp Mode

    As like TCP Server mode, the Mixed mode is useful for the case that the monitoring center tries to connect to the serial device (in which WIZ110SR is used) to check device status. In addition to this, if any emergency occurs in the serial device, the module will change to Client mode to establish the connection to the server and deliver the emergency status of the device.
  • Page 14 ⑤ To check configuration result, click „Search‟ button. ⓟ Upload Firmware will be uploaded through network ☞ After uploading the firmware, 20~30 seconds are required for initialization. ⓠ Exit : Close the configuration tool program. Copyright © WIZnet All Rights Reserved WIZ110SR | 14 page...
  • Page 15: Figure 7. Configuration Tool (Serial Config.)

    Serial Serial Configuration value of selected module is displayed. In order to change the serial configuration of WIZ110SR, this menu can be used. ☞ By clicking the “Setting” button, changed value can be applied. Copyright © WIZnet All Rights Reserved...
  • Page 16: Figure 8. Configuration Tool (Option Config.)

    In order to close the connection, the „Close‟ command should be given. This function can be used for more than two or more systems to connect to a WIZ110SR module. If one system holds the connection to the WIZ110SR, other systems can not connect to the module.
  • Page 17 You can designate how the serial data can be packed to send to the Ethernet. In default mode, WIZ110SR checks the serial buffer and sends any received data to Ethernet without any standard. Therefore, the data can be regarded as error data due to inconsistent data length.
  • Page 18: Figure 9. Option Mode For Password Configuration

    This function is for module configuration not through network with Configuration tool but through serial communication. When you want to set via serial communication, check “enable”. Please detail about serial configuration refers to “4. Serial Configuration”. Copyright © WIZnet All Rights Reserved WIZ110SR | 18 page...
  • Page 19: Firmware Upload

    ☞ Before uploading through Ethernet, you should set the network information of WIZ110SR first by Configuration Tool program as shown above Fig 10. By using Ping test, When the window as shown below Figure is displayed, select file for upload and click ④...
  • Page 20: Figure 11. Open Dialog Box For Uploading

    Figure 11. Open dialog box for uploading ☞ Do not upload any other files except for WIZ110SR application firmware file. A dialogue box titled “Processing” will be displayed as below. ⑤ Figure 12. Firmware uploading window ⑥ When uploading is complete, a message box with “Complete Uploading” will be Figure 13.
  • Page 21: Serial Configuration

    4. Serial Configuration 4.1. Serial Command Format It is possible to configure WIZ110SR by using serial command. By inputting specified 3 characters you can enter into the configuration mode. The characters can be defined at the Configuration Tool. <Frame Format>...
  • Page 22 0~65535 Set Inactivity timer value MAC Address Get MAC Address 0 : Not Use, 1 : Use Check DNS Use or Not IP address DNS IP Check Domain Domain Check Copyright © WIZnet All Rights Reserved WIZ110SR | 22 page...
  • Page 23: Table 7. Serial Configuration Command Code

    0~65535 Get the server port number Get delimiter character in hex 0~255 Get delimiter size 0~65535 Get delimiter time 0~65535 Get Inactivity timer value Table 7. Serial Configuration Command Code Copyright © WIZnet All Rights Reserved WIZ110SR | 23 page...
  • Page 24: Wiz110Sr Configuration With Serial Command

    4.2. WIZ110SR Configuration with Serial Command ① Check WIZ110SR Firmware version. If version is lower, download the latest firmware from download page of http://www.wiznet.co.kr Figure13. Serial Configuration Enable Setting At the default status, the serial configuration is disabled. So, click „enable‟ check box of ②...
  • Page 25: Table 8. Serial Configuration Testing Process

    MAC ADDRESS : 00.08.DC.13.5E.24 SUBNET MASK : 255.255.255.0 G/W IP ADDRESS : 192.168.11.1 LOCAL IP ADDRESS : 192.168.11.3 >Config socket : ok >Listen : Ok Figure14. Serial Configuration Console Display Copyright © WIZnet All Rights Reserved WIZ110SR | 25 page...
  • Page 26: Demonstration And Test

    5. Demonstration and Test In this chapter, we give an example that can be used to test the function of WIZ110SR The testing environment is as below. WIZ110SR 1) RS232 Port 1) WIZ110SR Board 2) LAN Port 2) Serial Cable...
  • Page 27: Figure 15. Device Terminal

    STEP8: You can check “Ethernet to Serial” function by inputting some character in the screen of Network terminal and checking them in the serial terminal.  Above function can be tested by Device Terminal program that WIZnet is providing. Figure 15. Device Terminal Copyright © WIZnet All Rights Reserved...
  • Page 28: Wiz110Sr Hardware Specification

    16KByte (MCU Internal)  EEPROM 2KByte (MCU Internal) 6.3. Board Dimensions and Pin Assignment 6.3.1. Dimensions [ unit : mm ] 3.60 56.00 3.50 Ø3.00 75.90 Figure 16. WIZ110SR Dimension Copyright © WIZnet All Rights Reserved WIZ110SR | 28 page...
  • Page 29: Figure 17. Rj-45 Pin Assignment

    Pin Number Signal Description Not Connected Receive Data Transmit Data Data Terminal Ready Ground Data Set Ready Request To Send Clear To Send Not Connected Table 10. RS-232 PIN Assignment Copyright © WIZnet All Rights Reserved WIZ110SR | 29 page...
  • Page 30: Warranty

    WIZnet warrants our products and its parts against defects in materials and workmanship under normal use for period of standard ONE(1) YEAR for the WIZ110SR board and labor warranty after the date of original retail purchase. During this period, WIZnet will repair or replace a defective products or part free of charge.
  • Page 31 - Added PPPoE descriptions(F/W updated) - Added serial configuration command - Removed hardware configuration description 2008-06- V2.0 - Added and modified serial configuration command(F/W updated to ver3.1) - Modified board dimensions(Chapter 6.3.1) Copyright © WIZnet All Rights Reserved WIZ110SR | 31 page...
