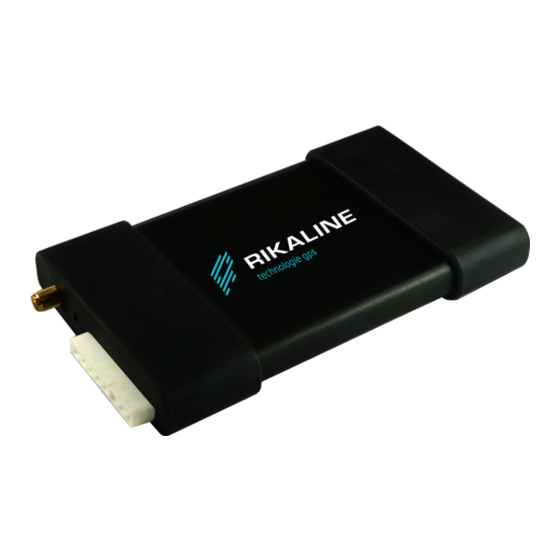

Rikaline GpsLogistic Pro User Manual

Gps/gsm tracker
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual

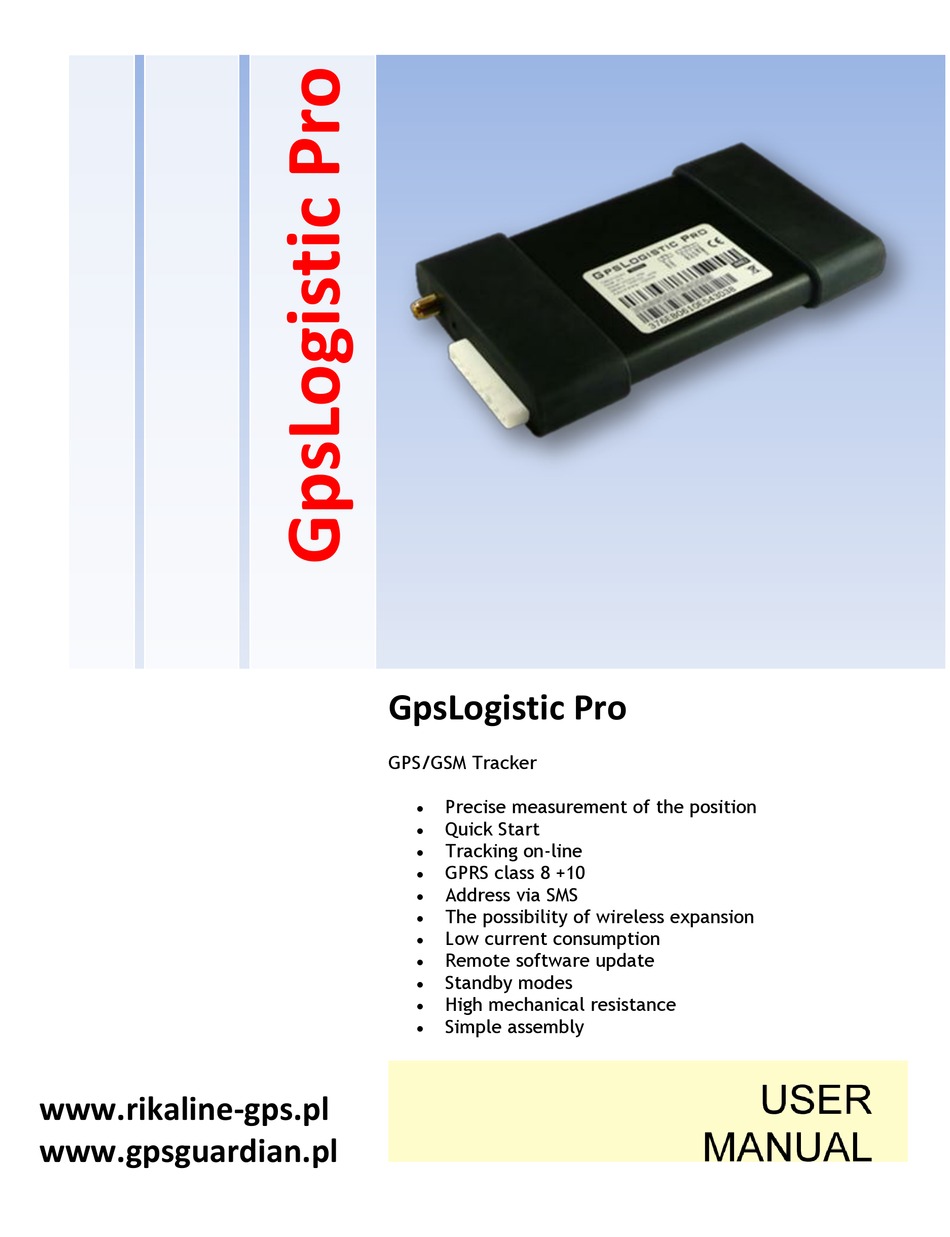

www.rikaline-gps.pl
www.gpsguardian.pl
GpsLogistic Pro
GPS/GSM Tracker
Precise measurement of the position
Quick Start
Tracking on-line
GPRS class 8 +10
Address via SMS
The possibility of wireless expansion
Low current consumption
Remote software update
Standby modes
High mechanical resistance
Simple assembly

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GpsLogistic Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rikaline GpsLogistic Pro

Summary of Contents for Rikaline GpsLogistic Pro

  • Page 1 GpsLogistic Pro GPS/GSM Tracker Precise measurement of the position  Quick Start  Tracking on-line  GPRS class 8 +10  Address via SMS  The possibility of wireless expansion  Low current consumption  Remote software update  Standby modes ...

  • Page 2: Detailed Specification

    Gps Logistic DETAILED SPECIFICATION Interface  Power supply 9. .35 V  Encrypted wireless connection with upto 16 expansion modules such as Drone, CarCard  2 Outputs (OC)  3 Digital inputs *  CAN bus connector *  Output for external GSM antenna ** ...
  • Page 3 Gps Logistic Optional Inside housing FUTURES  Registration GPS position samples,  acquisition of fuel level data Intelligent collectioning algorithm for GPS position samples, which significantly diminishes the amount of transferred data  Tracking mode in real time  Messaging of environmental events (ignition - engine on/off, inputs state change, unautorized motion detection, collision/accident alarm) ...

  • Page 4: First Run

    Gps Logistic First run The device is supplied in a form ready for use, the only steps you must take are:  insert SIM card  connect power supply,  Set (via SMS) following properties: owner's phone number, operator APN, IP address of the storage server Configuration can be done by sending SMS messages from any cell-phone, or in the 3-th party service indicated by an authorized distributor.
  • Page 5 Gps Logistic Description of LED indications Beside to the multifunctional connector is located the LED which indicates the basic functions of the device. All indication are described below Lighting patern Device status GPS i GPRS operating properly | 1s | NFNNNNNNNN FNNNNNNNN (flash 0.1sec in 1sec periods) GPS recives the setelite signal, but it's not possible to fix the...

  • Page 6: Additional Settings And Features

    Gps Logistic Additional settings and features The device has a number of additional features designed to meet the expectations of the user. In addition to the basic functionality that is sending current geo-position and environmental data, the user has the option to include: ...

  • Page 7: List Of Parameters

    - GPS Time "date" - GPS Date "pos" - GPS Possition "su" - The number of satellites seen by the GPS "PosAdres" - The address at which there is GpsLogistic Pro "SMS_Masage" - The last SMS received by GpsLogistic Pro...
  • Page 8 Gps Logistic Data collecting filters Parameter "Filter" has the following syntax: filter ftype,fpa,fpb,fpc each sub-parameter can take values from 0 to 255 „ ftype” - determines which filter will be used „ fpa”, „fpb”, „fpc” - determine the parameters of the selected filter (not used parameter value is ignored) All filters work only if ignition is enabled.
  • Page 9 Gps Logistic Parameter ”fpb” the minimum decrease of the speed from locally recorded as the maximum that the filter pass a changed speed to the system. Recomended value 20 km/h Parameter fpc the minimum growth rate recorded since at least that information has been sent. Recomended value 15 km/h Time filter [ftype=3]...
