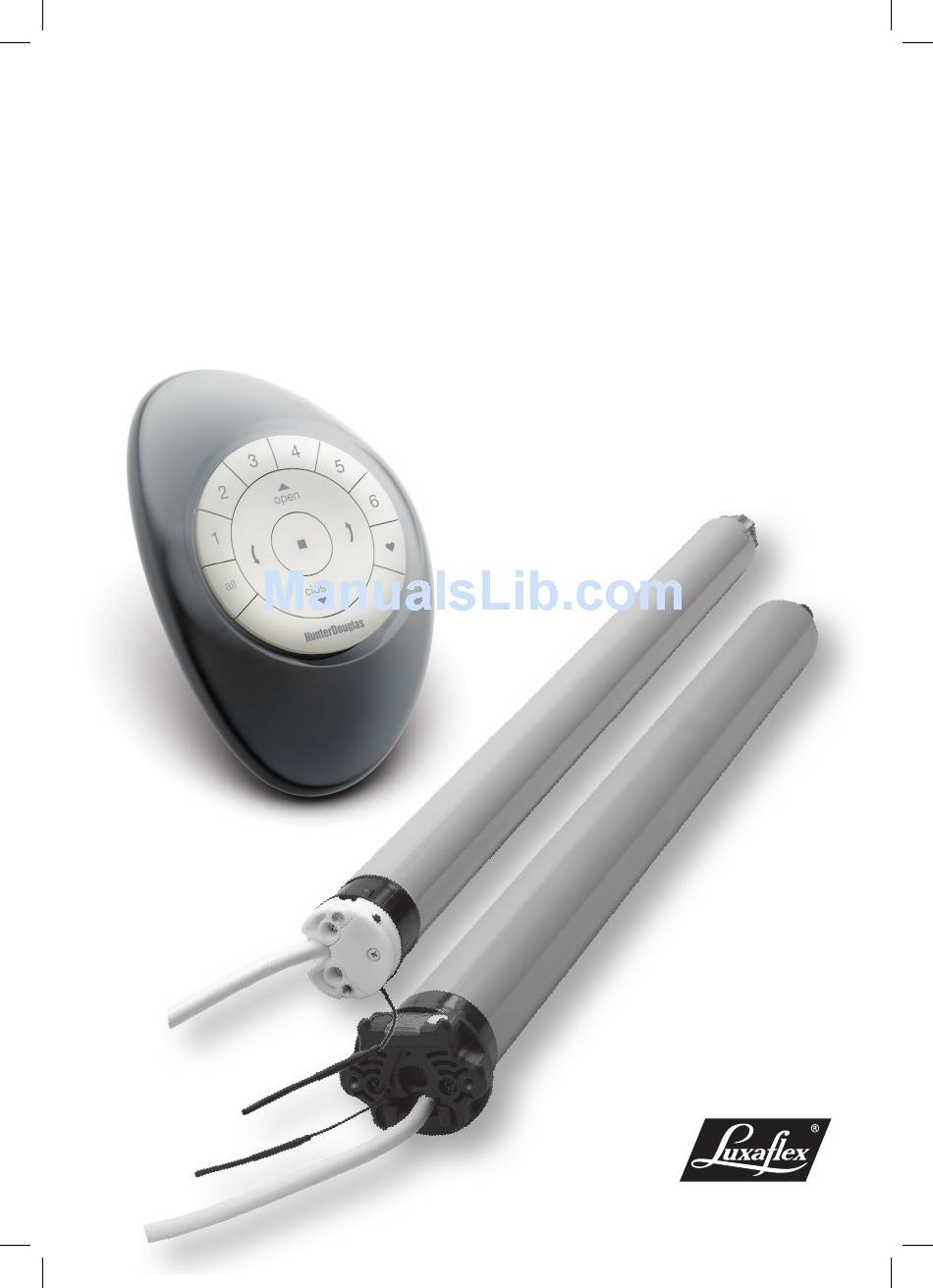

  • Page 1 PowerView AC Motor ™ by LUXAFLEX WINDOW FASHIONS ®...

  • Page 3: Table Of Contents

    338 Victoria Rd Rydalmere, NSW, 2116, Australia PowerView has been certified as complying with ACMA'S regulatory requirements. © Copyright 2016 Hunter Douglas Limited [ABN 98 009 675 709] ® Luxaflex, PowerView and Pebble are registered Trade Marks of Hunter Douglas •10/2016...

  • Page 5: Getting Started

    GETTING STARTED WARNING: Motors do not have default limits set. Limits must be set to enable normal operation. If operated without limits, the blind could be damaged by rolling over the top or wrapping backwards on the roller. KEY COMPONENTS The following items are required for single shade or multiple shade setup.

  • Page 6: Remote Control Overview

    REMOTE CONTROL OVERVIEW REMOTE MODULE FRONT REMOTE MODULE (BACK COVER REMOVED) GROUP 3 GROUP 4 RESET GROUP 5 GROUP 2 BUTTON OPEN GROUP 1 GROUP 6 STOP Press and hold for program mode. Favourite Shade position LEFT ARROW RIGHT ARROW Super Quiet Mode.
  • Page 7 REMOTE CONTROL OVERVIEW Important: The PowerView Remote will not operate a window covering until the window covering has been added to a GROUP. GETTING STARTED First, activate the remote by pulling both plastic tabs from the back battery compartment. Inserting the remote module into the PowerView Pebble (hand-held): Centre the Hunter Douglas logo on the remote module above the indentation on the bottom rim of the Pebble.

  • Page 8: Using Multiple Remotes Within A Home (Copying Network Id)

    USING MULTIPLE REMOTES WITHIN A HOME (PAIRING REMOTES TO A SINGLENETWORK ID) Each PowerView Remote comes with its own unique Radio Frequency (Network) ID. If multiple remotes (ie. PowerView Pebble and/or PowerView Surface remotes) will be used in the home, it is necessary to establish Target Target Source a single PowerView Shade Network ID for all remotes...

  • Page 9: Programming Overview

    PROGRAMMING OVERVIEW To program your PowerView AC motor and roller shade, you will need to perform the following 9 steps: STEP 1: Join a Shade to a Group STEP 2: Reverse the Motor Direction (If Necessary) STEP 3: Set the Motor Upper Limit STEP 4: Set the Motor Lower Limit STEP 5: Set a Favourite Position (Optional) STEP 6: Creating a Duplicate Remote...

  • Page 10: Step 2 - Reverse The Motor Direction (If Necessary)

    2. REVERSE THE MOTOR DIRECTION IMPORTANT: Be sure no end limits are set on the motor. If one or both limits are set, you cannot change the motor direction. See Appendix A for instructions to clear limits. Remote: deselect all GROUP numbers IN PROGRAM MODE: Motor: press and hold the manual control button Deselect all GROUP...

  • Page 11: Step 4 - Set The Motor Lower Limit

    4. SET THE MOTOR LOWER LIMIT 1. Move: the shade to the desired lower limit. On the remote, use the OPEN, CLOSE, LEFT or RIGHT, ARROW to fine IN PROGRAM MODE: tune desired position. Deselect all GROUP On the motor, use the manual control button or dry numbers.

  • Page 12: Step 5 - Set A Favourite Position (Optional)

    5. SET A FAVOURITE POSITION Move the motor to the desired position. Remote: press and hold STOP for 6 seconds to put the remote into program mode. The backlit buttons on the remote will flash to indicate it is in program mode. Remote: deselect all GROUP numbers.

  • Page 13: Step 7 - Test The Motors And Powerview Shade Network

    7. TEST THE MOTORS AND POWERVIEW SHADE NETWORK Use the remote control to verify the following settings for all shades in the PowerView Shade Network. Verify each shade is joined to the correct GROUP number. Press ALL to move all shades. Press GROUP 1 –...

  • Page 14: Clear Motor Limits

    CLEAR MOTOR LIMITS Clear Top Limit Remote: deselect all GROUP numbers. IN PROGRAM MODE: Motor: press and hold the manual control button located on the motor head. Deselect all GROUP Remote: while continuing to press the manual numbers. control button, press and release OPEN on the remote.

  • Page 15: Deactivate The Remote's Auto-Wake Feature

    DEACTIVATING THE REMOTE’S AUTO-WAKE FEATURE The auto-wake feature activates the backlights on the remote, whenever the remote is handled. This feature is useful for immediately seeing which shade group buttons were activated last, but deactivating this feature will help to conserve battery life.

  • Page 16: Control The Motor With Dry Contacts (M40 Motor Only)

    CONTROL THE MOTOR WITH DRY CONTACTS (M40 SERIES MOTOR ONLY) Open Short the OPEN dry contact to COMMON and then release. The motor moves in the OPEN direction. Close Manual Control Button Manual Control Button Short the CLOSE dry contact to COMMON and then release. The motor moves in the CLOSE direction.
