AMX MXA-MPL Quick Start Manual

Overview
®
The MXA-MPL Modero X Series Multi Preview Live (FG5968-10) is a touch panel
accessory that displays an HD video stream on Modero X Series Touch Panels when
used in conjunction with a high-definition (HD) Enova DVX All-In-One Presentation
Switcher or Enova DGX Digital Media Switcher.
Note: For full functionality, the MXA-MPL may be used with the Enova series media
switchers and Modero X Series touch panels. The MXA-MPL may not be used with
previously released AMX touch panels or switchers.
For more information on installation and configuration, refer to the MXA-MP/MXA-MPL
Instruction Manual, available at www.amx.com.
Front
Multi-Format
Video Input Diagnostic Output
Rear
Audio In
2-pin +12V
Power Output

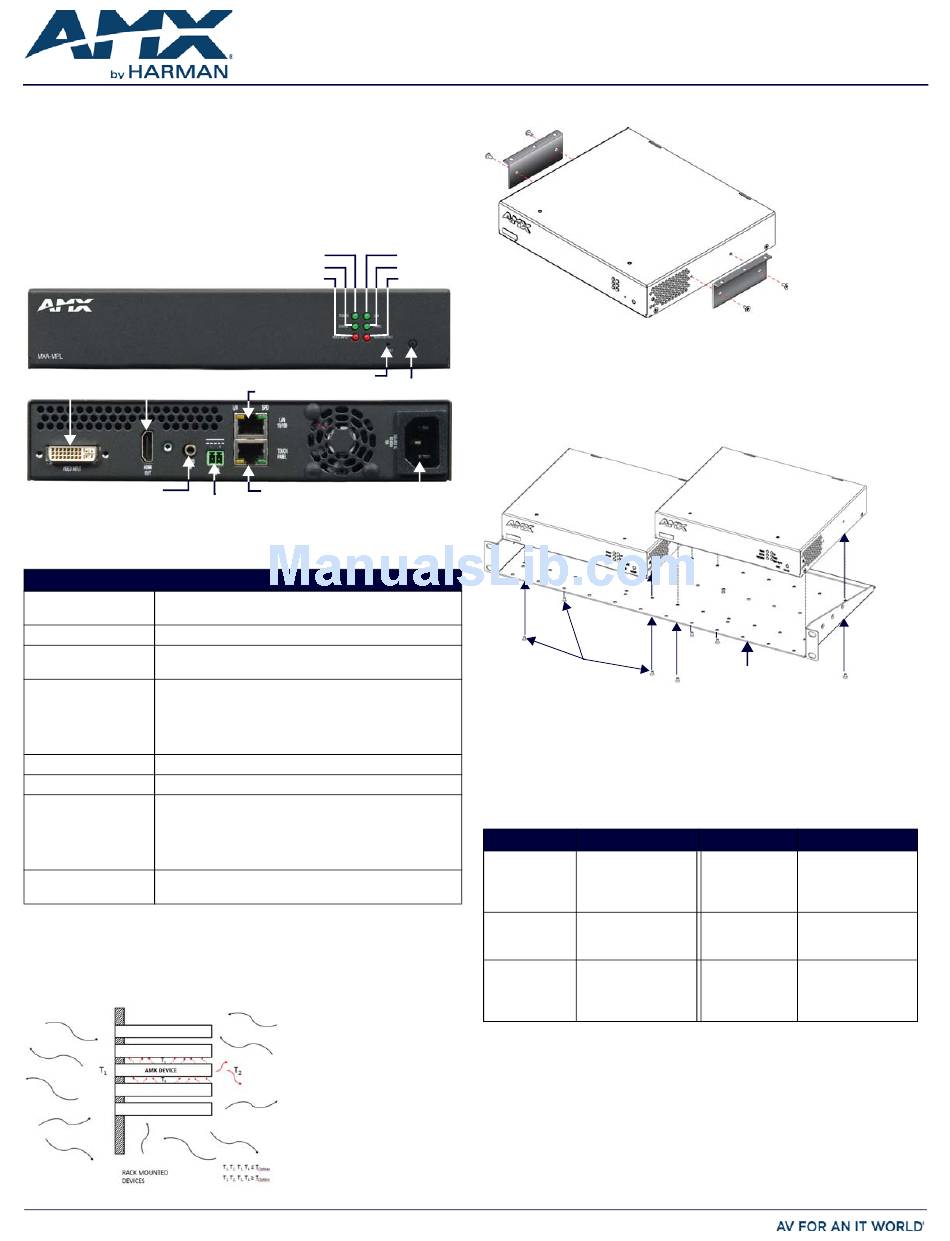

FIG. 1 MXA-MPL
Product Specif ications
MXA-MPL SPECIF ICATIONS
Power Requirements: • MXA-MPL only: 120VAC at 170ma (20W)
• MXA-MPL with touch panel: 120VAC at 410ma (50W)
Start-Up Inrush Current: 17.2A at 116.8VAC
Power Input: • IEC power cord connector
• 100-240V AC
Environmental: • Temperature (Operating): 32° F to 104° F (0° C to 40° C)
• Temperature (Storage): 4° F to 140° F (-20° C to 60° C)
• Humidity (Operating): 20% to 85% RH
• Humidity (Storage): 5% to 85% RH
• Power ("Heat") Dissipation: 232 BTU/hr
Dimensions: 1 9/16" x 8 1/4" x 7 3/16" (4 cm x 21 cm x 18.2 cm)
Weight: 2.80 lbs (1.27 kg)
Certifications: • UL
• FCC Part 15 Class A
• CE EN 55022 Class A
• EN 55024
• CB Scheme IEC 60950-1
Included Accessories: • MXA-MPL Installation Guide (93-5968-10)
• MIC AC Universal Power Cord (CA1090-131)
Installation
Temperature and/or cooling approaches that must be taken into consideration to
maintain the product within the specified operating temperature. FIG. 2 represents an
MXA-MPL in a typical rack mount installation, with full air circulation around the front
and back. In this case, the main concern is with heat building up between components,
possibly to levels that may affect device operation.
FIG. 2 HEAT CONVECTION IN RACK-MOUNTED DEVICES
Power LAN
Status Panel
Video Input
Video Output
Reset
Factory Reset
Ethernet In
Ethernet Out Power Input
(Pass-through to Touch Panel)
• 47-63Hz
• IC
• IEC/EN-60950
• UL
• RoHS
MXA-MPL
Modero X Series® Multi Preview Live
The MXA-MPL may also be put on a freestanding location or mounted either vertically
or horizontally under a table using two surface mounting brackets (FG525) (FIG. 3).
FIG. 3 INSTALLING TWO AC-SMB SURFACE MOUNT BRACKETS (FG525)
Installation in a rack requires an (optional) MPA-VRK Rack Mounting Tray (FG5968-30):
1. Select a position on the Rack Mounting Tray for the installation. The Rack
Mounting Tray contains screw holes to allow single or double MXA-MPL
installations.
2. Using the screws included with the MPA-VRK, install the screws to the bottom of
the MXA-MPL through the Rack Mounting Tray (FIG. 4). Use four screws for each
device, one at each corner.
Screws
FIG. 4 INSTALLING TWO MXA-MPL DEVICES IN A RACK MOUNTING TRAY
3. Connect the Rack Mounting Tray to the rack with the provided rack mount screws.
Connecting Video Input to the MXA-MPL
The MXA-MPL has a single DVI (12+5) female Multi-Format Video input connection on
the rear panel that supports the following video input types:
• HDMI • RGBHV
• DVI • S-Video
Each of these video inputs support specific video resolutions as follows:
INPUT TYPE RESOLUTION
Component • 720x480i@60Hz
• 720x480p@60Hz
• 720x576i@50Hz
• 720x576p@50Hz
Composite • ntsc
• pal-bghid
• pal-m
DVI • 640x480p@60Hz
• 800x600p@60Hz
• 1024x768p@60Hz
• 1280x720p@60Hz
AMX has a series of optional cables to make the connection between the Multi-Format
Video Input to specific video types easier.
• DVI to 5 BNC Male Cable 6 (FG10-2170-08)
• DVI to 3 RCA Male Cable 6 (FG10-2170-09)
• DVI to HD-15 Female Adapter (FG10-2170-13)
• DVI to S-Video Cable (FG10-2170-10) (
Note: When connecting an Enova DVX to an MXA-MPL, an HDMI cable adapter may be
needed to connect from the DVX's HDMI cable to the MXA-MPL Video Input port.

QUICK START GUIDE

MPA-VRK
• Composite
• Component
INPUT TYPE RESOLUTION
HDMI • 640x480p@60Hz
• 800x600p@60Hz
• 1024x768p@60Hz
• 1280x720p@60Hz
SVideo • ntsc
• pal-bghid
• pal-m
RGB/Graphics • 640x480p@60Hz
• 800x600p@60Hz
• 1024x768p@60Hz
• 1280x768p@60Hz
FIG. 5 .
)
