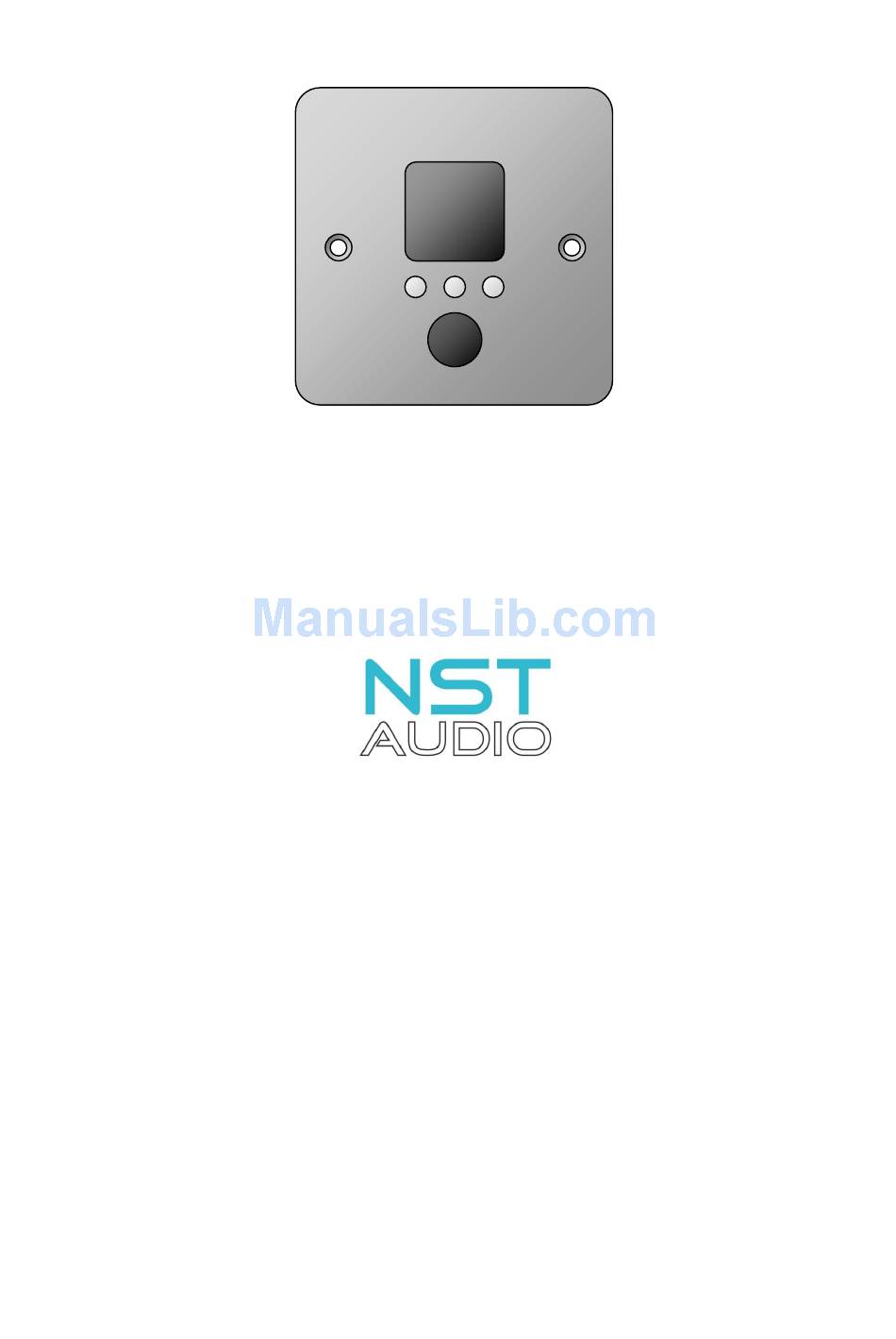

- Page 1 Venue Remote User Manual Revision 1.0 www.nstaudio.com © NST Audio Ltd 2018...
-
Page 2: Table Of Contents
Contents Cover Page Contents Page Thank you, Compatibility and Overview Specification and Installation Setting up the VR1 & Connecting to the VR1 VR1 Control Page Overview VR1 Control Page in Detail Physical VR1 Controls FAQs [Frequently Asked Questions] Contact... -
Page 3: Thank You, Compatibility And Overview
Thank You Thank you for choosing a product by NST Audio, for your application. Please take some time to read through this manual, so that you can obtain the best from the product. All NST products are carefully designed and engineered for cutting-edge performance and world-class reliability. If you would like further information about this, or any other NST product, please do not hesitate to contact us. -
Page 4: Specification And Installation
Specifications and Installation The VR1 wall panel control is designed to fit into a 45mm deep, standard single-gang UK electrical wall box, such as a light switch recess, and secured with two screws. - Height, depth and width specifications are shown below... - Page 5 ‘Virtual Rack’, as shown in the example below: To access the VR1’s control panel, simply double click / tap the VR1 device on the left. This will open the VR1’s control panel, to allow initial set-up or editing of an existing device.
-
Page 6: Vr1 Control Page Overview
This feature is useful for visually indentifying a VR1 remote if more than one is installed in the same venue. 3. Set Bitmap Button: Allows a custom picture or logo to be sent to the VR1, which will be displayed on power on and before standby mode is entered. -
Page 7: Vr1 Control Page In Detail
Add additional channels, from other devices, by repeating this process. All gain parameters contained within the Page Contents Window, will adjust simultaneously, from a single page shown on the VR1’s display. NOTE: Use the Min / Max gain options, to set an allowable minimum and maximum gain. -
Page 8: Physical Vr1 Controls
Physical VR1 controls Once the VR1 has been set-up, using D-Net, the panel is operated by using the three illuminated push buttons and the single rotary control. The left and right hand buttons move between the parameter pages available – The LCD screen will display arrows above these buttons, showing other pages are available to view. -
Page 9: Faqs [Frequently Asked Questions]
The VR1 wall panel appears to turn itself off when not being used – Is this normal? - Yes. The VR1 will go into standby mode, when it is not being used. The device is functioning perfectly normal, and will immediately ‘wake-... -
Page 10: Contact
Contact If you have any questions or comments about the information contained within this manual, or require further assistance, then please do not hesitate to contact us: www.nstaudio.com support@nstaudio.com www.facebook.com/nstaudio @nstaudio Thank you! The NST Audio team...
