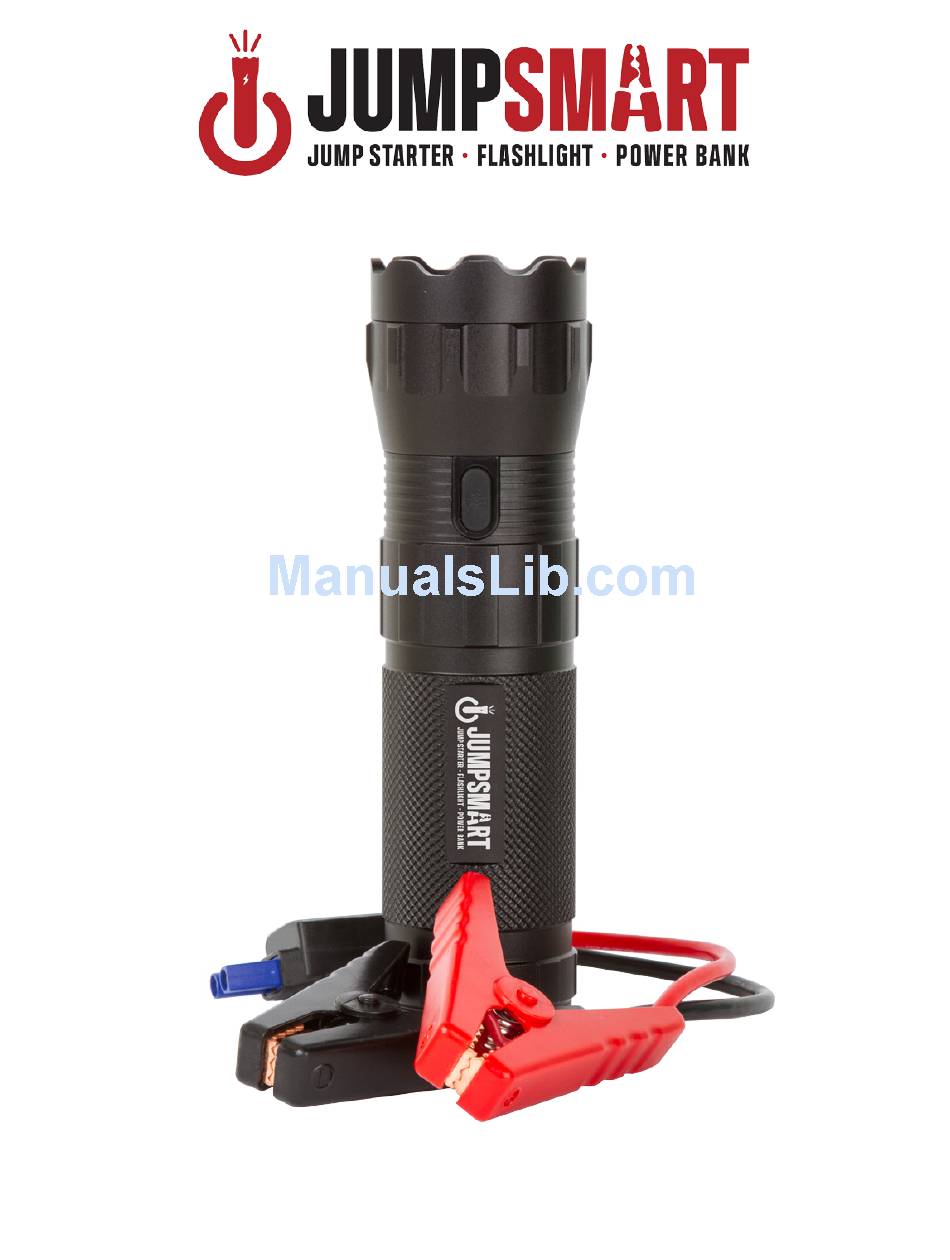

- Page 1 User Manual...

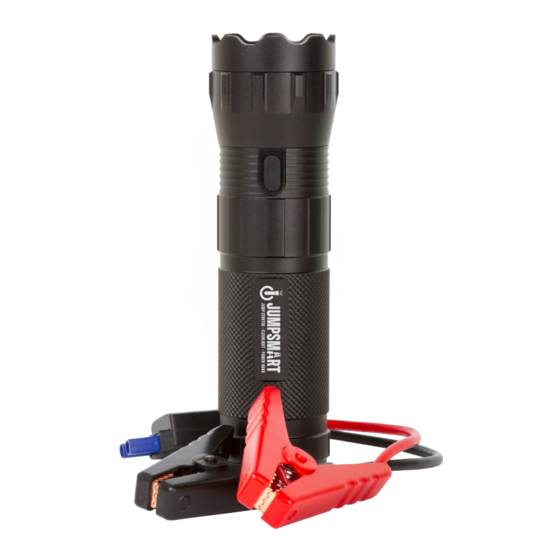

- Page 3 JumpSmart The Smart and Safe Way to Power-Up! The JumpSmart is a tool for everyday use and in emergency situations. Packed in a single unit is a high-powered, 4-mode LED flashlight, vehicle jump starter, and power bank with a USB charging port for use with virtually any vehicle, at home, in the office, and even outdoors! The durable JumpSmart heavy-duty carrying case makes traveling easy and...
-
Page 5: Table Of Contents
Table of Contents What’s Included ..............................2 General Safety Information ..........................3-5 Components ................................6 Operating Instructions How to Charge Your JumpSmart ....................7-9 How to Jump Start a Vehicle ......................10-12 How to Use Flashlight ........................13-14 How to Use the Power Bank ......................15-16 Technical Specifications .......................... -
Page 6: What's Included
What’s Included Heavy Duty Case Wall Charger Vehicle Charger JumpSmart LED Protective Smart Cable Flashlight, Power Bank Sleeve Safe Vehicle Jumper USB Charger, and Jump Starter © Limitless Innovations, Inc. -
Page 7: General Safety Information
General Safety Information Safety first. To prevent potential product damage, property damage, personal injury, or even loss of life, READ ALL safety warnings and this user manual in its entirety before using the JumpSmart. By using JumpSmart, you hereby agree that Limitless Innovations, Inc., an Illinois corporation and its affiliates (the “Company”) shall have no liability for any losses associated with property damage, personal injury or loss of life that are incurred by you or by any third party in connection with or relating in any manner whatsoever to your use of JumpSmart. - Page 8 General Safety Information (cont.) ⚠ It is recommended to recharge the JumpSmart every 3 months to ensure the battery is sufficiently charged and can effectively jump start a vehicle. ⚠ Do NOT expose the JumpSmart or any of its accessories to moisture, water, rain, and/or snow. ⚠...
- Page 9 General Safety Information (cont.) ⚠ Always wear protective gear such as glasses, gloves, and clothing when working with battery. ⚠ In the unlikely event a battery leak occurs, avoid contact with skin or eyes. Rinse immediately with water and seek medical attention. ⚠...
-
Page 10: Components
Components Safety Check Indicator Lights Safe Vehicle Smart Cable Jumper Cables LED Flashlight Power Button Durable Aluminum Knurled Casing LED Flashlight JumpSmart Charging Port (Input) Main Power Switch Charging Port (Output) Battery Level Indicator Lights Jump Starter Port © Limitless Innovations, Inc. -
Page 11: Operating Instructions
Operating Instructions HOW TO CHARGE JUMPSMART - SAFETY INFORMATION Safety first. To prevent potential product damage, property damage, personal injury, or even loss of life, READ ALL safety warnings located in the “Safety Information” section on pages 3-5 of the user manual before attempting to operate the JumpSmart and its accessories. -
Page 12: How To Charge Your Jumpsmart
Operating Instructions HOW TO CHARGE JUMPSMART IN A HOME Prior to charging, locate the main power switch on the back panel of the JumpSmart and flip to the “ON“ position. Plug the barrel connector end of the wall charger into the JumpSmart charging port input located on the back panel of the JumpSmart. - Page 13 Operating Instructions HOW TO CHARGE JUMPSMART IN A CAR Prior to charging, locate the main power switch on the back panel of flash light and flip to the “ON“ position. Plug the barrel connector end of the Vehicle Charger into the JumpSmart charging port input located on the back panel of the JumpSmart.
- Page 14 Operating Instructions HOW TO JUMP START A VEHICLE - SAFETY INFORMATION Safety first. To prevent potential product damage, property damage, personal injury, or even loss of life, READ ALL safety warnings located in the “Safety Information” section on pages 3-5 before attempting to operate the JumpSmart and its accessories. HOW TO JUMP START A VEHICLE - NOTES Safety first.
-
Page 15: How To Jump Start A Vehicle
Operating Instructions HOW TO JUMP START A VEHICLE Prior to jumping a vehicle, locate the main power switch on the back panel of the JumpSmart and flip to the “ON“ position. Plug the Smart Cable into the jump starter port located on the back panel of the JumpSmart. - Page 16 Operating Instructions HOW TO JUMP START A VEHICLE If the vehicle does not start, wait at least 60 seconds before trying again. Do not attempt to jump start the vehicle more than 3 times. Once the vehicle has been successfully started, disconnect the Smart Cable from the JumpSmart.
- Page 17 Operating Instructions HOW TO USE FLASHLIGHT - SAFETY INFORMATION Safety first. To prevent potential product damage, property damage, personal injury, or even loss of life, READ ALL safety warnings located in the “Safety Information” section on pages 3-5 of the user manual before attempting to operate the JumpSmart and its accessories.
-
Page 18: How To Use Flashlight
Operating Instructions HOW TO USE FLASHLIGHT Prior to using the LED flashlight, locate the main power switch on the back panel of the JumpSmart and flip to the “ON“ position. Double click the LED flashlight power button to turn the flashlight ON. The flashlight is now in HIGH BEAM MODE. - Page 19 Operating Instructions HOW TO USE THE POWER BANK - SAFETY INFORMATION Safety first. To prevent potential product damage, property damage, personal injury, or even loss of life, READ ALL safety warnings located in the “Safety Information” section on pages 3-5 of the user manual before attempting to operate the JumpSmart and its accessories.
-
Page 20: How To Use The Power Bank
Operating Instructions HOW TO USE THE POWER BANK Prior to connecting any USB chargeable device, locate the main power switch on the back panel of the JumpSmart and flip to the “ON“ position. Connect the USB end to the USB charging port located on the back panel of the JumpSmart. - Page 21 Product Specifications Dimensions 8.5” x 2.0” x 2.5” 215mm x 55mm x 63mm Weight 1.30lbs 580g Battery Capacity 10000mAh / 37000mWh LED Flashlight 150M Power Jump Starter Gas: 3.0L and Below Diesel: 2.0L and Below Capacity Battery Type High-Grade Ratio Polymer Lithium Ion Battery Input DC 12-15V 1A (Adapter Output DC 15V 1A, Vehicle Charger DC 12V 1A) Self Consumption...
-
Page 22: Jumpsmart Limited Warranty
JumpSmart Limited Warranty Subject to the exclusions contained below, Limitless Innovations, Inc. (“the Company”) warrants JumpSmart Products to be free from defects in materials and workmanship under normal consumer usage for a period of one (1) year from the date of original purchase, (the “JumpSmart Limited Warranty”). - Page 23 JumpSmart Limited Warranty (cont.) Who is Covered? This warranty extends only to the first consumer purchaser and is not transferable to any third party nor applicable to any subsequent owner other than the first consumer purchaser. What Will JumpSmart Do? If Limitless Innovations, Inc.
-
Page 24: Jumpsmart Limited Warranty
JumpSmart Limited Warranty (cont.) What Other Limitations Are There? ANY WARRANTY CLAIM SHALL BE LIMITED TO LIMITLESS INNOVATIONS, INC.’S COST OF MATERIAL ON THE JUMPSMART PRODUCT DETERMINED TO HAVE A MANUFACTURER’S DEFECT. IN NO EVENT SHALL LIMITLESS INNOVATIONS, INC. BE LIABLE TO ANY PARTY FOR ANY LABOR COSTS OR ANY OTHER DIRECT, INDIRECT, CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES, WHETHER IN CONTRACT OR TORT AND LIMITLESS INNOVATIONS, INC. -
Page 25: Consumer Rights & Arbitration
Consumer Rights & Arbitration Agreement YOUR USE OF JUMPSMART SHALL BE GOVERNED BY THIS CONSUMER RIGHTS AND ARBITRATION AGREEMENT, this (“AGREEMENT”). THIS AGREEMENT AFFECTS YOUR LEGAL RIGHTS AND REMEDIES BY PROVIDING THAT DISPUTES BETWEEN YOU AND THE MANUFACTURER OF THIS PRODUCT, LIMITLESS INNOVATIONS, INC., AN ILLINOIS CORPORATION (“COMPANY”), MUST BE RESOLVED THROUGH BINDING ARBITRATION, RATHER THAN IN A COURT. -
Page 26: Consumer Rights & Arbitration
Consumer Rights & Arbitration Agreement (cont.) Arbitration Procedures Before commencing any arbitration proceedings under this Agreement, you must first present the claim/dispute to Company by calling 855-843-4828, providing requested contact information and allowing Company the opportunity to resolve it. If your claim or dispute is not resolved within sixty (60) days, you may commence arbitration proceedings in accordance with the terms of this Agreement. - Page 27 © Limitless Innovations, Inc.
- Page 28 All rights reserved. JumpSmart is a trademark of Limitless Innovations, Inc. Design and specifications subject to change without notice. All other trademarks included herein are property of their respective owners. Cable adapters sold separately. Electronic devices and automobiles not included. Made in China (855) 843-4828 Sales@LimitlessInnovations.com...
