Aqua Logic, Inc
9558 Camino Ruiz.
San Diego, CA 92126
PH: 858.292.4773 Fax: 858.292.0537
Email: info@aqualogicinc.com
Website: www.aqualogicinc.com

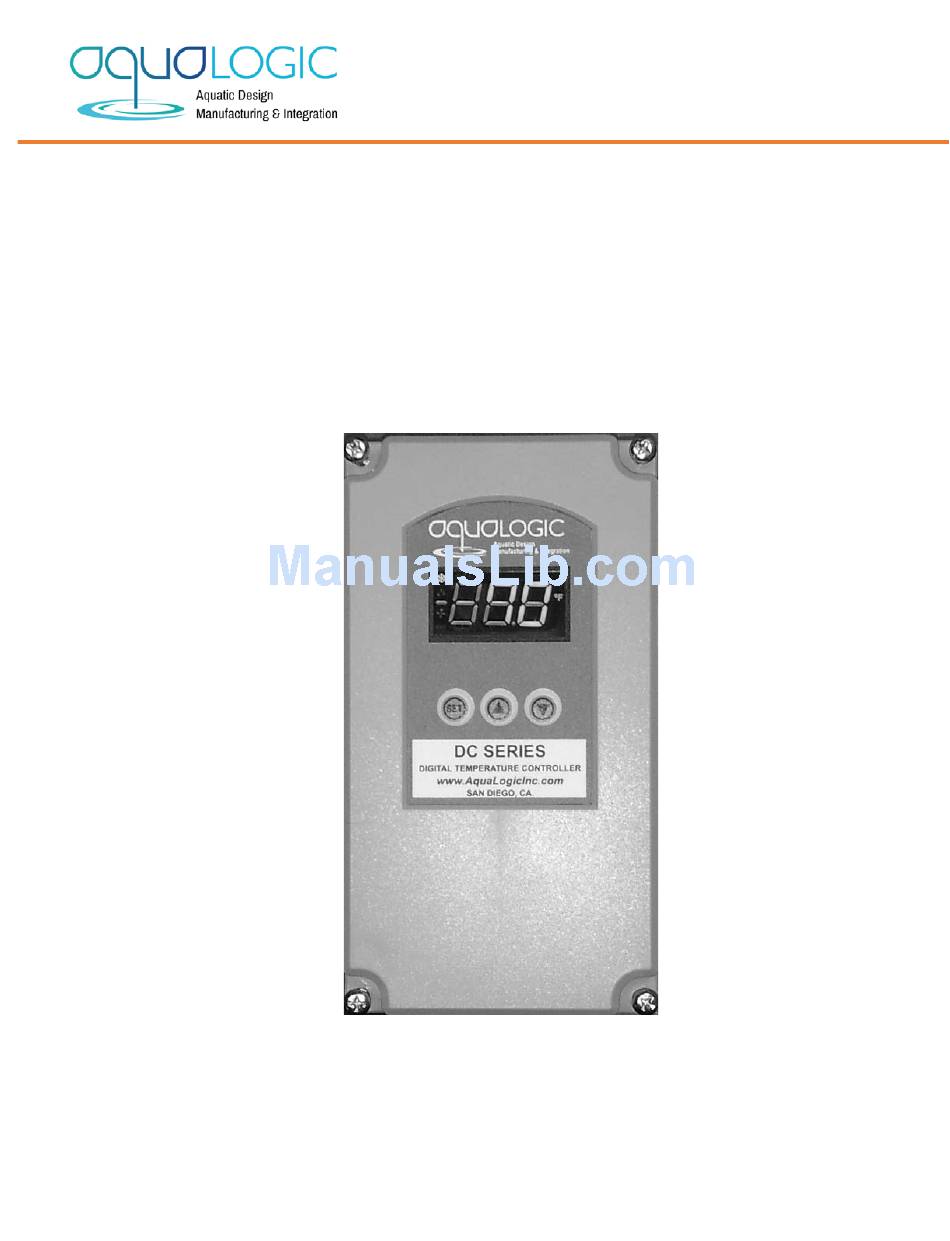

DC SERIES SINGLE STAGE DIGITAL TEMPERATURE CONTROL INSTRUCTION MANUAL
Model No. DCS-TI
Thank you for purchasing our digital temperature controller. It is designed to provide on/off control for
commercial heating and cooling applications. It is equipped with a red LED display that provides a
constant readout of the water temperature, and a touch keypad that allows the user to easily and
accurately select the setpoint temperature and differential. The control enclosure has an NEMA 4X
rating but, if installed outdoors, it should be protected against the direct weather.
©Aqua Logic, Inc. 2017
Page 1 of 5
Advertisement
Related Manuals for Aqua Logic DCS-TI
Summary of Contents for Aqua Logic DCS-TI
- Page 1 Website: www.aqualogicinc.com DC SERIES SINGLE STAGE DIGITAL TEMPERATURE CONTROL INSTRUCTION MANUAL Model No. DCS-TI Thank you for purchasing our digital temperature controller. It is designed to provide on/off control for commercial heating and cooling applications. It is equipped with a red LED display that provides a constant readout of the water temperature, and a touch keypad that allows the user to easily and accurately select the setpoint temperature and differential.
- Page 2 The display should read correct water temperature readout. See page 3 ”DC SINGLE STAGE TEMPERATURE CONTROL PROGRAMMABLE PARAMETERS TABLE” to change other settings To adjust other parameters in the control contact Aqua Logic, Inc. for help. PH: 858.292.4773 or email: info@aqualogicinc.com ©Aqua Logic, Inc.
-
Page 3: Parameter Descriptions
In normal operation, the probe temperature will be shown. In case of alarm press the “SET” and the “DOWN” ▼ arrow buttons at the same time to quit the alarm. An error messages will be shown: • Er – Memory error • -- Shorted –circuited probe error • oo- Open probe ©Aqua Logic, Inc. 2017 Page 3 of 5... -
Page 4: Specifications
Weight: 2.5 lbs (1134 g). Front Protection: NEMA 4X (IP66). Agency Approvals: CE, UL, cUL. Controller power rating. Model Nom. Input SPDT NO Output DCS-TI 110-240 VAC 2 HP @ 240 VAC / 20A RL ©Aqua Logic, Inc. 2017 Page 4 of 5... - Page 5 Logic will repair or replace the product at our discretion and return ship the unit, Our liability is limited to the cost of defective materials. In no case will Aqua Logic assume liability for consequential damage resulting from any failure. Not covered by this warranty are damage due to corrosion, abuse, accidental, alterations, unreasonable or improper use.
