Visit our website to see more of our products.
www.AquaLogicInc.com
Inline Titanium heaters
1 kW thru 60 kW
TLC Trimline Cyclone Drop-
in coil water chillers -1/4
and 1/3 HP
© 2017 Aqua Logic, Inc.
Safety water flow
cutout switches
1" thru 3" pipe
Delta-Star inline water
chillers. -1/4 thru 1-1/2 HP
Aqua Logic, Inc.
9558 Camino Ruiz.
San Diego, CA. 92126
PH: 858.292.4773
email: info@aqualogicinc.com
www.AquaLogicInc.com
Rev 1
DC SERIES SINGLE STAGE DIGITAL TEMPERATURE
CONTROL INSTRUCTION MANUAL
Model No. DC115S, DC115S-20 and DC230S
Thank you for purchasing our digital temperature controller. It is
designed to provide on/off control for commercial heating and cooling
applications. It is equipped with a red LED display that provides a
constant readout of the water temperature, and a touch keypad that
allows the user to easily and accurately select the setpoint
temperature, differential and heating / cooling modes of operation.
The control enclosure has an NEMA 4X rating but, if installed
outdoors, it should be protected against the direct weather.

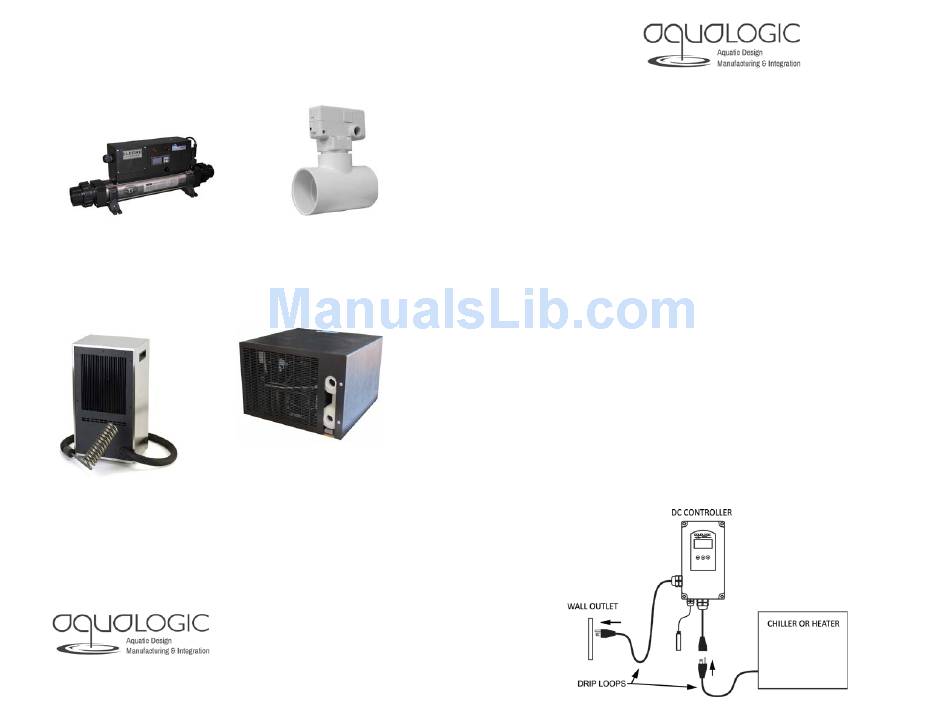

Installation.
1. Mount control on a wall or any vertical surface that water
can't splash on it.
2. Plug-in the 115V (230V) control female plug from into the
male plug of the chiller or heater.
3. Plug-in the 115V (230V) control male plug into wall outlet.
4. Install the titanium temperature sensor in your tank or sump.
Note: For your safety, you must plug the control into a dedicated 15 or 20
Amp. GFIC (Ground Fault Interruption Circuit) circuit. When installing the
control in a wet area make sure to have the power cords with drip loops so
water does not collect around the electrical connections.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Aqua Logic DC115S
Summary of Contents for Aqua Logic DC115S
- Page 1 DC SERIES SINGLE STAGE DIGITAL TEMPERATURE CONTROL INSTRUCTION MANUAL Model No. DC115S, DC115S-20 and DC230S Thank you for purchasing our digital temperature controller. It is designed to provide on/off control for commercial heating and cooling applications. It is equipped with a red LED display that provides a...
-
Page 2: Limited Warranty
Press the “SET” button is still under warranty, Aqua Logic will repair or replace the product at again and the pre-programmed set point our discretion and return ship the unit, Our liability is limited to the temperature will be displayed. -
Page 3: Specifications
See page 3 ”DC SINGLE STAGE TEMPERATURE CONTROL DC230S 230 / 1 Up to 1-1/2 or 2000 PROGRAMMABLE PARAMETERS TABLE” to change other settings To adjust other parameters in the control contact Aqua Logic, Inc. for help. PH: 858.292.4773 or email: info@aqualogicinc.com... -
Page 4: Parameter Descriptions
DC SINGLE STAGE TEMPERATURE CONTROL PARAMETER DESCRIPTIONS PROGRAMMABLE PARAMETERS TABLE SP = Set Point. Temperature desired to regulate the machine. Can vary from r1 to r2. Factory Note r0 = Differential. Heating: If temperature is ≥ SP then output is OFF. If Parr.
