Wiring Instructions: The receiver is compatible with standard AC tubular motors operating on the same voltage as the
receiver. When connecting this receiver, local building codes should be followed together with the following protocol:
1.
Power from the building supply must be disconnected
whenever service or installation is being performed.
2.
Standard practices should be followed to discharge
static charges from all components as well as from
the installer before touching the open unit or
connecting components. Receiver contains static
sensitive devices.
3.
Flexible wires must be used for connection to
receiver.
4.
No tension should be on wires when connected to the
terminal strip.
5.
Make sure that all Earth (Ground) wires are
connected as shown.
6.
Do not puncture the plastic housing.
Motor Connection
Green (E) – Ground
White (N) – Neutral
Black (L) – Line
Red (R) – Reverse
TO
← E
← N
MOTOR
← L
← R
TO POWER
← E
SUPPLY
← N
← L
3/29/2012

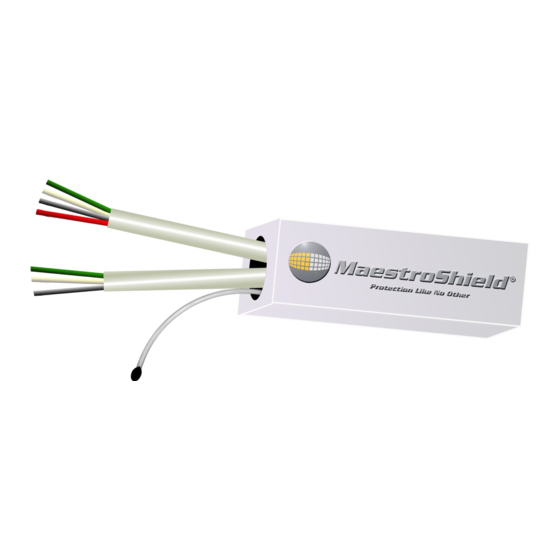

Mini-Receiver Wiring Procedures
Power Supply
Green (E) – Ground
White (N) – Neutral
Black (L) – Line
Antenna
YES
WIRING
EL03-10MR10
EL03-12
WIRING
NO
