STRAIGHT SHAFT MODEL - #32308
Please read all instructions prior to operating the No-Brainer quick load head. We think you will find that the No-
Brainer is the easiest trimmer head you'll ever use.
To replace the string: Simply press the button and slide the precut string into place from either side. That's it. The string
is locked into place as the head starts spinning.To prolong string life, use the outside inch or two of the trimmer string as
it does the actual cutting. The No-Brainer™ head comes with precut 16.5", .095" diameter trimmer line.
WARNING!
1. Misuse of this product can result in serious injury or death.
2. String trimmers can throw loose objects with tremendous force. Any exposed body parts are likely to be
injured if this occurs. Always protect all exposed body parts with personal protective equipment including,
but not limited to, eye, face, neck, hand leg, foot and body protection.
3. Read owner's manual provided with your string trimmer and follow the instructions concerning safe use and
maintenance.
4. Always inspect area to be trimmed and remove any lose debris such as wire, rocks or stones, or any other
object that may be thrown by trimmer.
5. DO NOT operate trimmer within 50 feet of persons or pets.
6. Always stop engine and remove spark plug wire when replacing string.
7. Always inspect for cracked or damaged equipment before use. Replace any parts if needed.
8. Always stop trimmer and inspect for damage:
a. if you strike hard objects such as brick, concrete or
b. Anytime you feel unusual vibration. Replace damaged parts.
INSTALLATION

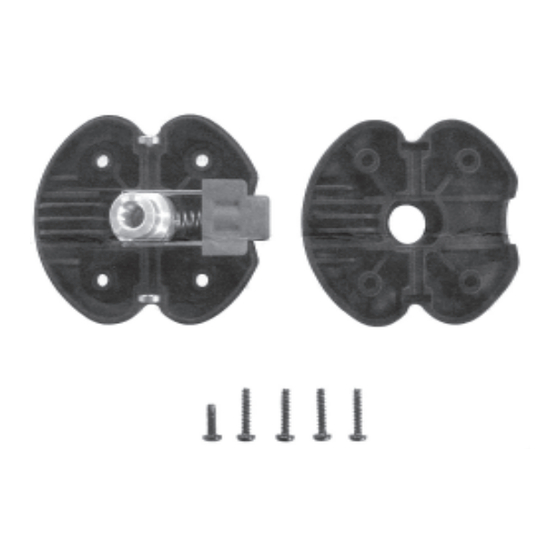

Steps to change the center arbor of the No-Brainer quick load head.
1. Remove four corner long screws on the bottom with a
supplied "L" shaped T-20 Torx tool.
2. Remove one short screw from the center of the head.
3. Pull two halves of the head apart with the arbor facing up.
4. Using your fingers to hold the button assembly in position,
remove the arbor from the head half.
5. Put the new arbor into the bottom head half.
6. Join the two halves of the head together with the screw holes facing up towards you.
Re-install the four corner long screws and the one short self tapping screw with the "L" shaped T-20 Torx tool
provided.
NO-BRAINER QUICK LOAD TRIMMER HEAD
SAFETY WARNING / INSTALLATION INSTRUCTIONS
