JVC LT-24C360 Quick Start Manual

Quick Start Guide

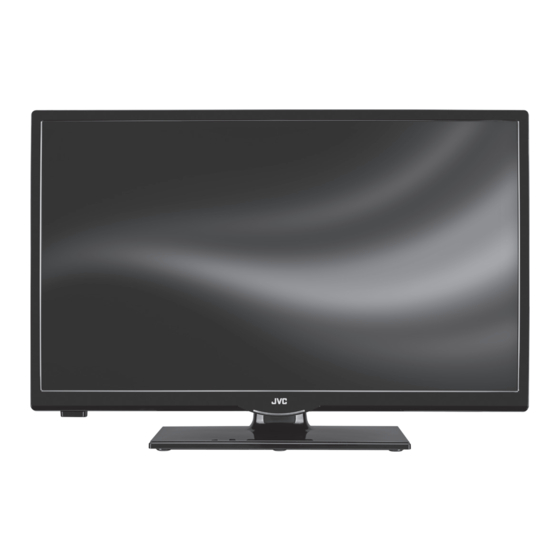

24" HD-Ready LED TV
LT-24C360(B)
Thank you
for purchasing your new JVC TV.
Your new TV incorporates the latest technology to enhance your
viewing experience. We would suggest that you allow about 20 mins
for initial setup.
Please follow this guide for a successful first time installation.
The latest eco-friendly power-saving technology will switch off
the TV if device is left on and idle for 4 hours. Please refer to "Auto
Standby" under the "Time Settings" section of the instruction
manual for more detail.
1
Unpacking
Remove all packaging from the unit. Retain the packaging.
If you dispose of it please do so according to any local regulations.
2
Operating Your Remote Control
1. Remove the screw and open the battery compartment.
2. Insert two AAA size batteries. Make sure to match
the (+) and ( - ) ends of the batteries with the (+) and
( - ) ends indicated in the battery compartment.
3. Replace the battery compartment cover, make sure it
clicks into place then replace the screw.
LT-24C360(B)_QSG.indd 1
TV R emote Control/ Instruction Manual
AAA Batteries x2
TV Stand Quick Start Guide
3
Installing the Base Stand
1. Ensure the TV is switched off and not connected to the mains power supply.
2. Lay the TV down on a flat surface ideally on the edge of a table so the base of the TV slightly overhangs the edge of the table, with the back side
facing up. Please make sure a soft cushioned material (such as a dry bath towel or thick piece of foam) is placed beneath the screen.
3. To install the TV stand, slide the TV stand into the slot on the bottom of the TV. Make sure it clicks into position.
For wall mounting instructions please refer to your Instruction Book.
VGA
SPDIF
SCART
Cushioned Table
material
The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object,
or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because
the screen could crack.
4
Connecting the Aerial and Turning on the TV
1. Connect one end of the RF coaxial cable to the aerial socket on the wall and the other end of the cable to the ANT socket on
the back of your TV.
2. Plug the TV into a mains socket and switch on at the mains.
3. In standby mode, press the button on the remote control to turn the TV on. The red LED indicator will flash for a few
seconds then the TV will switch on.
VGA
SPDIF
SCART
• Do not connect the TV to the mains supply until you have completed all the connections.
• Always disconnect the TV from the mains socket when not in use for a long period of time.
• The button on the remote control is only used for switching the TV into standby, it does not disconnect the TV from the mains power.
To completely disconnect the mains power, please remove the mains plug from the mains socket.
VGA
SPDIF
SCART
VGA
SPDIF
RF coaxial cable
(not included)
SCART
17/10/2016 12:40
