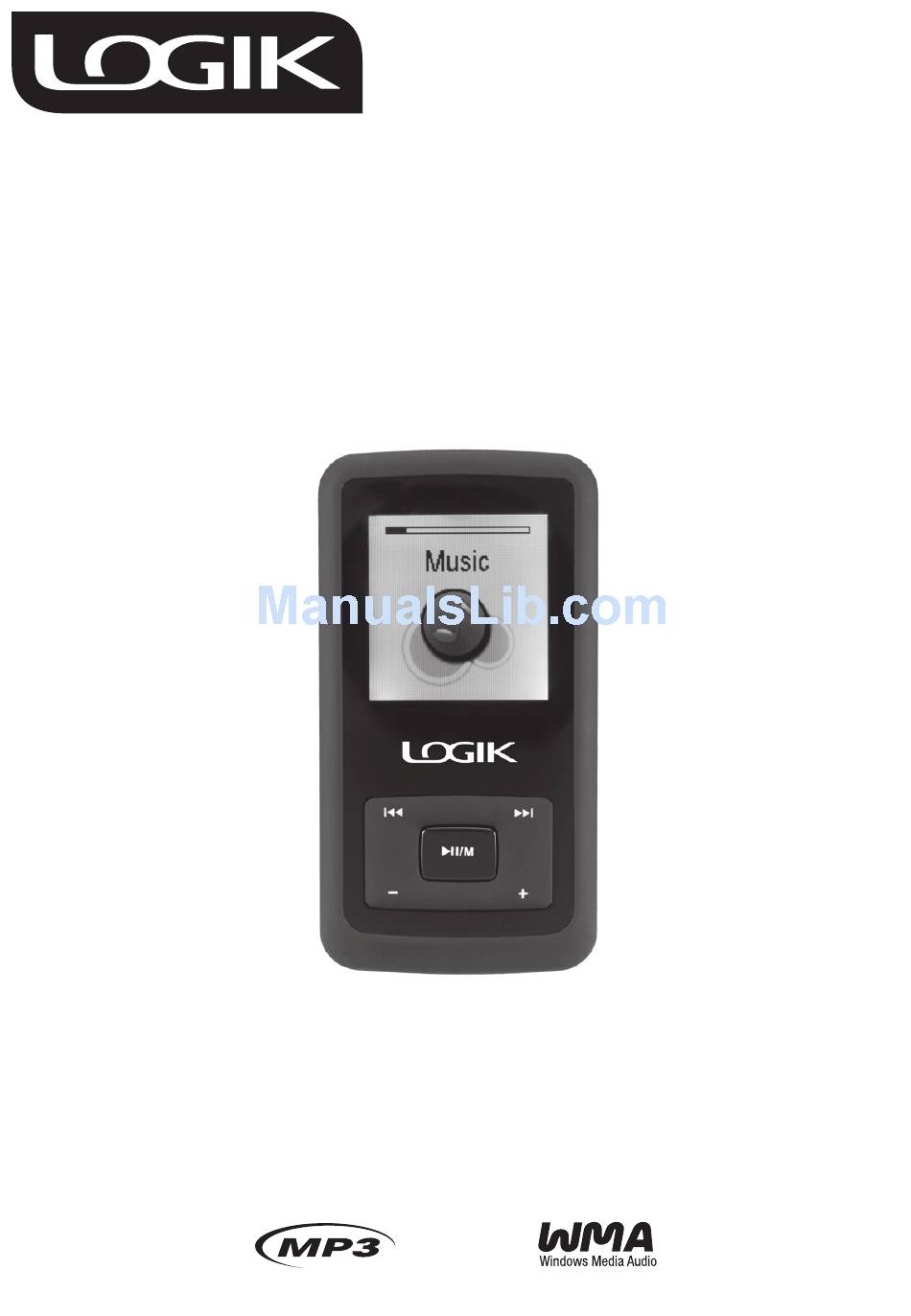

- Page 1 L2GMP409 L4GMP409 L8GMP409 2GB/4GB/8GB MP3 Player INSTRUCTION MANUAL...
- Page 2 Congratulations on the purchase of your new Logik MP3 Player. It has many exciting features to make your listening to music experience more enjoyable. We recommend that you spend some time reading this instruction manual in order to fully understand these features.
-
Page 3: Table Of Contents
Contents Product Overview ....................5 Unpacking the MP3 Player ......................5 Features ............................5 Identification of Parts and Controls ..................6 Connecting to a Computer ..................7 System Requirements ......................... 7 Installing the Driver for Windows 98 SE ................7 Loading Files from a Computer to the MP3 Player ............7 Disconnecting the USB Cable .................... - Page 4 Voice Recording Playback ..................19 E-BOOK Viewing....................20 Customising Settings ...................21 Language ............................21 Play Mode ............................21 Record Settings ...........................21 Contrast ............................22 Timer Off ............................22 Reset ..............................22 Deleting Files and Folders ...................23 About ........................23 Converting Video To MTV Format ...............24 Hints and Tips......................25 Specifications ......................26 Safety Warnings ....................27...
-
Page 5: Product Overview
Product Overview Unpacking the MP3 Player Remove all packaging from the MP3 player. Retain the packaging. If you dispose it please do so according to local regulations. The following items are included: MP3 Player Earphones USB Cable Installation CD with part number: part number: Instruction Manual... -
Page 6: Identification Of Parts And Controls
Identification of Parts and Controls Earphones jack USB cable connection port Neck strap holder A-B/REC button button • Press and hold to turn the MP3 player on/off • Exit and return to the previous menu RESET hole/button Display screen Next, Fast forward button button •... -
Page 7: Connecting To A Computer
Connecting to a Computer System Requirements Your computer system must meet the following requirements: • Pentium 200MHz or above • Microsoft Windows 98SE / 2000 / ME / XP / Vista® • 120MB of available hard disk space • USB port supported •... -
Page 8: Disconnecting The Usb Cable
Disconnecting the USB Cable After completing the file transfer, disconnect the USB cable in the following way: Safely Remove Hardware” in the taskbar on the Double click the green arrow “ bottom right of the window. USB Mass Storage Device” and click “Stop”. Select “... -
Page 9: Basic Operation
Basic Operation Power On/Off the MP3 Player Make sure the battery is sufficient and the earphones are connected. • Press and hold the button to power on. • Press and hold the button to power off. Resetting the MP3 Player If the user interface is not responding, you will need to use a pointed object to insert into the RESET hole/button to re-initialise the system of your MP3 player. -
Page 10: Music Playback
Music Playback Playing Music Make sure the battery power level is sufficient and the earphones are connected correctly. Press and hold the button to enter the main menu. buttons to select Music. Press the Press the button to display the following screen. Remaining battery power indicator Music indicator Repeat mode indicator... -
Page 11: Displaying Lyrics
Adjusting the Volume • Press the button to increase / decrease the volume. A-B Repeat • A desired section of a track can be played back repeatedly by using the A-B repeat. While a track is playing, press the A-B/REC button to set the beginning point of the section. -
Page 12: To Set Repeat
To Set Repeat The repeat mode setting enables you to play the tracks in a desired order. Press the button while listening to a track. The Menu Music Setup Menu appears on the screen. Press the Repeat buttons to select Repeat. Equalizer Play Rate File... -
Page 13: To Set 3D Sound Effect
Press the button to enter the EQ Menu. Press the buttons to select the desired equalizer from Normal Normal, Pop, Rock, Classic, Jazz, Ultra Bass and Custom. Press the button to confirm and exit. Rock Classic Jazz Ultra Bass Custom To customise EQ, select Custom, and press the button. -
Page 14: To Set Play Rate
To Set Play Rate Press the button while listening to a track. The Menu Music Setup Menu appears on the screen. Press the buttons to select Play Rate. Repeat Equalizer Play Rate File Press the button to enter the Play Rate Menu. Press P-Rate buttons to select a play rate from 1.00X, 1.14X, 1.00X... -
Page 15: Photo Playback
Photo Playback This MP3 player supports the playback of pictures in JPEG and BMP format. Press and hold the button to enter the main menu. buttons to select Photo and then press Press the button. Press the buttons and then press the button to access the followings. -
Page 16: Movie Playback
Movie Playback This MP3 player supports the playback of converted videos in MTV format. Press and hold the button to enter the main menu. buttons to select Movie. Press the Press the button to display the following screen. Remaining battery power indicator Movie indicator Repeat mode indicator Volume indicator... -
Page 17: Entering The Movie Setup Menu
Entering the Movie Setup Menu Press the button to stop the playback. Press the button again to enter the Movie Setup Menu Menu and select Repeat. Repeat Press the button to enter the Movie Repeat Menu. Repeat Press the buttons to select the desired mode as Normal below and then press the button to confirm and... -
Page 18: Voice Recording
Voice Recording In Mic. Record mode, you can make voice recordings using the integrated microphone. You also can directly press and hold A-B/REC button to start recording in Music or Voice mode. Press and hold the button to enter the main menu. buttons to select Mic. -
Page 19: Voice Recording Playback
Voice Recording Playback All recordings can be played in the voice mode. Press and hold the button to enter the main menu. buttons to select Voice. Press the Press the button to display the following screen. Remaining battery power indicator Music indicator Repeat mode indicator Volume indicator... -
Page 20: E-Book Viewing
E-BOOK Viewing This MP3 player only supports the playback of files in TXT format. Other formats must be saved as TXT formats before transfering to the MP3 player. Press and hold the button to enter the main menu. buttons to select E-BOOK. Press the Press the button. -
Page 21: Customising Settings
Customising Settings The MP3 player settings can be customised by accessing the Settings Menu. The Settings Menu consists of several items where various functions can be selected concerning language, play mode, recording, contrast, time off, storage, reset, etc. Press and hold the button to enter the main menu. -
Page 22: Contrast
Contrast Contrast Press the buttons to adjust the contrast of the screen display. Timer Off Press the buttons to select the desired mode as below and then press the button to confirm and exit. Stop Off • Timer Off To set the shutdown time. The MP3 player will power off Stop Off automatically if the MP3 player is inactive for the set period Sleep Off... -
Page 23: Deleting Files And Folders
Deleting Files and Folders In the Delete mode, you can delete the files and folders stored on your MP3 player without a computer. Press and hold the button to enter the main menu. buttons to select Delete. Press the Press the button. -
Page 24: Converting Video To Mtv Format
Converting Video to MTV Format This MP3 player supports the playback of videos in MTV format. Other formats (AVI, WMV, MEPG1, Quick Time, MPEG2, RealMedia, MPEG4, 3GP) must be converted to MTV format. The “MTVVideo Converter” is supplied on the CD to enable you to convert the other formats to MTV format. -
Page 25: Hints And Tips
Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. Cannot power on • The battery may be exhausted. Recharge the battery. Files cannot be • Check if the driver is installed correctly in the computer. downloaded •... -
Page 26: Specifications
Specifications Model L2GMP409 / L4GMP409 / L8GMP409 Audio Format MP3 / WMA Photo Format JPEG / BMP Video Format MP3 bit Rate 8Kbps~320Kbps WMA bit rate 5Kbps-320Kbps S/N rate ≥80dB Distortion <0.2% Power out 2*1mW (16 ohm load) Size 74 x 40 x 11.5mm Weight <40g (without accessories) -
Page 27: Safety Warnings
Safety Warnings • Retain the manual. If you pass the unit onto a third party make sure to include this manual. Damage • Please inspect the unit for damage after unpacking. • Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off and consult your dealer. - Page 28 Note: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number USB Cable 38-012-10300019 Earphones 50-110-31960119 Installation CD with Instruction Manual 54-871-90000509 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
