Warwick Rockboard MOD 1+2 Manual

The RockBoard® MODs offer you the one solution you will ever need to organize all the connections to and from your RockBoard®.
Fitting all RockBoard®'s, except the Duo 2.1, each MOD has various cable connections to fit a wide variety of needs as a convenient 'thru box'.
RockBoard® MODs allow you to hook up your pedals permanently underneath your board and have a central access point for your instrument,
amp and power supply. You are using TRS, XLR, MIDI or USB in your setup? We've got you covered!
The RockBoard® MODs provide you with all the connections you'll need.
Installation is as easy and convenient as it gets:
Depending on your choice, the RockBoard® MODs offer different options, but let's start with the ones they have in common:
• TRS In/Output: You can use these for MONO, STEREO or Balanced Inputs or Outputs, Effects Loops, Looper Switcher and
basically anything that uses a 1/4" jack.
• IEC In/Output: This allows you to connect the AC IEC of your multi-power supply.
1
Here are the connections only found in MOD1:
• XLR In/Output: These are implemented for any instrument going through a DI straight to mixing board or
players implementing their FX-pedals for recording to connect to their Audio Interface
• DC In/Output: Some multi-Power supplies use an external power adapters instead of an AC IEC cable,
like the RockBoard® Power Block or the MXR M238 ISO-Brick

MOD1 Connections:

5x TRS In/Output
2
And here the connections unique to MOD2:
MIDI Thru: These two allow you to route MIDI commands to and from your pedalboard via an audio interface to your PC or Mac.
•
You can Program setups and scenes comfortably from your workstation and load them into your MIDI capable devices
on your RockBoard®.
• USB Thru: Just like with MIDI, you can control and save/load presets without removing your FX pedals from your board.

MOD2 Connections:

5x TRS In/Output

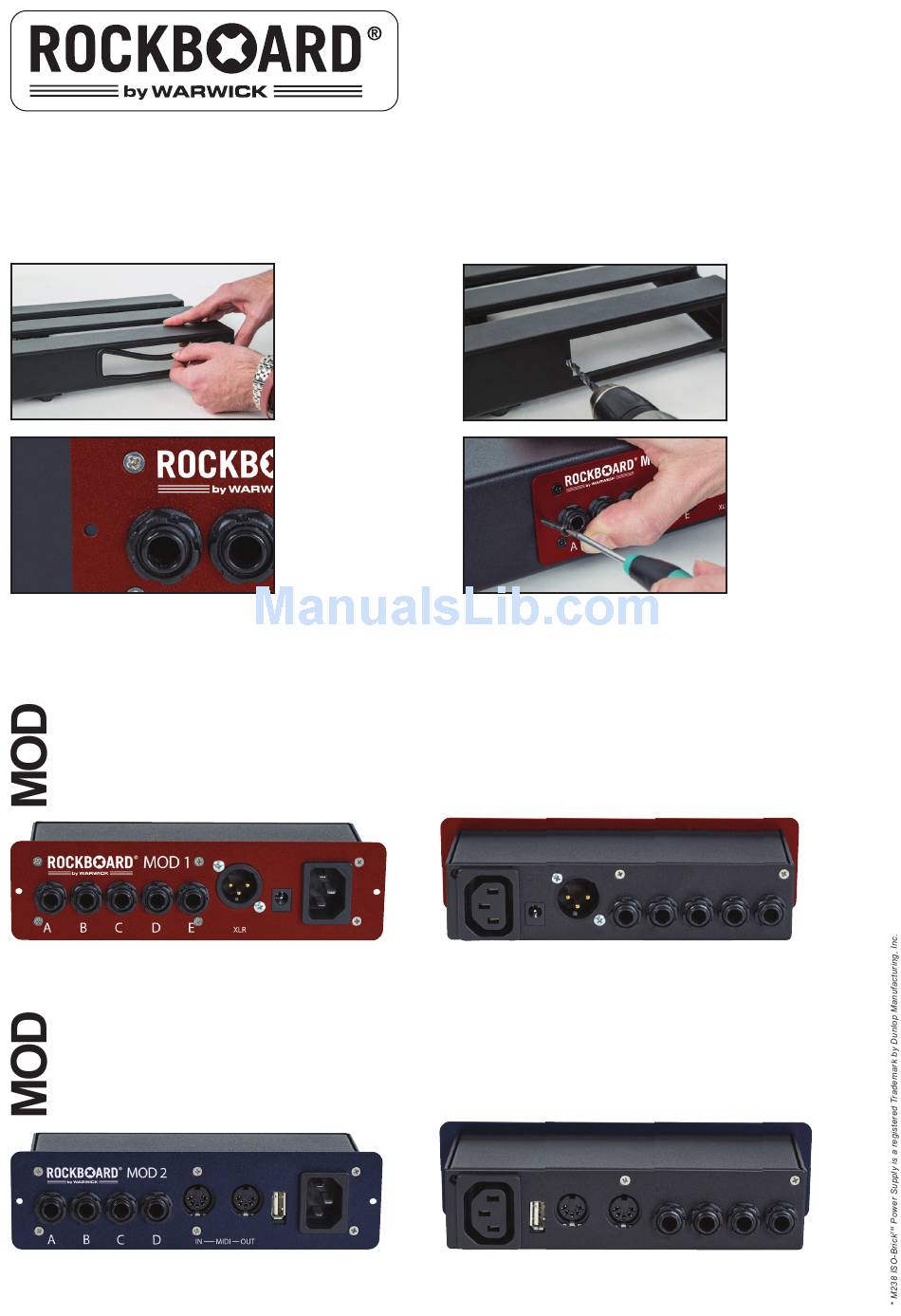

STEP 1
Remove the rubber
frame of your
RockBoard®'s front
cavaity.
STEP 2
Load your chosen
MOD from the front
into the cavaity. Using
a pencil, mark the
spots where you need
to drill the holes in the
board.
XLR 9V AC IEC
In/Out Input Input
MIDI USB AC IEC
Thru Thru Input
MOD
dual manuals
* Power Supply for example. We've got that covered, too.
TM
AC IEC
9V XLR
Input Input In/Out
AC IEC USB MIDI
Input Thru Thru
1+2
STEP 3
Take the MOD out
again and carefully
drill each hole.
STEP 4
Secure the MOD
with the two included
screws.
That's all, now you
are ready to go!
5x TRS In/Output
5x TRS In/Output
