golmar N3301 Quick Manual

NEXA AUDIO AND VIDEO DOOR ENTRY SYSTEM - ACCESS CONTROL MODULE
Mounting Configurations
( )
*

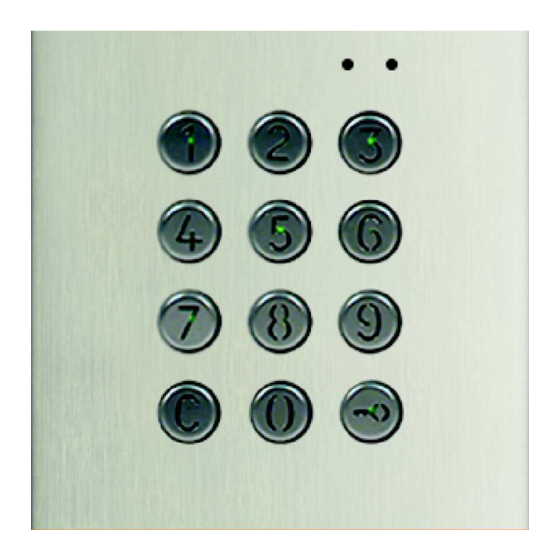

Coded panel with display:
The coded panel with display is configured by adding a display to the previous configuration,
thereby enabling the actions performed with the door panel to be viewed. This enables calls to be
made using the monitor code or the contacts residents list. It is also possible to gain access to the
building using the numeric code and view, on the door panel screen, the status of the actions
performed.
In this operating mode, the SW1 DIP switch has no function.

WIRING DIAGRAMS

( )
*

Standalone access control:

12VAC 12VAC
transformer transformer
PRI SEC PRI SEC
~ ~ ~ ~ ~ ~ ~ ~ ~ ~
Main Main

Access control combined with Nexa door panels:

12VAC 12VAC
N3301
transformer transformer
access control module
PRI SEC PRI SEC
CN1
~ ~ ~ ~ ~ ~ ~ ~
~ ~ NA1 C1 NC1 NA2 C2 NC2
Main Main
(1)
Use the varistor supplied with the N3301 module when using an AC lock release directly
on the terminals of the lock release.
( ) For more information, see the TCODE/CA NEXA user manual (code 50123681)
*
https://doc.golmar.es/search/manual/50123681
N3301
access control module
PL2
PL1
CN1
NA1 C1 NC1 NA2 C2 NC2 P - PL1 PL2
(1)
Va.c
(1)
Va.c
Door panel with EL632/PLUS -
FA-Plus or FA-Plus/C
EL642/PLUS sound module
power supply unit
CN3
CN8 CN3
10 9 8 7 6
1 2 3 4 5
CN1 SEC PRI
P - PL1 PL2 CV2 CV1 - + + - + - ~ ~
Red
PL2
PL1
(1)
Va.c
(1)
Va.c
4
NEXA
door entry system
Access control module
Golmar reserves the right to make any modifications without prior notice.
Code 50123681
