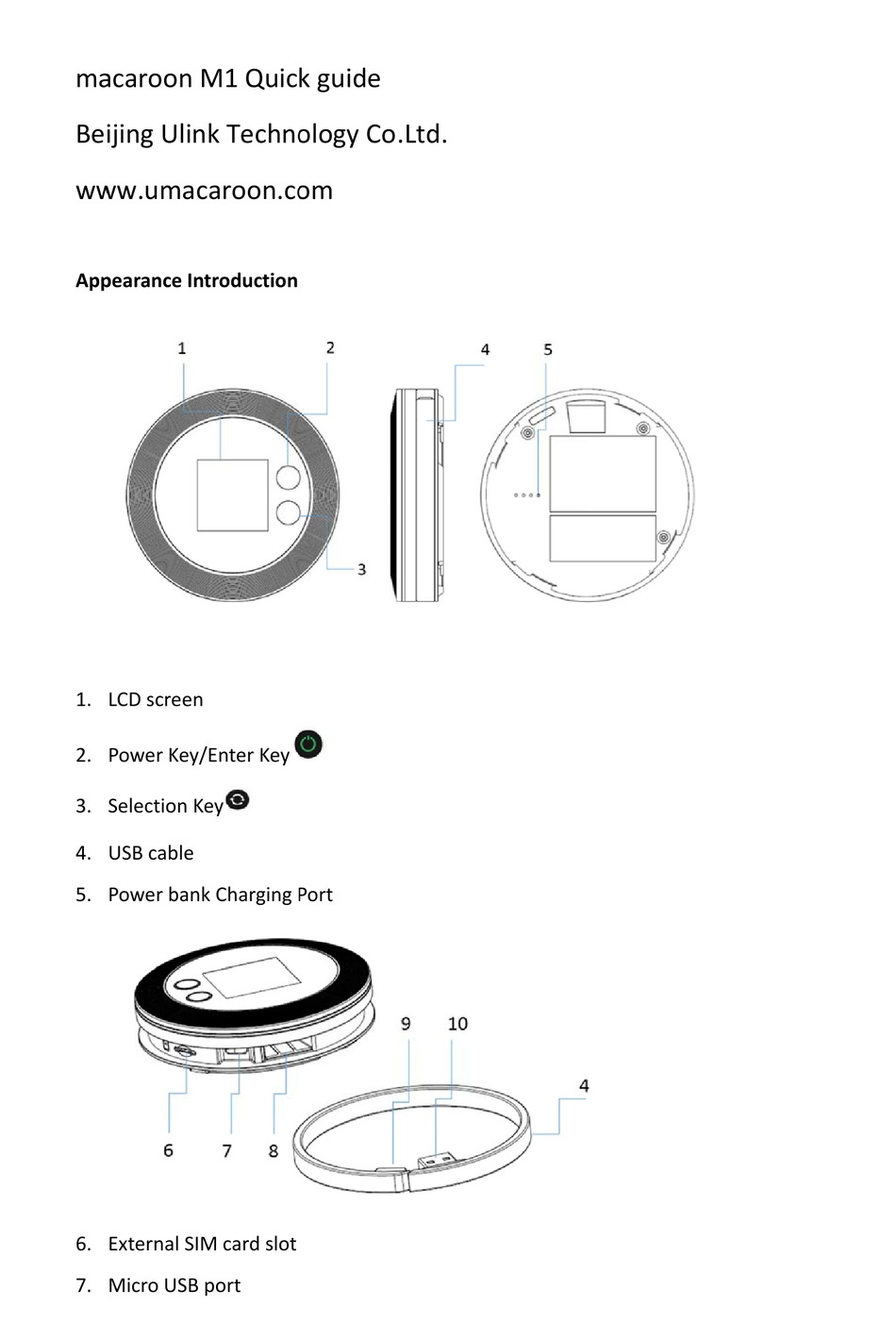

- Page 1 M1 Quic k guide ijing Ulin nk Techno ology Co o.Ltd. ww.umac caroon.co om pearance In troduction LCD screen Power Key/ /Enter Key Selection K USB cable Power bank k Charging P Port External SIM M card slot Micro USB port ...
- Page 2 USB cable T TypeA port storage slot t USB cable m micro USB p plug USB cable T TypeA USB p plug Scre een Introdu uction WLAN WLAN N Total Conn nections Network Signal strength Netwo ork type SIM Card Id dentification Displa y after inse rting SIM ca ard in the e xternal SIM M card slot ...
- Page 3 Battery Displa y after char rging status and batter ry below 20% % Battery Batter ry status dis splay Menu Standb by page( Da ata usage/Ti ime/SSID/K Key Scrolli ng display i n screen) Menu Screen nual Introd uctions USB Cable 1) Take ou ut USB cabl e: Take the USB cable T TypeA out a as Pic 1 show ws. Connec ct ...
- Page 4 4. Key Power Key/Enter Key: Long press the Power Key for more than 3 seconds. It is confirmation for clicking. Select Key: Click to select the menu and flip the screen. 3) When the device is not used for 40 seconds, it will automatically lock the screen to sleep and click any key to wake up. Forced shutdown: Long press the select key for more than 8 seconds. 5) One‐button Rescue (After‐sales Feedback): Under any page when device starts, press the select key and power key together for 3 seconds, then you can feedback problems and get help. 5. Menu From the information screen enter into the main menu: Click any Key. 2) Click the Select key to select the menu one by one, and return to the first one after the last menu icon. 3) After selecting the menu, click the Enter key to enter the menu 4) Return: Click the Select key to return to the arrow icon, and click the Enter Key to return to the previous menu. 5) During the menu operation, if there is no operation within 5 seconds, the interface will jump to the scrolling information screen, then press any key to return to the main menu screen. 6. Web UI 1）Use phone、computer or other terminal equipments to connect the macaroon WLAN. ...
- Page 5 Size 85mm*20.6mm Weight 130g Bands FDD‐LTE B1/B2/B3/B4/B5/B7/B8/B12/B17/B18/B19/B20 2）Input the IP address https://192.168.225.1 in the browser to enter into the Web UI login page. The default User namer: Uroaming; Password: MCroon2046 3）After login, you can use Web UI to modify the password, configure APN and so on. Product Introduction UROAMING – TD‐LTE Wireless Data MiFi Device Model：macaroon M1 Product Specifications ...
- Page 6 LTE‐TDD B38/B39/B40/B41 WCDMA B1/B2/B4/B5/B8 GSM B2/B3/B5/B8 WLAN Support 2.4G/5G WLAN IEEE 802.11 a/b/g/n/ac LCD Screen 1.54 inch LCD Pixels 240*240 Pixels Battery type Lithium polymer battery Cell capacity 3000mAh Standby Time 105H Continuous 7‐8H working hours USB Port Input 5V1A，Micro USB Support Bluetooth、GPS、WLAN function Technical features and characteristic for EU WLAN Operation Frequency: 2412MHz~2472MHz 802.11b/802.11g/802.11n(H20) 2422MHz~2462MHz 802.11n(H40) 5180MHz ~ 5700MHz for 802.11a/802.11n(HT20)/802.11ac(VHT20); 5190MHz ~ 5510MHz for 802.11n(HT40)/802.11ac(VHT40) ...
- Page 7 Operation Frequency: 5745MHz ~ 5825MHz Maximum Power: 9.2dBm(E.I.R.P.) BT 2402~2480MHz Operation Frequency: Maximum Power 12.55dBm(E.I.R.P.) (BT3.0+EDR:): Maximum Power ‐0.73dBm(E.I.R.P.) (BT4.0:): GSM E‐GSM 900: 880~915MHz Operation Frequency: DCS 1800: 1710~1785MHz Maximum Power 29.36dBm (E‐GSM 900): Maximum Power 24.65dBm (DCS 1800): WCDMA Operation Frequency: Band 1 TX:1922.4MHz~1977.6MHz,RX:2112.4MHz~2167.6 MHz Band 8 TX: 882.4MHz~912.6MHz,RX:927.4MHz~957.6MHz Maximum Power 24.24dBm (WCDMA Band 1): Maximum Power 23.81dBm (WCDMA Band 8): FDD LTE Operation Frequency: Band 1 TX:1922.5MHz~1977.5MHz,RX:2112.5MHz~2167.5...
- Page 8 MHz Band 3 TX:1710.7MHz~1784.3MHz,RX:1805.7MHz~1879.3 MHz Band 7 TX:2502.5MHz~2567.5MHz,RX:2622.5MHz~2687.5 MHz Band 8 TX:880.7MHz~914.3MHz,RX:925.7MHz~959.3MHz Band 20 TX:834.5MHz~859.5MHz,RX:793.5MHz~818.5MHz Maximum Power 23.51dBm (Band 1): Maximum Power 22.89dBm (Band 3): Maximum Power 22.74dBm (Band 7): Maximum Power 23.85dBm (Band 8): Maximum Power 23.74dBm (Band 20): TDD LTE Operation Frequency: Band 38 TX:2572.5MHz~2617.5MHz,RX:2572.5MHz~2617.5 MHz Band 40 TX:2302.5MHz~2397.5MHz,RX:2302.5MHz~2397.5...
- Page 9 MHz Maximum Power 23.85dBm (Band 38): Maximum Power 23.77dBm (Band 40): Product Feature ·Modular design，Assort with specified macaroon accessory macaroon (such as macaroon charger,etc.)，more convenient · Connect to internet at High speed，universal version · Network Sharing，up to connections of 10 devices simultaneously · GPS accurate positioning · Built‐in USB cable, Charge anytime，fast and convenient · Support SOS function，Contact hotline to get help promptly FAQ 1. How long does it take to have the device fully charged ? It takes 4 hours. 2.How long does it take to connect to internet after power‐on？ Normally it takes 1‐2 minutes. It might takes 5 minutes for the first time when arriving a new country. 3.What should I do when my Phone/Pad can not connect to internet？ ...
- Page 10 （2）If still can not get internet connection,please contact Uroaming official WeChat or call hotline 4006505011 to get troubleshooting. 5. What should I do if my device is lost？ If your device has been lost incidentally,please contact Uroaming official WeChat to freeze your account in case of extra expenses. Warning · Please use original accessories. If use unauthorized charger or accessories,it might cause damage to the device and even cause a fire,explosion,or other hazards. · Do not wash , keep in dry and cool environment. Too high‐ or low‐temperature conditions might cause damage to the device. · Please do not expose the device at high temperature environment or heating locations,such as sunlight,warmer,microwave,oven or water‐heater,etc. Overheated battery might cause explosion. · When charging is complete or not in charging,please disconnect power bank from the device and unplug charger from the power outlet. · The built‐in battery is non‐removable. Please do not change or disassemble battery by yourself in case damage to battery or the device. The battery can only be replaced by ...
- Page 11 Caut tion! The users has to o turn off the e 5GHz WLAN N in outdoor environmen nt. C Statem ment This s equipment has been t ested and fo ound to com mply with th e limits for a Class B d igital devi ice, pursuant t to part 15 o of the FCC Ru ules. These l...
- Page 12 FCC Radiation Exposure Statement This device complies with FCC SAR exposure limits set forth for an uncontrolled environment. SAR compliance for using the equipment in close proximity to the human body has been evaluated at 5mm.This equipment must not be co‐located or operating in conjunction with any other antenna or transmitter. End‐users and installers must be provide with antenna installation instructions and consider removing the no‐collocation statement. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ...
- Page 13 ntact w.umacaro on.com BEIJ JING ULINK TECHNOLO OGY CO., LTD D Tel: 400650501 11 il: service@ @uroaming.c com.cn yright Notic e BEIJ ING ULINK T TECHNOLOGY Y CO., LTD re eserves the ri ight of final interpretatio o n of the dev v ice rega arding uroam ming and mac caroon trade emark. For more details s Plea ase visit www w.uroaming.c com.cn ...
