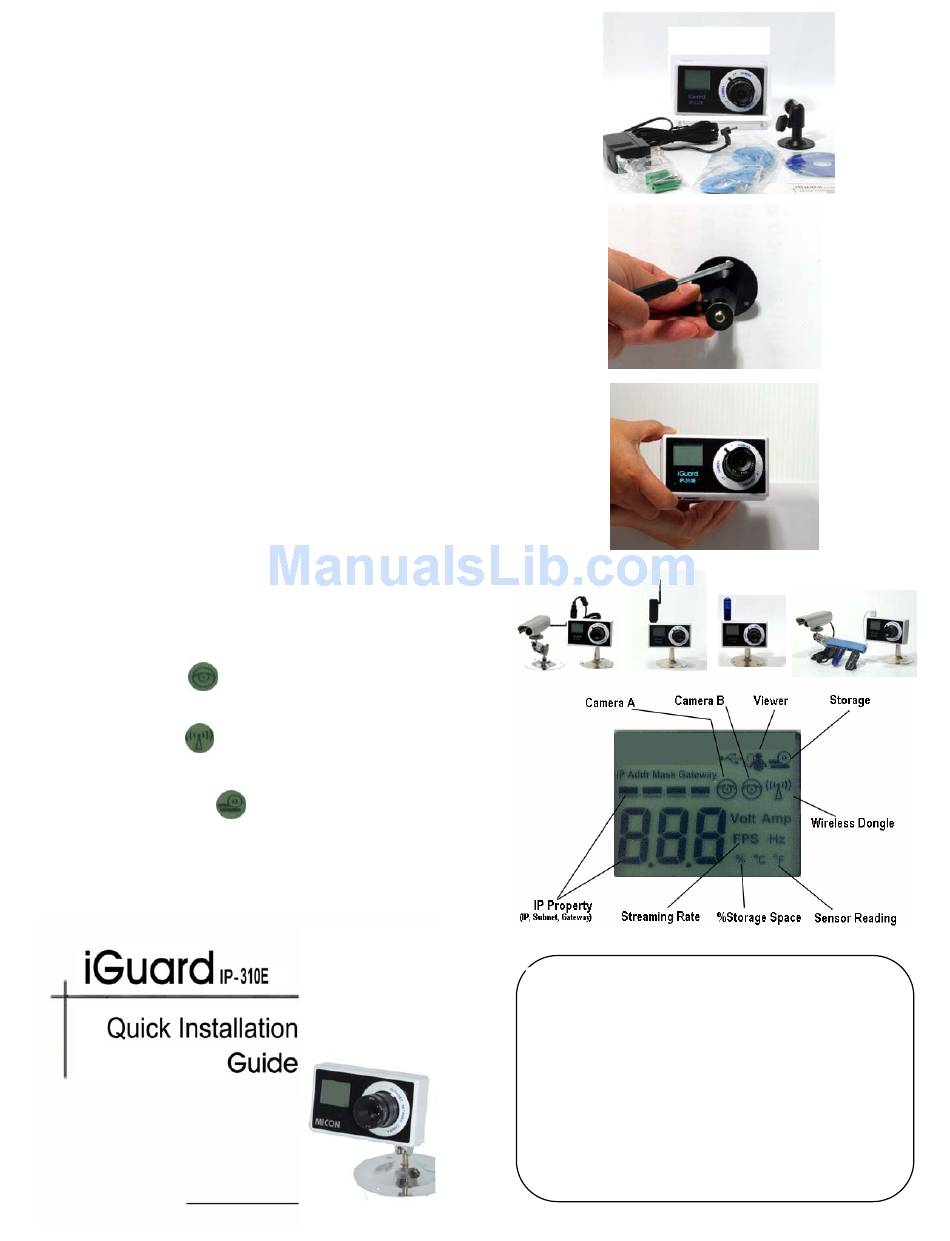

A. Package Contents .............................................................
A standard package should contain the following items. If
any of these items are missing, please contact your dealer.
•
iGuard IP-310E IP Camera
•
DC 5.3V Power Adaptor.
•
Mounting Bracket
•
Ethernet Cable
•
iGuard Utility CD
•
This Quick Installation Guide
B. Camera Installation...........................................................
1. Prepare for the Installation
You need to provide power and LAN access (if you
choose to install the camera via its lan port) near the
location where the camera will be installed. Do not cut
and extend the AC adapter. Use a proper extension
cord if necessary instead.
2. Mount the Camera
Mount the bracket first (You may wish to use the
included anchors to secure the bracket). Attach the
camera to the bracket's universal panning head.
3. Adjust the Camera Angle
Loosen the knob on the bracket's universal panning
head and adjust the camera to the desirable angle.
Hand-tighten the knob.
4. Attach the AC and Network Cable
Plug the Ethernet cable and AC/DC adapter to the RJ45
and Power-In jacks on the bottom of the camera.
Please use the included power supply to power the
camera (Note: this camera supports 5.3V DC.).
C. Expansion Installation (Optional) ...................................
This iGuard IP camera has a built-in USB expansion port,
to which a large selection of USB cameras, wireless
dongles, and USB storage devices can be attached.
1. Second Camera
The second camera icon will lid on the LCD if a
compatible USB camera is attached to the unit.
2. Wireless Dongle
The wireless icon will lid on the LCD if a compatible
WiFi dongle is attached.
3. USB Storage Device
A USB Disk icon will lid on the LCD if a compatible
USB disk is attached.
4. USB Hub
You can use a USB hub if you wish to use two or
more of the above add-ons.
