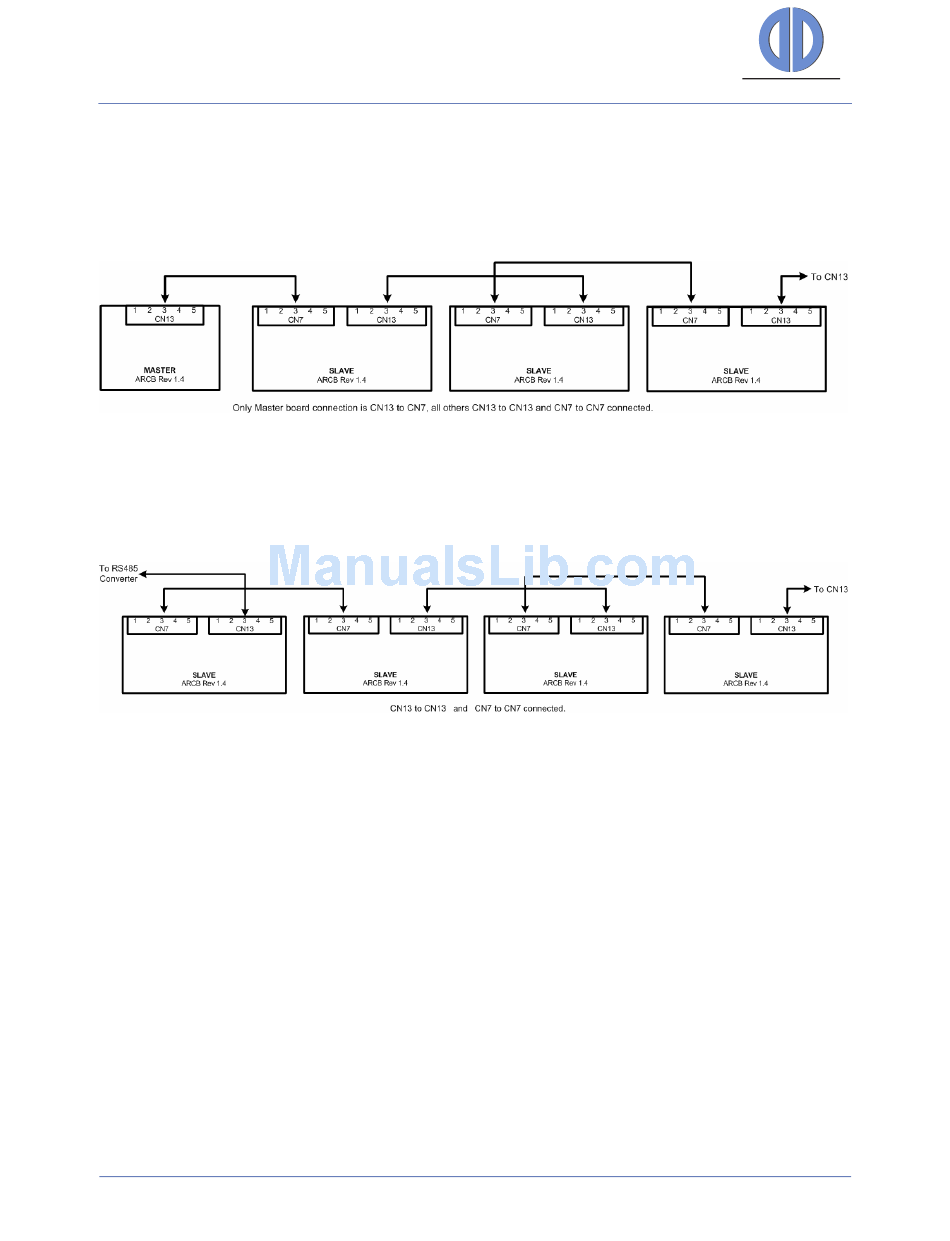

2.3 Cabling
Two main configurations are possible:
2.3.1
Cabling for system without External RS485 Converter
All cables are same and "1-to-1".
•
Pin 1 and 2 should be twisted pair cable for all connectors
•
Pin 3 and 4 should be twisted pair cable for all connectors
•
2.3.2
Cabling for system with External RS485 Converter
All cables between ARCBs are same and "1-to-1".
•
Pin 1 and 2 should be twisted pair cable for all connectors
•
Pin 3 and 4 should be twisted pair cable for all connectors
•
DATA DISPLAY GROUP
Page 5 of 8
