Summary of Contents for Lynx SEDONA SVH36

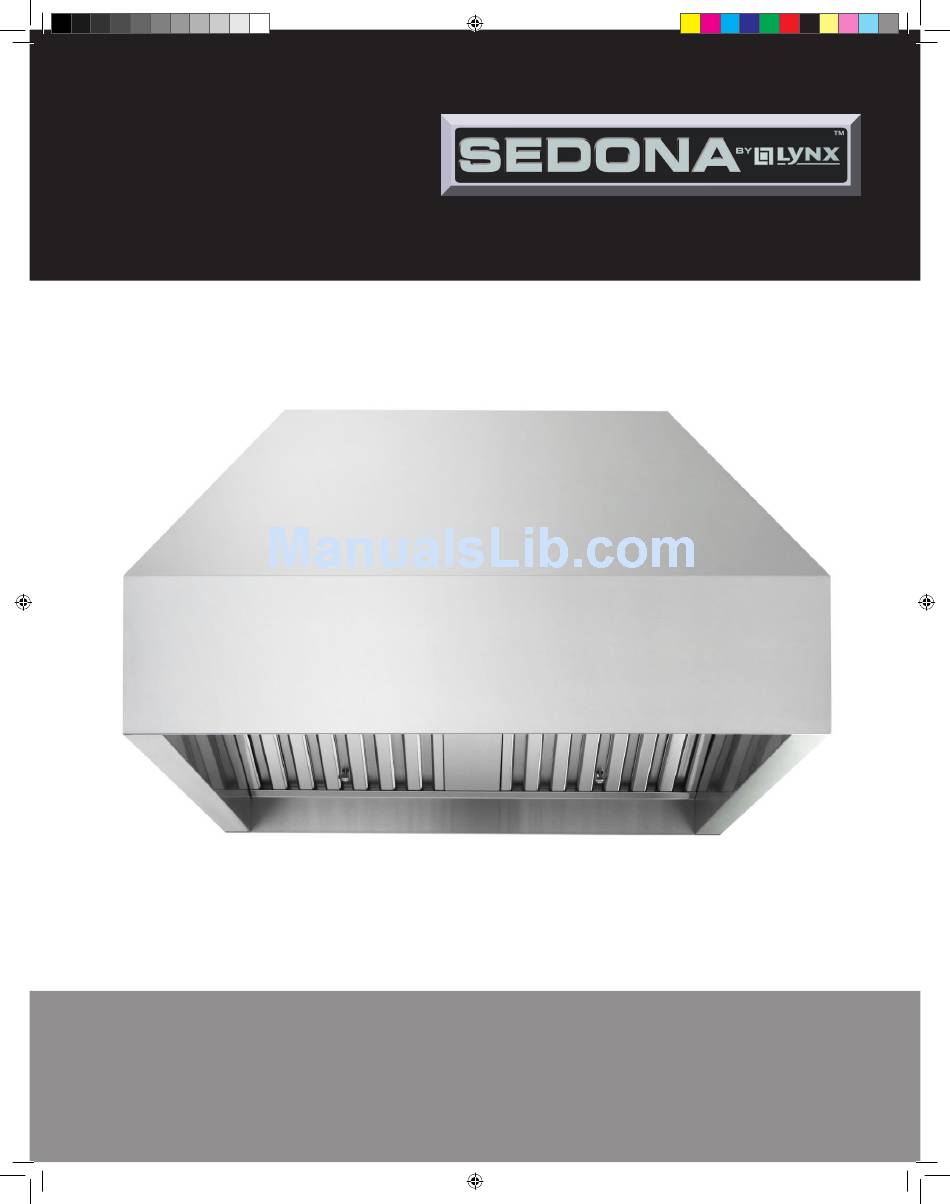

- Page 1 SEDONA by LYNX™ VENT HOOD CARE & USE/INSTALLATION LCS30 COCKTAIL STATION CARE & USE/INSTALLATION 35320 Sedona Vent Hood Care and Use 2017.indd 1 2/16/2018 4:00:18 PM...
- Page 2 This product complies with ANSI/NFPA 70-1990 (or latest revision) Lynx Grills, Inc. and approved by Underwriters Labratory. 7300 Flores Street Downey, CA 90242 888-289-5969 SEDONA BY LYNX™ VENT HOOD CARE & USE/INSTALLATION 35320 Sedona Vent Hood Care and Use 2017.indd 2 2/16/2018 4:00:18 PM...
-
Page 3: Before You Start
4. Do not use this unit with any solid-state speed control device. 5. This unit must be grounded. SEDONA BY LYNX™ VENT HOOD CARE & USE/INSTALLATION 35320 Sedona Vent Hood Care and Use 2017.indd 3 2/16/2018 4:00:18 PM... -
Page 4: Exterior Dimensions
Exterior Dimensions INSTALLATION PREPARATION The Sedona by Lynx ™ vent hoods are designed for outdoor use. It is recommended that the vent hood be installed by a qualified technician in accordance with all local building codes. Before beginning installation, please thoroughly read and become familiar with these instructions. Installation and service must be completed by a qualified installer. - Page 5 Ducted fans must always be vented to the outdoors. e) For safe and secure wall mounting, the Sedona by Lynx™ Vent Hood should be mounted to a solid vertical surface of sufficient width to allow for mounting of the Hood. The horizontal surface should extend from a vertical plane to the point directly in front of the exhaust roof cap (or wall cap).
- Page 6 25” to 48” 12” 24” SDC1236 Ext Kit for SVH36 SDC1242 Ext Kit for SVH42 SDC1248 Ext Kit for SVH48 SEDONA BY LYNX™ VENT HOOD CARE & USE/INSTALLATION 35320 Sedona Vent Hood Care and Use 2017.indd 6 2/16/2018 4:00:19 PM...
-
Page 7: Electrical Connections
15 or 20 Amp circuit breaker. The Sedona by Lynx™ Vent Hood is supplied with a 6.0 Amp three speed fan control. For safety precautions, each Ventilation Hood should be installed in a GFCI protected branch circuit. -
Page 8: Care And Use
MOUNTING HOLES: Because the Sedona by Lynx™ Vent Hood was designed for all applications, no mounting holes have been pre-drilled. This allows for custom applications for mounting. The hood should be attached to the framing through the top and back, whenever possible. - Page 9 Hoods are designed for halogen light bulbs (PAR20). They can be purchased at most home improvement and/or grocery stores. We endeavor to incorporate the best technology provided to our industry, in manufacturing Sedona by Lynx™ products, therefore, we reserve the right to change models, mode of operation, and specification without prior notice.
- Page 10 All ducting should be attached so as to avoid any possible duct vibration from being transferred to the house’s framework. SEDONA BY LYNX™ VENT HOOD CARE & USE/INSTALLATION 35320 Sedona Vent Hood Care and Use 2017.indd 10...
- Page 11 BBQ grill is located in a consistently windy area, e.g., near 6” 6” oceans, large lakes or on hillside properties, for best vent hood performance, a wind-break may be required. SEDONA BY LYNX™ VENT HOOD CARE & USE/INSTALLATION 35320 Sedona Vent Hood Care and Use 2017.indd 11 2/16/2018 4:00:20 PM...
- Page 12 Sedona by Lynx™ product. 12” 16” 12” Open DETAIL A SCALE 1:6 24” x 24” flashing 9 7/8” x 2” collar SEDONA BY LYNX™ VENT HOOD CARE & USE/INSTALLATION 35320 Sedona Vent Hood Care and Use 2017.indd 12 2/16/2018 4:00:20 PM...
-
Page 13: Lynx Limited Warranty
This warranty gives you specific legal rights and you may have other rights which vary from state to state. 7. No one has the authority to add to or vary Lynx’s warranty, or to create for Lynx any other obligation or liability in connection with the sale or use of its products. -
Page 14: Contacting Lynx Customer Care
• Serial number The serial number can be located interior right hand wall of the vent hood, below the wiring diagram. For warranty service, contact the Lynx Customer Care Department for an authorized service agent near you at: (888) 289-5969 www.lynxgrills.com... -
Page 15: Exploded View/Parts
Light Bar Knob Light Bulb 36450 36453 Filter Knob 12" x 14" Baffle Filter 36452 36451 600 CFM Blower Module SEDONA BY LYNX™ VENT HOOD CARE & USE/INSTALLATION 35320 Sedona Vent Hood Care and Use 2017.indd 15 2/16/2018 4:00:20 PM... -
Page 16: Product Dimensions
PRODUCT DIMENSIONS SEDONA BY LYNX™ VENT HOOD CARE & USE/INSTALLATION 35320 Sedona Vent Hood Care and Use 2017.indd 16 2/16/2018 4:00:20 PM... - Page 17 PRODUCT DIMENSIONS SEDONA BY LYNX™ VENT HOOD CARE & USE/INSTALLATION 35320 Sedona Vent Hood Care and Use 2017.indd 17 2/16/2018 4:00:21 PM...
- Page 18 PRODUCT DIMENSIONS SEDONA BY LYNX™ VENT HOOD CARE & USE/INSTALLATION 35320 Sedona Vent Hood Care and Use 2017.indd 18 2/16/2018 4:00:21 PM...
- Page 19 The best outdoor kitchen products come from: Lynx Grills, Inc. 7300 Flores Street Downey, CA 90242 Service: (888)-289-5969 Fax: (562) 299-6978 www.lynxgrills.com P/N 35320 35320 Sedona Vent Hood Care and Use 2017.indd 19 2/16/2018 4:00:21 PM...
