Philips Heartstart MRx and Heartstart XL+ Defibrillator – Flush Wall Mount Kit

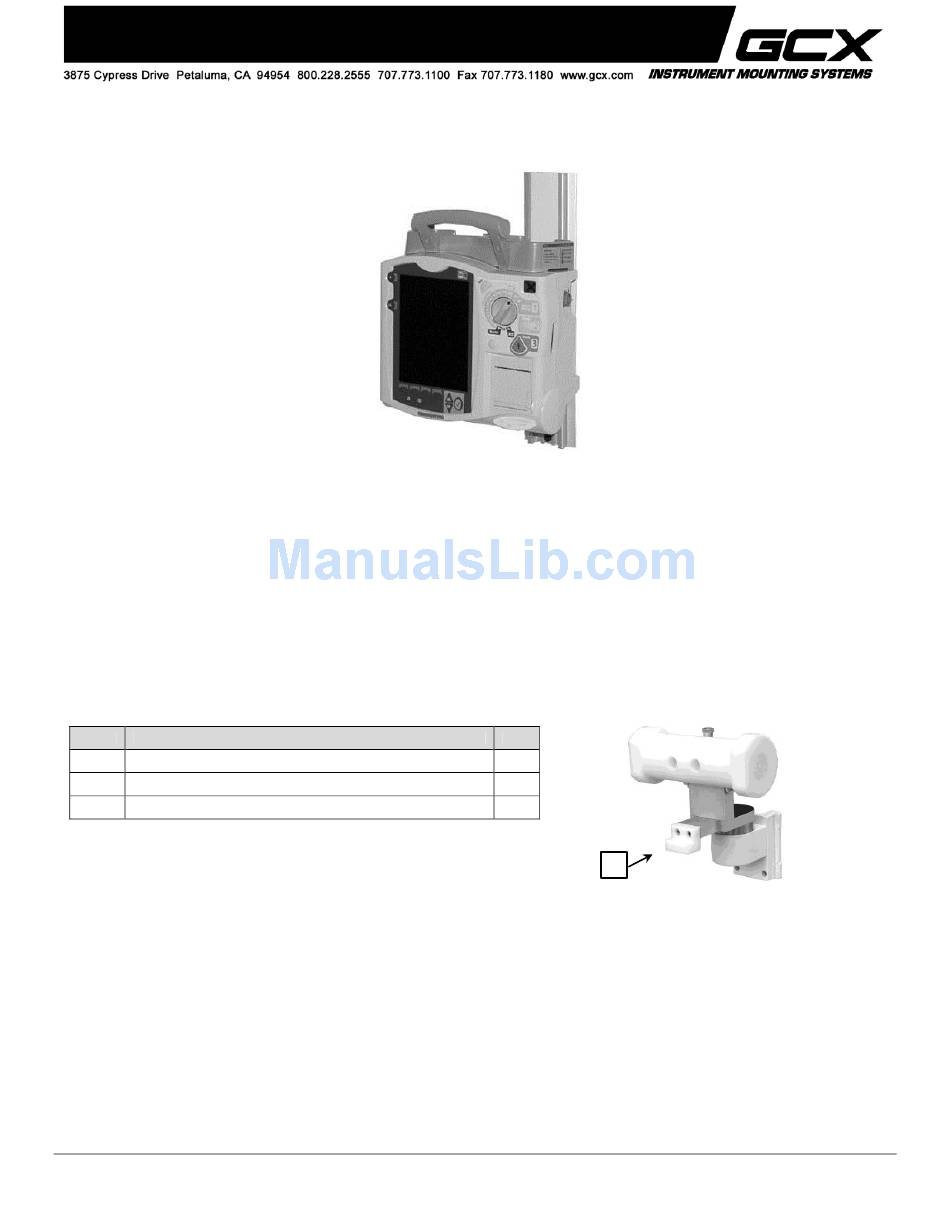

The purpose of this guide is to:
1. Describe installation of the Mounting Assembly (page 2).
2. Describe mounting of defibrillator on the Mounting Assembly (page 2).
Parts Reference
The following parts and hardware are included with this installation kit (see photo for part; hardware not shown):
Item #
Description
1
Wall Mount
2
Channel Cover (includes instructions)
3
1/8'' Hex Wrench
Tools Required
• 1/8'' hex wrench (provided)
Installation Guide
Qty
1
1
1
DU-PH-0050-03 Rev D 3/27/12 GCX Corp. Page 1 of 3
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Philips Heartstart MRx
Summary of Contents for Philips Heartstart MRx
- Page 1 Installation Guide Philips Heartstart MRx and Heartstart XL+ Defibrillator – Flush Wall Mount Kit The purpose of this guide is to: 1. Describe installation of the Mounting Assembly (page 2). 2. Describe mounting of defibrillator on the Mounting Assembly (page 2).
- Page 2 1. Pull Plunger and open the Bed Hook Latch (below left). 2. Hook the bed hook (rear of Heartstart MRx) over the Mounting Bar (below center). 3. Close the Bed Hook Latch over the bed hook, ensuring that the Plunger snaps snaps into clearance hole (below right).
- Page 3 #10-32 x 9/16'' Manual Tilt #10-32 x 5/8'' #10 x 1-1/2'' #10 x 1-1/2 #10-32 x 5/8'' #10-32 x 9/16'' Swivel Head Roll Stand Post Column Base Pic 6 Pic 5 Pic 4 Pic 2 Pic 3 Pic 1 FHMS (3) Clamp FHSCS (3) FHSMS (3)
