Summary of Contents for Breeze 3030SR

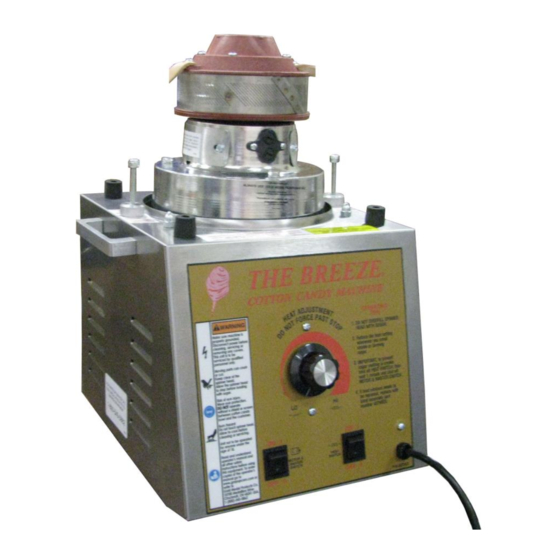

- Page 1 Part No. 42147 ® THE BREEZE Domestic and Export Instruction Manual Models 3030, 3030SR, 3030EX, 3040, 3040SR Cincinnati, OH 45241-4807 USA...
- Page 2 The Breeze Models: 3030, 3030SR, 3030EX, 3040 and 3040SR...
-
Page 3: Installation Instructions
NOT cover the motor bearings, since they can be damaged by the operator. Electrical Requirements: The following power supply must be provided: Model No. 3030, 3030SR, 3040 and 3040SR: 120 VAC, 60 Hz, 15 Amps Model No. 3030EX: 240 VAC, 50 Hz, 15 amps Your electrician must furnish sufficient current for proper machine operation. -
Page 4: Operating Instructions
Main Switch - Turns motor "on" or "off" and supplies voltage to the heat switch. Heat Switch - Turns voltage to the heating element "on" or "off." Heat Control (except Accu-Breeze)- Increases or decreases voltage to heating element using a graduated dial. - Page 5 9. Turn the heat switch “off” and allow the motor to run for 1-2 minutes to allow the floss head to “cool down”. 10. Turn the motor switch off and allow the motor to come to a complete stop. Models: 3030, 3030SR, 3030EX, 3040 and 3040SR...
- Page 6 The Breeze Installation of Floss Stabilizer Models: 3030, 3030SR, 3030EX, 3040 and 3040SR...
- Page 7 3. Continue this process with all (6) clips, keeping equal spacing around the pan, and slide the long flat side of the clip down the outside of the floss pan. Models: 3030, 3030SR, 3030EX, 3040 and 3040SR...
- Page 8 DO NOT fill Spinner Head with sugar while it is rotating. Operator should ALWAYS wear eye protection. DO NOT put hands near rotating spinner head. Use ONLY floss cone to collect cotton candy Models: 3030, 3030SR, 3030EX, 3040 and 3040SR...
- Page 9 (leading) edge of the leather floaters down. You get more lift and the floss will collect higher. Form leather floaters as shown. This creates a lifting action to float the floss higher on the and outside wall of the floss pan. Models: 3030, 3030SR, 3030EX, 3040 and 3040SR...
-
Page 10: Maintenance Instructions
The Breeze MAINTENANCE INSTRUCTIONS Models: 3030, 3030SR, 3030EX, 3040 and 3040SR... - Page 11 MT2. The ohmmeter should indicate no continuity (OL) through the triac. 7. Using a separate jumper lead, connect the gate of the triac to MT2. The ohmmeter should indicate continuity. (less than 100 ohms) Models: 3030, 3030SR, 3030EX, 3040 and 3040SR...
- Page 12 When the sugar has been removed, allow the band and element to dry over-night. 5. Re-assemble the floss head components, using the above steps for a reference. Models: 3030, 3030SR, 3030EX, 3040 and 3040SR...
-
Page 13: Troubleshooting
DO NOT add sugar with motor running! 3. Check for stretched, or uneven suspension springs. 4. Run the sugar completely out, then check for foreign objects or sugar lumps in the head assembly. Models: 3030, 3030SR, 3030EX, 3040 and 3040SR... -
Page 14: Ordering Spare Parts
4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at: (800) 543-0862 (513) 769-7676 Fax: (513) 769-8500 E-mail: info@gmpopcorn.com Web Page: www.gmpopcorn.com Models: 3030, 3030SR, 3030EX, 3040 and 3040SR... - Page 15 67069 Handle 47155 Rubber Feet ¾" High 48726 Nameplate (3030) 48726EX Nameplate (3030EX) 42798 Switch, Light Rocker Green (x2) 22038 Power Supply Cord (Domestic) 42369 Power Supply Cord (Export) 42556 Knob, Heat Control Models: 3030, 3030SR, 3030EX, 3040 and 3040SR...
- Page 16 42436W Brush Holder, 3/8" Wide Brushes (x1) 49214 #8-32 x 3/8 Hex Head Screw (x4) 42150 Knob, Shipping Bracket 42183 Safety Bracket 42140 1/4" Wide Brushes 55007 3/8" Wide Brushes 49068 Acorn Nut 1/4-20 42381 Brush Inspection Cover (x2) Models: 3030, 3030SR, 3030EX, 3040 and 3040SR...
- Page 17 Shipping Bracket Assembly 48649 Motor (Domestic) 48649EX Motor (Export) 42558 Electronic Heat Control, 120V (Domestic) 55260EX Electronic Heat Control, 240V (Export) 42448 Bottom Plate 89125 #8-32x3/4" Hex Head Screw (x4) 74133 Hex Nut 1/4-20" (x4) Models: 3030, 3030SR, 3030EX, 3040 and 3040SR...
- Page 18 Hanndle Spacer (x2) 42467 Clamping Bracket Assy. (x2) 42460 Clamping Cam (x2) 77610 Acorn Nut 5/18-18 12183 Screw 5/16-18 x 1/2 PH TR M/S 12001 Nylon Insert 5/16-18 Hex Nut 74137 Washer 5/16 Models: 3030, 3030SR, 3030EX, 3040 and 3040SR...
- Page 19 The Breeze 3040 – Parts Item Part No. Description 55018 Name, Instruction Overlay 55155 Triac, 35A 600V 48673 Heat Sink 55447 Auto Watt Controller 87481 Thermal Compound Models: 3030, 3030SR, 3030EX, 3040 and 3040SR...
- Page 20 Set Screw, 1/4-20 x 3/8" 42305 42305 Terminal Assembly 18,19,20,21 48799 48799EX Floss Band Assembly W/ Element Clamps, Counterweight & Nut 48798 48715 Floss Element Clamp/Bracket 48763 48763 Counterweight 42437 42437 Upper Spinner Head Models: 3030, 3030SR, 3030EX, 3040 and 3040SR...
- Page 21 The Breeze ELECTRICAL SCHEMATIC – DOMESTIC (3030, 3030SR) Models: 3030, 3030SR, 3030EX, 3040 and 3040SR...
- Page 22 The Breeze ELECTRICAL SCHEMATIC – EXPORT (3030EX) Models: 3030, 3030SR, 3030EX, 3040 and 3040SR...
- Page 23 The Breeze Electrical Schematic – 3040 & 3040SR Models: 3030, 3030SR, 3030EX, 3040 and 3040SR...
-
Page 24: Warranty
THE REPAIR OR REPLACEMENT OF PARTS. NOTE: This equipment is manufactured and sold for commercial use only. GOLD MEDAL PRODUCTS COMPANY 10700 Medallion Drive Cincinnati, Ohio 45241-4807 USA www.gmpopcorn.com Phone: 1-800-543-0862 Fax: 1-800-542-1496 Models: 3030, 3030SR, 3030EX, 3040 and 3040SR...
