Easy set up: 45 minutes
Packing list
17x Tent poles
A
B
6x Pipes
12x Frame joints
C
8x Standing poles
D
E
4x Canopy supporting poles
3x Shade net frames
F
40x Twisted rod pegs

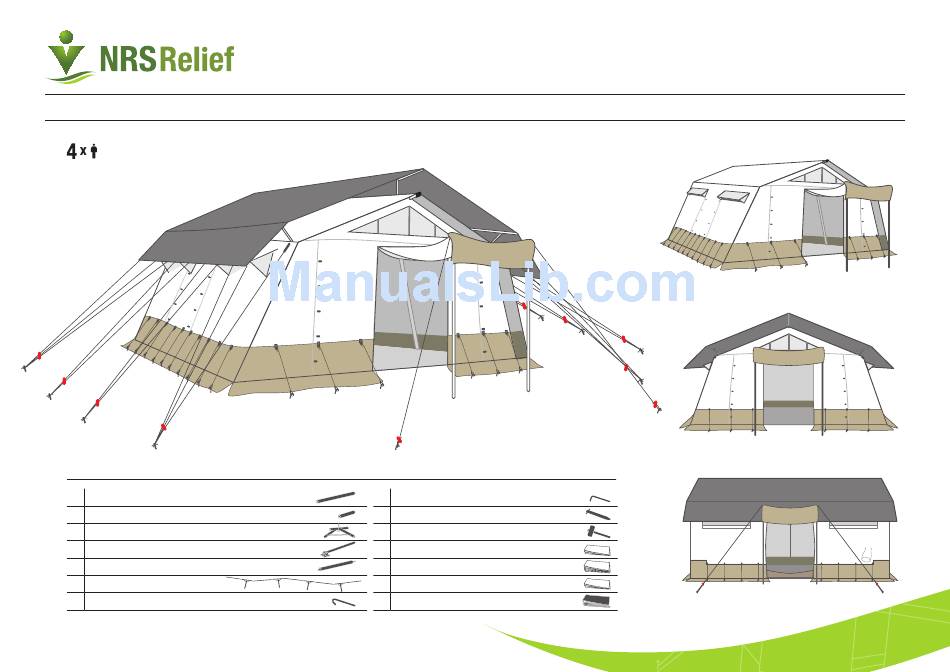

Technical drawing
30x Steel pins
12x Tent pegs
1x Hammer
1x Flysheet
1x Inner
1x Ground sheet
1x Shade net
LEGEND 33 -
ICRC/IFRC Standard
General view
Front view
Side view
Advertisement
Related Manuals for NRS Relief LEGEND 33
Summary of Contents for NRS Relief LEGEND 33
- Page 1 LEGEND 33 - ICRC/IFRC Standard Technical drawing General view Easy set up: 45 minutes Front view Side view Packing list 17x Tent poles 30x Steel pins 6x Pipes 12x Tent pegs 12x Frame joints 1x Hammer 8x Standing poles 1x Flysheet...
- Page 2 LEGEND 33 - ICRC/IFRC Standard 12x frame 8x standing joints poles 17x tent poles 6x pipes 17x tent poles 12x frame joints Layout all the poles and joints. Slot the “A” poles into all the joints. Note: the longer parts of the joint should face to the side.
- Page 3 LEGEND 33 - ICRC/IFRC Standard Spread out the outer tent and secure by inserting side joint pins Slot a shade net frame onto the joint pins along the each side. Spread the shade net over the top of the tent through the eyelets.
- Page 4 LEGEND 33 - ICRC/IFRC Standard 14.1 14.2 Fix the outer tent to all tent poles using the Velcro loops. Inside the tent, secure all lower black loops with a steel pin, until Pull out all guy ropes, secure with tent pegs, and tighten with sliders.
