DIGITAL PA AMPLIFIERS
TABLE OF CONTENTS
1.
SAFETY PRECAUTIONS ........................
2.
GENERAL DESCRIPTION .......................
3.
FEATURES ...............................................
4.
4.1.
Front .................................................
4.2.
Rear .................................................
5.
MUTING FUNCTION ...............................
6.
6.1.
Input Connections ............................
Thank you for purchasing TOA's Digital PA Amplifiers.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
A-2030D/ DD SERIES
A-2060D/ DD SERIES
A-2120D/ DD/ DT SERIES
A-2240D/ DD/ DT SERIES
2
6.2.
Output Connection ...........................
6.3.
3
3
6.4.
Connections .....................................
7.
VOLUME CONTROL SETTING ...............
4
8.
BLOCK AND LEVEL DIAGRAMS ............
4
9.
DIMENSIONAL DIAGRAM ......................
6
10.
SPECIFICATIONS ....................................
6
INSTRUCTIONS MANUAL
7
7
7
8
8
10
10
Advertisement
Table of Contents
Related Manuals for Toa A-2030D Series
Summary of Contents for Toa A-2030D Series
-
Page 1: Table Of Contents
4.2. Rear ..........MUTING FUNCTION ....... DIMENSIONAL DIAGRAM ...... CONNECTIONS SPECIFICATIONS ........6.1. Input Connections ......Thank you for purchasing TOA’s Digital PA Amplifiers. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. -
Page 2: Safety Precautions
AC outlet and contact your nearest TOA dealer. Make no further • Use the unit only with the voltage specified on attempt to operate the unit in this condition as this the unit. -
Page 3: General Description

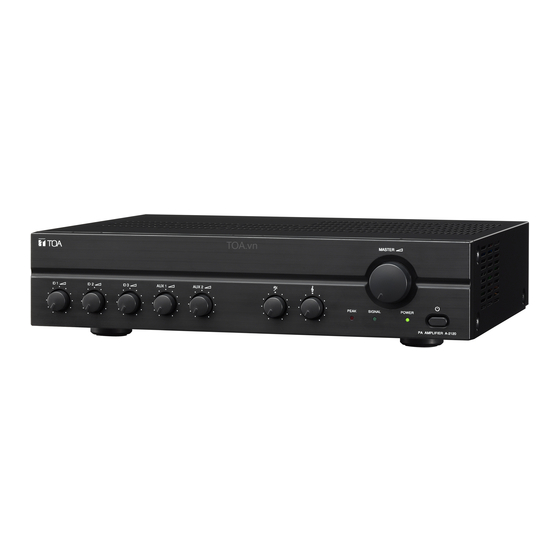

2. GENERAL DESCRIPTION TOA’s Digital PA Amplifiers A-2030D, A-2060D, A-2120D, A-2120DT and A-2240D, A-2240DT Series are high performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shop, factories, mosque, churches and large room. -
Page 4: Nomenclatures And Functions
>PC< A-2240D-EA 4CE CAUTIO Put back this te after connecting [A-2000D-EB 1CE Series] Traceability Information for EU directive Represented by TOA Electronics Europe GmbH Süderstraße 282, 42Ω 20537 Hamburg, Germany >PC< A-2240D-EB 1CE CAUTIO Put back this te after connecting... - Page 5 [A-2000D-EB 4CE Series] Traceability Information for EU directive Represented by TOA Electronics Europe GmbH Süderstraße 282, 42Ω 20537 Hamburg, Germany >PC< A-2240D-EB 4CE CAUTIO Put back this te after connecting [A-2000DD-EB 1CE Series] Traceability Information for EU directive Represented by TOA Electronics Europe GmbH Süderstraße 282,...
-
Page 6: Muting Function
Mic 2, Mic 3, Aux 1, and Aux 2 inputs by 0 to -30dB. ground The attenuation level is preset for -30dB at factory. We recommended using TOA’s microphone PM-222D or PM-660D to bring the best results. 6. CONNECTIONS 6.1. -
Page 7: Output Connection
MIC1 Connection (5-pin DIN Plug) • Four Core Shielded Cable To 5-Pin DIN connector 6.2. Output Connection COM 100V 42Ω Total impedance for 100V line : 330Ω (A-2030D Series) • 170Ω (A-2060D Series) • 83Ω (A-2120D Series) • 42Ω (A-2240D Series) •... -
Page 8: Volume Control Setting
For music play or announcement, adjust the corresponding volume control until the indicator PEAK (red) lights intermittently. Note that the sound quality is downgraded when the PEAK indicator remains lit. Factory preset : Minimum 8. BLOCK AND LEVEL DIAGRAMS [A-2030D Series, A-2060D Series] [A-2120D Series, A-2240D Series]... - Page 9 [A-2120DT-AS 2CE, A-2240DT-AS 2CE] [A-2030D Series, A-2060D Series, A-2120D Series, and A-2240D Series] [A-2120DT-AS 2CE, A-2240DT-AS 2CE]...
-
Page 10: Dimensional Diagram
9. DIMENSIONAL DIAGRAM Dimensional diagram represent by A-2030D-AS 2CE image. Outer dimension for all series are same. Units : mm (inches) 420(16.54) 58.4(2.3) 10. SPECIFICATIONS [A-2000D-AS 2CE Series] Model no. A-2030D-AS A-2060D-AS A-2120D-AS A-2240D-AS 220-240V 50/60Hz Power Source Rated Output 120W 240W Power Consumption... - Page 11 [A-2000DT-AS 2CE Series] Model no. A-2120DT-AS A-2240DT-AS 220-240V 50/60Hz Power Source Rated Output 120W 240W Power Consumption (EN 60065) Frequency Response 50-20000Hz, ±3dB Distortion Less than 1% at 1kHz, 1/3 Rated Power Input MIC 1-3 -60 dB (0dB=1V), 600Ω, Balanced, XLR3 -31 type AUX 1-2 -20 dB (0dB=1V), 10kΩ, Unbalanced, RCA pin jack TONES...
- Page 12 *Design & specification are subject to change without notice for improvement. Traceability Information for Europe Manufacturer: Authorized representative: PT. TOA GALVA INDUSTRIES TOA Electronics Europe GmbH Jl. Raya Jakarta Bogor Km. 34-35 Sukamaju Baru, Tapos 16958 Suederstrasse 282, 20537 Hamburg,...
