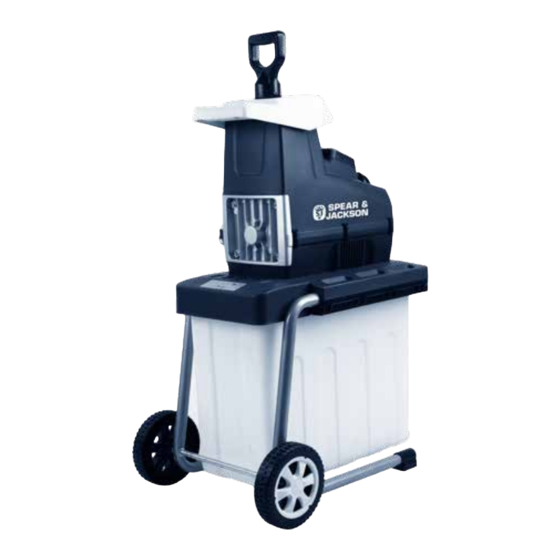

ELECTRIC SILENT SHREDDER
2800W
SS2800
Important
- Please read these instructions fully before operating or maintaining your shredder
These instructions contain important information that will help you get the best
from your shredder, protecting your power tool investment.
ORIGINAL
INSTRUCTION
MANUAL
AFTERSALES SERVICE
01904 727505
MON-FRI 9am-5pm SAT/SUN 11am-4pm
www.spearandjackson-power.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Spear & Jackson SS2800
Summary of Contents for Spear & Jackson SS2800
- Page 1 ELECTRIC SILENT SHREDDER AFTERSALES SERVICE 01904 727505 2800W MON-FRI 9am-5pm SAT/SUN 11am-4pm SS2800 www.spearandjackson-power.com Important - Please read these instructions fully before operating or maintaining your shredder These instructions contain important information that will help you get the best from your shredder, protecting your power tool investment.
- Page 2 THANK YOU! Dear Customer, Thank you for choosing a Spear and Jackson shredder. Spear and Jackson was founded in 1760 in the city of Sheffield, which is world famous for the production of steel, cutlery and garden and hand tools. Through continuous innovation and the use of new technologies and materials, Spear and Jackson has gained an enviable reputation as a supplier of reliable, high performance and high quality products designed to make your work in the...
-
Page 3: Table Of Contents
CONTENTS Safety Information Description of symbols General safety Personal safety Operational safety Maintenance and storage safety Intended use Box Content / Parts Assembly Unpacking Handle assembly Fix the cable retain relief Fix the cable Assemble the grass bag Connection to the power supply Operation Setting cutting height Connection to the power supply... -
Page 4: Safety Information
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine DESCRIPTION OF SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the shredder. WARNING! Always set the ON/OFF switch to OFF and pull the power plug out This is a warning symbol. - Page 5 SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine DESCRIPTION OF SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the shredder. Changeover switch: For a description of the changeover switch.
-
Page 6: General Safety
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine GENERAL SAFETY with the machine. The operator or user IMPORTANT! Read all instructions. is responsible for accidents or hazards Failure to follow all instructions listed occurring to other people or the property. below may result in electric shock, fire Dress appropriately. - Page 7 SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine use, carefully check the tool for damage. away from walls or other rigid structures) on Check for alignment of moving parts, a firm, level surface. binding of moving parts, breakage of parts, Do not use the machine on a paved, ■...
-
Page 8: Personal Safety Y
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine corresponding to specifications, must not - Before moving or lifting the shredder be employed. Remove the plug immediately - If foreign objects should enter the from the plug socket in case of damage to shredder, if the shredder is making the mains cable. - Page 9 SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine Check all screws regularly to ensure that Remove the adjusting tools or wrench before ■ ■ they sit tight. switching the electrical tool on. A tool or a wrench caught in a rotating part of the Conversions, independent modifications ■...
-
Page 10: Maintenance And Storage Safety
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine Disconnect the product from the power bottles, cans or other foreign objects are ■ supply before carrying out maintenance or not included. cleaning work. Use only the manufacturer’s If the cutting mechanism strikes any foreign recommended replacement parts and ■... -
Page 11: Box Content / Parts
BOX CONTENT PARTS Feeding hopper Wheel Handle Wheel cover Safety switch Support foot On/Off switch Back cover Forward/Reverse switch Collection box Counter blade adjusting knob Push stick Plug Spanner Collection box lock button Allen wrench If there are any parts missing, please call the customer helpline on 01904 727505 www.spearandjackson-power.com AFTER SALES SUPPORT 01904 727505... -
Page 12: Assembly
ASSEMBLY Unpacking i. Unpack all parts and lay them on a flat, stable surface. ii. Remove all packing materials. iii. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact the aftersales service within 28 days of purchase. - Page 13 ASSEMBLY v. Insert the Allen wrench into wheel shaft to hold the shat, and use the supplied hex wrench to fix the wheels tightly. vi. Finally, place the wheel cover (G) in the center of the wheel. Install collection box i.
-
Page 14: Operation
OPERATION General operation i. Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. ii. Double check that accessories and collection box are properly fixed. - Page 15 OPERATION Overload protection This machine is equipped with an overload protection system. To protect the motor from being damaged, the safety switch will automatically switch off the power, when the motor is overloaded. Wait at least 1 minute before restarting by first pressing the safety switch (A) and then the On/Off switch.
- Page 16 OPERATION If you want to shred withered, damp material that has been ■ lying in the garden for several days, alternate between putting in this material and branches. This will help to prevent the loading funnel becoming clogged with material. Do not shred soft waste (e.g.
- Page 17 OPERATION iii. Take the shredded material debris box out at the front. www.spearandjackson-power.com AFTER SALES SUPPORT 01904 727505...
-
Page 18: Maintenance
MAINTENANCE Adjusting the counter blade There is an adjustment device on the right-hand side of the plastic housing for this purpose. Turn the knob (C) clockwise so that the screw moves towards the shredding blade. After a half turn the counter blade will have moved 0.50 mm closer to the shredding blade. - Page 19 MAINTENANCE Replace counter blade Important! Wear work gloves! Switch off the equipment and pull out the power plug. i. Release and remove the shredded material debris box. ii. Undo the knob for setting the counter blade by approx. 5 turns. iii.
- Page 20 MAINTENANCE Storage i. Store the product and its accessories in a dry, frost-free place. ii. Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10 and 30°C. Transportation i. Switch the product off and disconnect from power supply before transporting it anywhere.
-
Page 21: Technical Data
TECHNICAL DATA Model SS2800 Nominal voltage 230-240V~,50Hz Input power 2800W (S6 40%) No load speed 60 /min Max. Cutting Dia 44 mm Protection Class Protection degree IP24 Net weight 19.4 kg A weighted sound pressure 79.1dB(A) K : 3dB(A) A weighted sound power 91.7dB(A) KWA: 2.67dB(A) - Page 22 TECHNICAL DATA PART NUMBER ACCESSORIES 8031-60000501 Wheel 8151-660002 Collection box 8132-660001 Counter blade 8160-660001 Shedding blade Parts can be ordered via www.gardenservicecentre.co.uk AFTER SALES SUPPORT 01904 727505 www.spearandjackson-power.com...
-
Page 23: Troubleshooting
TROUBLESHOOTING Suspected malfunctions are often due to causes that the user can fix themselves. Therefore, check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself! Gloves and appropriate protective clothing must be worn when performing these... -
Page 24: Warranty
WARRANTY If your device develops a fault, please don’t hesitate to contact our customer service department on 01904 727505, we can solve 80% of problems via the phone. 1. These warranty terms cover additional warranty rights and do not affect your statutory warranty rights. -
Page 25: Ec Declaration Of Conformity
SUMEC UK Co.,Ltd. Unit A&B Escrick Business Park Escrick,York YO19 6FD Declare that the product Electric silent shredder Certification No: GY6610 Model No: SS2800 Function: Shredding branches Serial number: S-EO00001~S-EX99999 Complies with the following directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EU...
