The Data Receiver is available in different casing designs depending on the camera model.
However, the control functionality is consistent throughout the range. The different
casings available allow the unit to function with most popular makes and models of
camera.
NOTE: The connections and LED's may differ slightly between versions.
There are four main designs of data receiver that are attached to the camera body.
These four designs comprise of:

Built-in Sony version

Built-in Grass Valley version

Built-in Clip-on4 version

Small standalone version
The Data Receiver Module responds to the OCP/RCP through the FocalPoint Camera
Control Data Transmitter system. The commands provided by the OCP/RCP are modulated,
then demodulated, before being applied to the appropriate camera control lines. The data
receiver also holds the information to respond to the camera. The camera is not under
instruction from the OCP/RCP.
All of the Data Receivers have a Carrier LED. This will only flash when data is received e.g.
when the OCP/RCP joystick is moved.
Issue No: M
Ref: FOCL-ASUM-8xxx

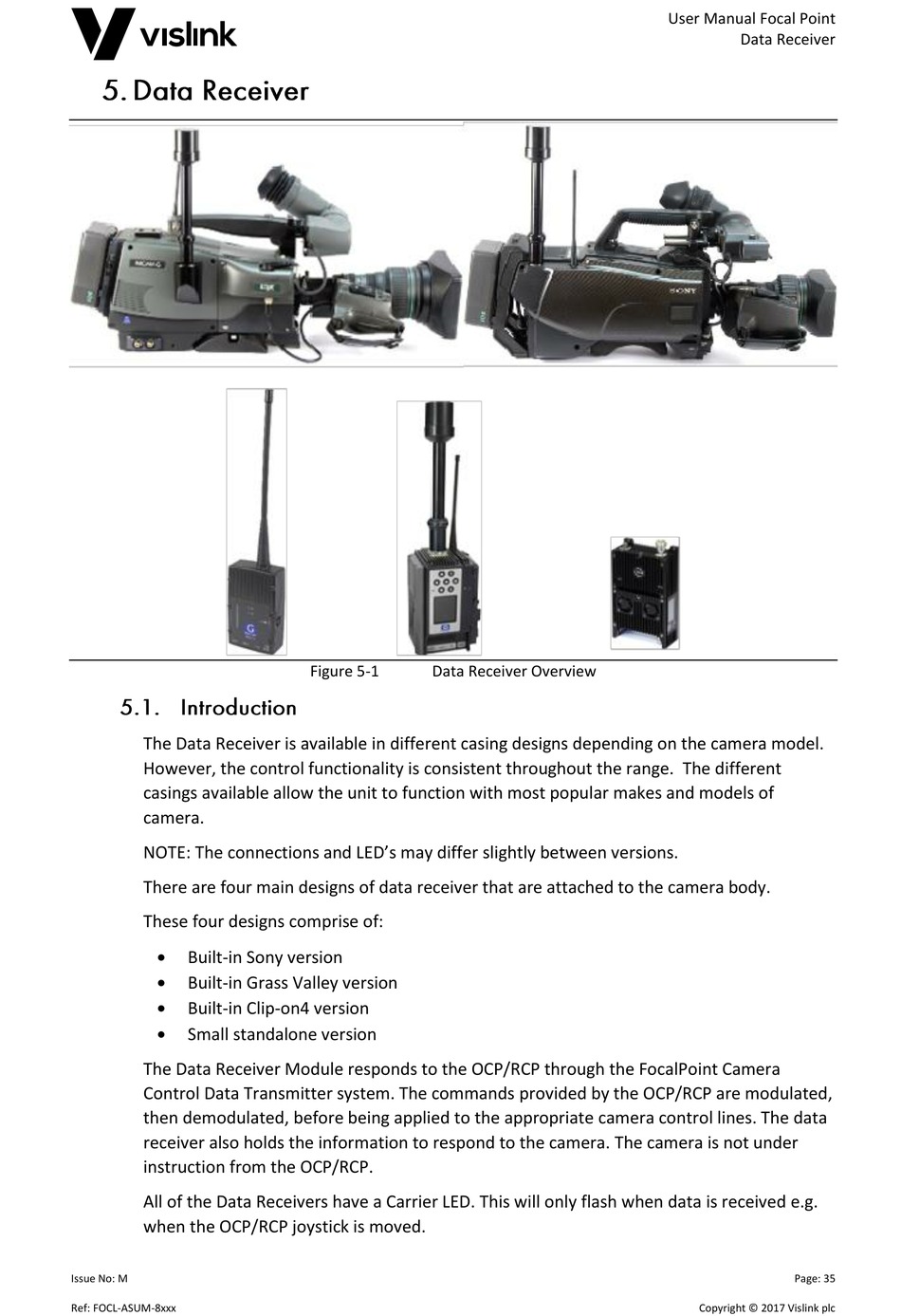

Figure 5-1 Data Receiver Overview
