The DUT (K2 hub) is a security enabled Z-Wave Plus product that is able to use
encrypted Z-Wave Plus messages to communicate to other security enabled Z-Wave
Plus products.
Please refer to K2 Smart Hub User manual for details to configure the Wi-Fi
connection before using the K2 Hub.
1. Install the DUT (smanos K2 Smart Hub) .................................................................. 2
1.1. Download the "smanos home" App ................................................................. 2
1.2. Sign Up/In ........................................................................................................ 2
1.3. Setup the K2 Smart Hub .................................................................................. 2
2. Certification Product Documentation ........................................................................ 3
D.2 Controllers - Inclusion / Exclusion ......................................................................... 3
I. Inclusion: ............................................................................................................. 3
II. Exclusion: ........................................................................................................... 4
From Z-Wave network:........................................................................................... 4
From controller's memory ...................................................................................... 5
D.3 Controllers - Replication ........................................................................................ 5
D.4 Controllers - Learn Mode ....................................................................................... 5
D.5 Controllers - Including the DUT ............................................................................. 5
D.6 Controllers - Basic Documentation ......................................................................... 6
D.12 Documentation related to BASIC commands ....................................................... 6
D.13 Documentation for Factory Default Reset ............................................................ 6
D.17 Documentation for S2 Security CC ...................................................................... 7
1.1.2 to remove the failed node:..................................................................................... 7
1.2 to replace the failed node: ........................................................................................ 8
II. Device Attribute ........................................................................................................ 9
smanos K2 Smart Hub
Contents
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Smanos K2
Summary of Contents for Smanos K2
-

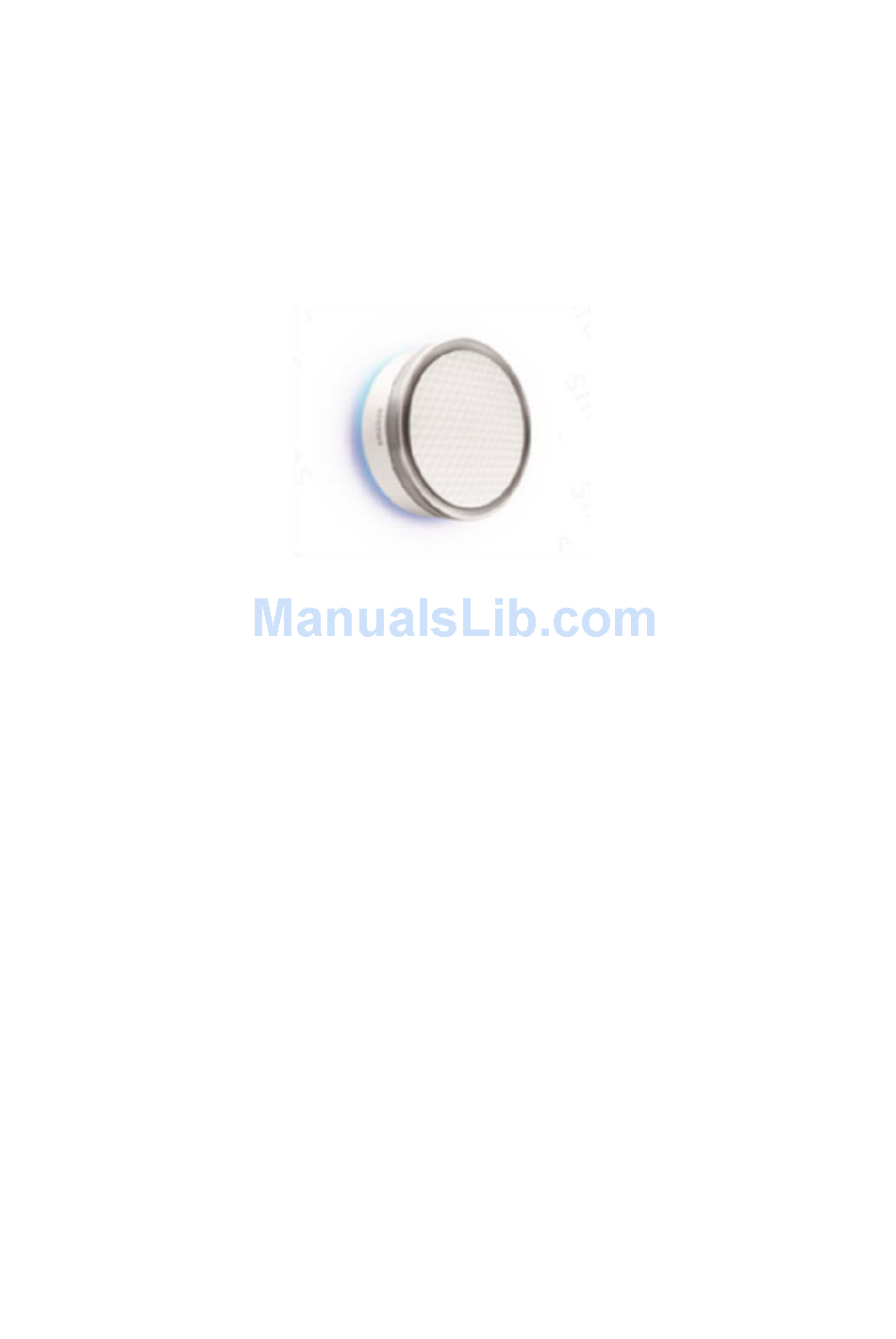

Page 1: Table Of Contents
K2 Smart Hub The DUT (K2 hub) is a security enabled Z-Wave Plus product that is able to use encrypted Z-Wave Plus messages to communicate to other security enabled Z-Wave Plus products. Please refer to K2 Smart Hub User manual for details to configure the Wi-Fi connection before using the K2 Hub. -
Page 2: Install The Dut (Smanos K2 Smart Hub)
K2 Hub with your home Wi-Fi. 1.3. Setup the K2 Smart Hub 1. Plug the power adapter into a wall socket and into the K2 Hub, slide the Power Switch from OFF to ON, wait until the white light flashes blue. -
Page 3: Inclusion
of the accessories list. Click “+” icon on the up-right corner (of the accessories list page) to enter the device selection page. 2. Press the “Z-Wave Products” and “START INCLUSION” to add the Z-Wave device. * The list (from Keypad to Glass Break Detector) is for adding the proprietary RF devices. -
Page 4: Exclusion
II. Exclusion: Deleting the device will remove it from both the Z-Wave network and the controller’s memory. From Z-Wave network: 1. Click [ ] icon on the up-right corner and select [ ] icon to enter the interface of the accessories list. 2. -
Page 5: From Controller's Memory
From controller’s memory 1. Click [ ] icon on the up-right corner and click on the [ ] icon into the "Setting" interface. 2. Click "Delete Z-Wave" Device into the delete mode, and the device can be removed from the learning mode. D.3 Controllers –... -
Page 6: Controllers - Basic Documentation
"Learn mode" mode. The DUT will wait for other controllers to add for inclusion. D.6 Controllers - Basic Documentation If the DUT receives a basic command, it will not do anything. D.8 Devices from multiple manufacturers in one network The DUT can be operated in any Z-Wave network with other Z-Wave certified devices from other vendors. -
Page 7: Documentation For S2 Security Cc
3. Click "Reset" and the DUT will start restoring factory settings of the Z-Wave module. 4. Click "Cancel" and the DUT will cancel the restoring factory settings. D.17 Documentation for S2 Security CC D.19.1 How to activate any functionality available in the device related to Z-Wave behavior. -
Page 8: To Replace The Failed Node
2. Click " " and then "Cancel" in the pop-up box to cancel removing the failed node. To replace the failed node: Click "Aborted Device Management", and the DUT enters the failed node management page. 1. Click " " and then "Continue" in the pop-up box to replace the failed node. After the DUT enters the Add mode, set the accessory to be added to the learning mode. -
Page 9: Device Attribute
1. The initial password of DUT’s network management is ‘111111’, the effective time is 5 minutes each time. After 5 minutes, it needs to re-enter the password. 2. Click 'Change Z-Wave Password', the password can be modified to enter the old password once and new password two times. - Page 10 2. Select the Z-Wave device and enter the attribute page.
- Page 11 3. On attribute page, user can do the followings: to edit the device name to locate the device (ex. installed in the Living Room) to control the device . to control the plug (ex. turn on/off the light) . to control the dimmer (ex. moving the control bar to adjust the brightness.) .
- Page 12 . to control a thermostat Mode: to setup the thermostat function mode. Set Point: to setup values (ex. temperatures that the thermostat should work on). Fan Mode: to setup the fan mode. 3. to setup the advanced features of the device Association .
- Page 13 . Click "Advanced" and then "Configuration" . Enter the desired parameter number (it can be found on the device menu) . Select "Default" or “Customize" Default: the device is to be configured as factory settings. Customize: user is able to configure the device. .
- Page 14 COMMAND_CLASS_SWITCH_BINARY: If a switch is added and it supports this command, then access the device's attribute interface, the DUT will use this command to control the device through the ON/OFF buttons. COMMAND_CLASS_CONFIGURATION： When a device is added to the network and it supports this command, then enter the advanced settings in the device's attribute interface, the DUT will use this command to set the configuration of the device.
- Page 15 COMMAND_CLASS_SWITCH_MULTILEVEL: When a dimmer is added and it supports this command, then access the device's attribute interface, the DUT will use this command to control the dimmer by moving the control bar. COMMAND_CLASS_NO_OPERATION: The DUT will use this command to check if a node is reachable or not. COMMAND_CLASS_NOTIFICATION: When a device is added to the network and it supports this command, the DUT will use this command to obtain the notification type that is supported by the device.
- Page 16 status of the thermostat. COMMAND_CLASS_VERSION: When a device is added to the network and it supports this command, the DUT will use this command to obtain the version information of the device. COMMAND_CLASS_WAKE_UP: When a device is added to the network and it supports this command, the DUT will use this command to obtain the wake-up interval of the device.
