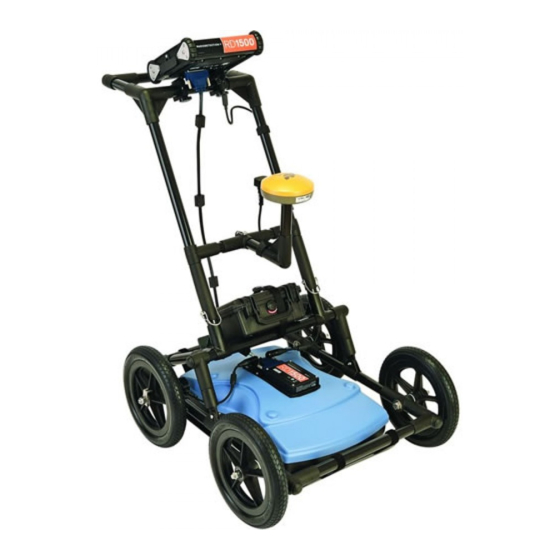

RD1500
Quick Start Guide – Assembly Procedure
1
You will find the following components in your RD1500 box.
Some of these may already be assembled.
Cart handle
Battery
Handle pin
Cart base
Sensor support
straps
Battery charger
3
Attach the GPR Sensor to the Cart using the
Sensor Support Straps. Ensure the Sensor is
oriented the correct way with the connections
toward the back of the Cart. Using the
Sensor Support Straps, adjust the
height of the Sensor so it is 1-2 cm
(½ – ¾ inch) above the ground.
5
Attach the Display Cable to the back of the Display
Unit with the jackscrews. Connect the other end of
the cable to the Sensor. Ensure the cable is routed
as shown below.
Radiodetection Ltd. (UK) Western Drive, Bristol BS14 0AF, UK. Tel: +44 (0) 117 976 7776 rd.sales.uk@spx.com
Radiodetection 28 Tower Road, Raymond, Maine 04071, USA. Tel: +1 (207) 655 8525 Toll Free: +1 (877) 247 3797 rd.sales.us@spx.com
To find your local office, please visit: www.radiodetection.com
Copyright © 2016 Radiodetection Ltd. All rights reserved. Radiodetection is a subsidiary of SPX Corporation. Radiodetection and RD1500 are trademarks of Radiodetection in the United
States and/or other countries. Due to a policy of continued development, we reserve the right to alter or amend any published specification without notice. This document may not be copied,
reproduced, transmitted, modified or used, in whole or in part, without the prior written consent of Radiodetection Ltd.
90/RD1500-ASSEMBLY-ENG/01
Display unit tray
GPR sensor
Odometer cable
Display
cable
Display unit
Battery cable
2
Attach the Cart Handle to Cart Base using the Handle Pins.
Ensure the Display Unit Tray is facing the operator.
4
Attach the Display Unit onto the Display Unit Tray on the Cart.
The Display unit slides down into
the tray, catching on both sides
of the mount and is held in
place with the pull pin. When a
click is heard, the Display Unit is
firmly in place.
6
Attach the Odometer and Battery Cables. The Odometer Cable
connects to the closest receptacle on the Sensor. Attach the Battery
Cable to the Sensor and the Battery.
The system is now ready to use.
Display cable
Odometer
cable
Battery cable
