Rhydolabz eCee NXP LPC 2148 Quick Start Manual

Arm development board
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

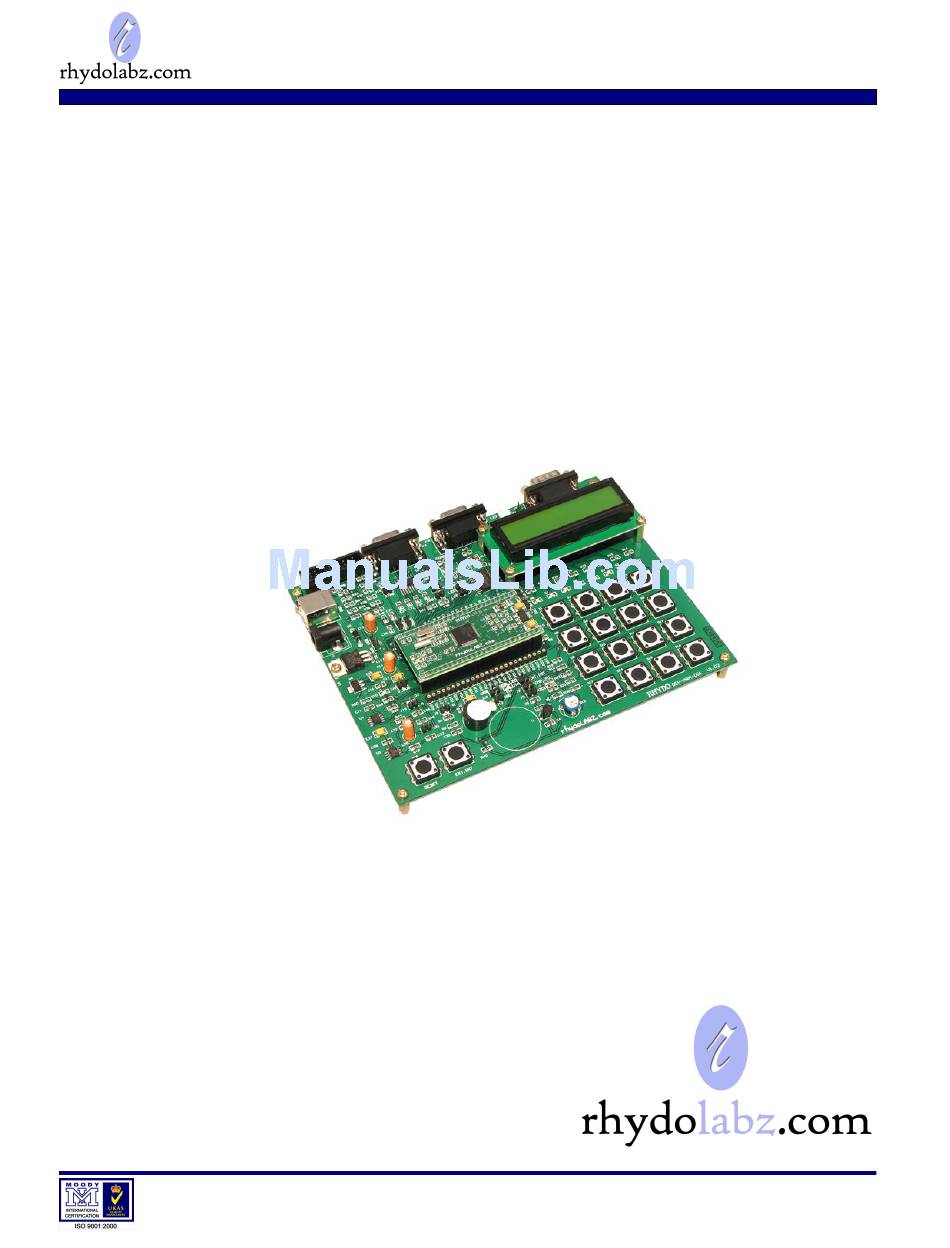

www.rhydolabz.com
Document :
Datasheet
Model # :
DEV - 1127
Date
:
11-Dec-07
eCee NXP LPC 2148
ARM Development Board

Quick Start Guide

Rhydo Technologies (P) Ltd.
(An ISO 9001:2008 Certified R&D Company)
Golden Plaza, Chitoor Road,
Cochin – 682018, Kerala State, India
Phone
: 0091- 484-2370444, 2371666
Cell
: 0091- 99466 70444
Fax
: 0091 - 484-2370579
E-mail : info@rhydolabz.com,
sales@rhydolabz.com
WebSite : http://www.rhydolabz.com
We bring the world to you..

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eCee NXP LPC 2148 and is the answer not in the manual?

Questions and answers

Related Manuals for Rhydolabz eCee NXP LPC 2148

Summary of Contents for Rhydolabz eCee NXP LPC 2148

  • Page 1: Quick Start Guide

    Document : Datasheet Model # : DEV - 1127 Date 11-Dec-07 eCee NXP LPC 2148 ARM Development Board Quick Start Guide Rhydo Technologies (P) Ltd. (An ISO 9001:2008 Certified R&D Company) Golden Plaza, Chitoor Road, Cochin – 682018, Kerala State, India...
  • Page 2 NXP LPC 2148 Function Module  Interface Overview  Power  Clock source CHAPTER-3 : INTERFACING eCee LPC 2148  Connecting the eCee NXP LPC 2148 Development Board  Programming Steps  Automatic mode  Manual mode We bring the world to you..
  • Page 3 CHAPTER-1: OVERVIEW We bring the world to you..

  • Page 4: Base Board Features

    The eCee LPC 2148 Development and Evaluation Board from RhydoLabz can be used to evaluate and demonstrate the capabilities of NXP LPC 2148 microcontrollers. The board (with a base board and header board) is designed for general purpose applications and includes a variety of hardware to exercise microcontroller peripherals.
  • Page 5  On Board Connector for Analog Output  On Board Speaker Output  LF Amplifier LM 386  Adaptor (any standard 9-12V power supply) option  On Board Power LED Indicator  On Board Reset button  All Port Pins available at Berge Strip ...
  • Page 6 LPC 2148 PACKAGE INCLUDES  Fully Assembled and Tested eCee LPC2148 Development board  Software CDROM with  Schematic  Programming Software  Sample Hex Code  Example Codes  Led Blinking LCD Display  Matrix Keyboard USB Communication ...
  • Page 7 LPC 2148 SPECIFICATION  High Performance 32-bit ARM7TDMI-S™ CPU  512 KB Programmable Flash Memory provides minimum of 10,000 erase/write cycles and 10 years of data-retention.  32 KB + 8 KB Data Memory (SRAM)  Provides 8KB of on-chip RAM accessible to USB by DMA ...
  • Page 8 CHAPTER-2: HARDWARE INTRODUCTION We bring the world to you..

  • Page 9: Function Module

    FUNCTION MODULE We bring the world to you..

  • Page 10: Interface Overview

    INTERFACE OVERVIEW LCD CONTRAST CAN PORT SERIAL PORT (For INTERFACE (COM0) SERIAL PORT INTERFACE (COM1) LCD DISPLAY MAX3232 LED ARRAY JTAG CONNECTOR USB POWER INTERFACE DC ADAPTER PLUG IN 5V REGULATOR IC HEADER BOARD WITH LPC 2148 & CIRCUITRY...

  • Page 11: Power Supply

    POWER SUPPLY eCee NXP LPC 2148 Board has two power supplies; you can choose one of the following ways to supply power (1) Through an Adaptor (any standard 9-12V power supply) (2) Through the motherboard USB port The external Power Supply circuit is given below:...
  • Page 12 CHAPTER-3 : INTERFACING eCee LPC 2148 We bring the world to you..
  • Page 13 CONNECTING THE DEVELOPMENT BOARD The eCee LPC 2148 requires a 9V-12V adapter or USB connection for power and either a serial connection for In-system programming, or the JTAG connector. Use LPC2000 Flash Utility Software at the PC side for programming through Serial port.

  • Page 14: Programming Steps

    PROGRAMMING STEPS eCee NXP LPC 2148 development board supports two modes of programming I. AUTOMATIC MODE 1. Configure LPC Flash Utility software at the PC side Browse your hex file here. Select Crystal frequency here. Enable DTR/RTS for Reset and boot loader selection.

  • Page 15: Manual Mode

    II. MANUAL MODE 1. Configure LPC Flash Utility software at the PC side Browse your hex file here. Select your COM port and Set baud rate (4800) here. Disable DTR/RTS for Reset and boot loader selection. 2. Connect system serial port to COM port of eCee LPC 2148 .
  • Page 16 Use of the product software and or hardware is with the understanding that any outcome whatsoever is at the users own risk. All products are tested for their best performance before shipping, still rhydoLABZ is offering One year Free service warranty (Components cost + Shipping cost will be charged from Customer).
