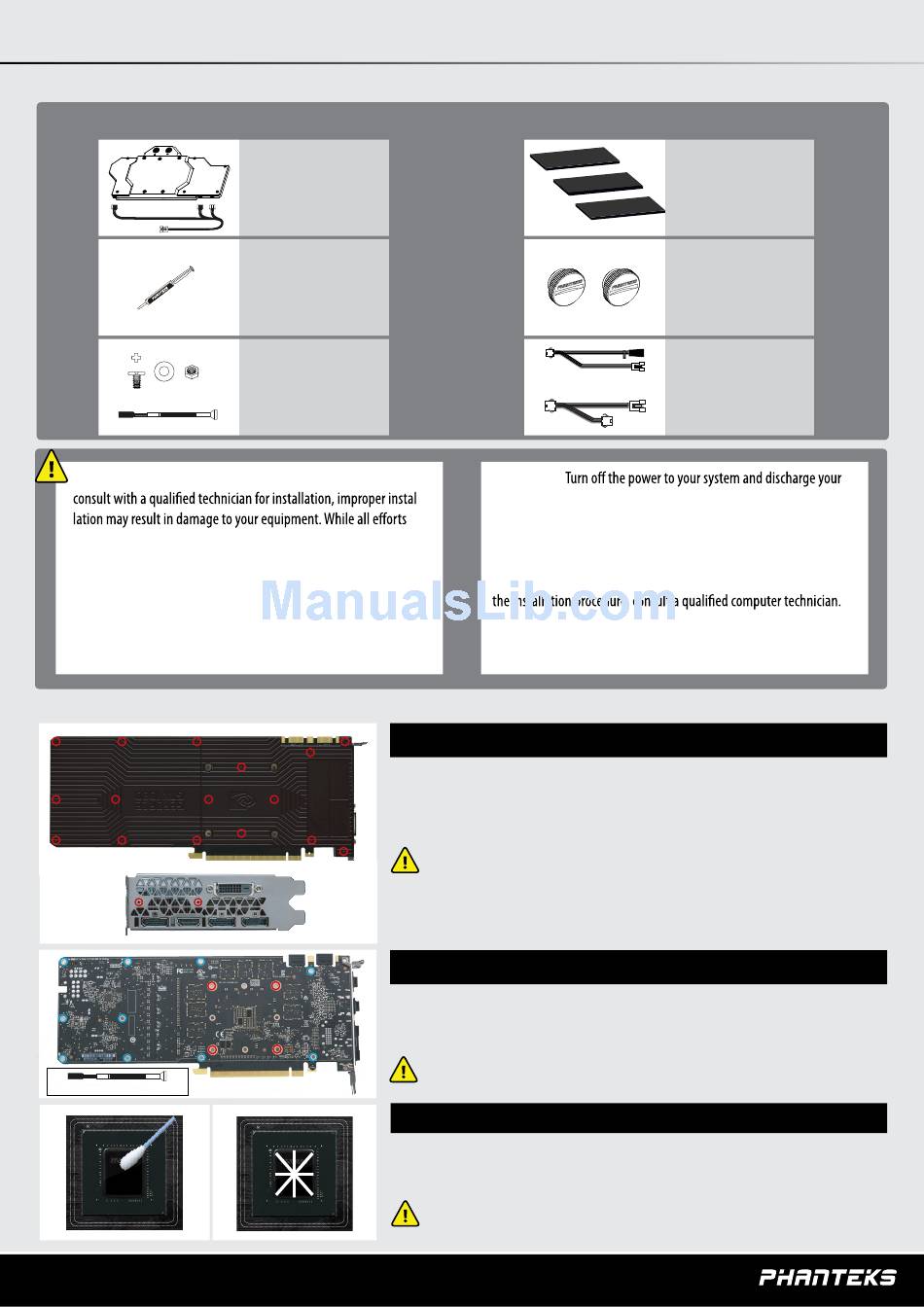

Phanteks Glacier G1080 Installation Manual

Phanteks Glacier G1080
PH-GB1080FE_CBKLD_01

PACKAGE CONTENTS

DISCLAIMER

- This product is intended for advanced users. Please
have been made to provide the most comprehensive information
possible, Phanteks assumes no liability expressed or implied for
any damage(s) occurring to your components as a result of using
Phanteks cooling products, either due to mistake or omission on
our part in the below instructions, or due to failure or defect in the
Phanteks cooling products.

INSTALLATION

H4 Hex Socket Wrench needed
Glacier G1080 Water Block
with pre-installed RGB LED
QTY: 1
RGB LED Cable
QTY: 1
Thermal Compound (PH-NDC_01)
QTY: 1
M2.5x5, washers QTY: 20
Hex Nuts QTY: 4
H4 Hex Socket Wrench
QTY: 1
-

STEP 1. REMOVING FACTORY PROVIDED BACKPLATE

REMOVE ALL HIGHLIGHTED SCREWS. ALL HEAT SINK ASSEMBLY SCREWS SHOULD BE REMOVED,
INCLUDING SELF-ADHESIVE WASHERS ON BOTH SIDES OF THE PCB (IF PRESENT).
STEP 2.
UNFASTEN THE SCREWS AND USE THE PROVIDED H4 HEX SOCKET WRENCH TO REMOVE THE HEX
AGONAL SPACER-SCREWS (BLUE CIRCLES). AFTER YOU REMOVE THE HOUSING, DO NOT FORGET
TO UNPLUG THE FAN.

STEP 3. APPLYING THERMAL COMPOUND

WIPE OFF THE REMAINS OF THE ORIGINAL THERMAL COMPOUND UNTIL COMPONENTS AND
CIRCUIT BOARD ARE COMPLETELY CLEAN (WE RECOMMEND USING A ISOPROPANOL CLEANING
PAD) . APPLY A LIGHT COAT (SEE IMAGE) OF THE PH-NDC_01 THERMAL PASTE.
WARNING -
body's static electric charge by touching a grounded surface – for
example, the metal surface of the power supply or chassis – before
performing any hardware procedure. Phanteks assumes no liability
for any damage, caused directly or indirectly, by improper installation
of any components. If you do not feel comfortable with performing
*Please do not disassemble the water block. Warranty will be voided.
MAKE SURE TO REMOVE THE TWO SCREWS LOCATED ON THE I/O
USE LATER IN STEP 5.
REMOVING STOCK COOLER
MAKE SURE TO KEEP THE HEXAGONAL SPACER-SCREWS ASIDE FOR LATER USE (STEP 5).
APPLY THERMAL COMPOUND: LIGHTLY COAT NVIDIA GPU CHIP WITH ENCLOSED THERMAL PASTE.

INSTALLATION GUIDE

Thermal Pads
QTY: 3
Description:
For applying on circuit board on GPU
Phanteks Plugs
QTY: 2
Phanteks Motherboard RGB
Adapter
QTY: 1
RGB LED ADAPTER
RGB Y-Splitter
QTY: 1
KEEP THE SCREWS ASIDE TO
.
