Phanteks Glacier G1080 Installation Manual

Phanteks Glacier G1080
PH-GB1080GB_BK01/CR01

PACKAGE CONTENTS

DISCLAIMER

- This product is intended for advanced users. Please
have been made to provide the most comprehensive information
possible, Phanteks assumes no liability expressed or implied for
any damage(s) occurring to your components as a result of using
Phanteks cooling products, either due to mistake or omission on
our part in the below instructions, or due to failure or defect in the
Phanteks cooling products.

INSTALLATION

Glacier G1080 Water Block
(GIGABYTE GTX 1080 G1 Gaming )
QTY: 1
Thermal Compound (PH-NDC_01)
QTY: 1
M2.5x5
QTY: 11 (spare 4 pcs.)
-

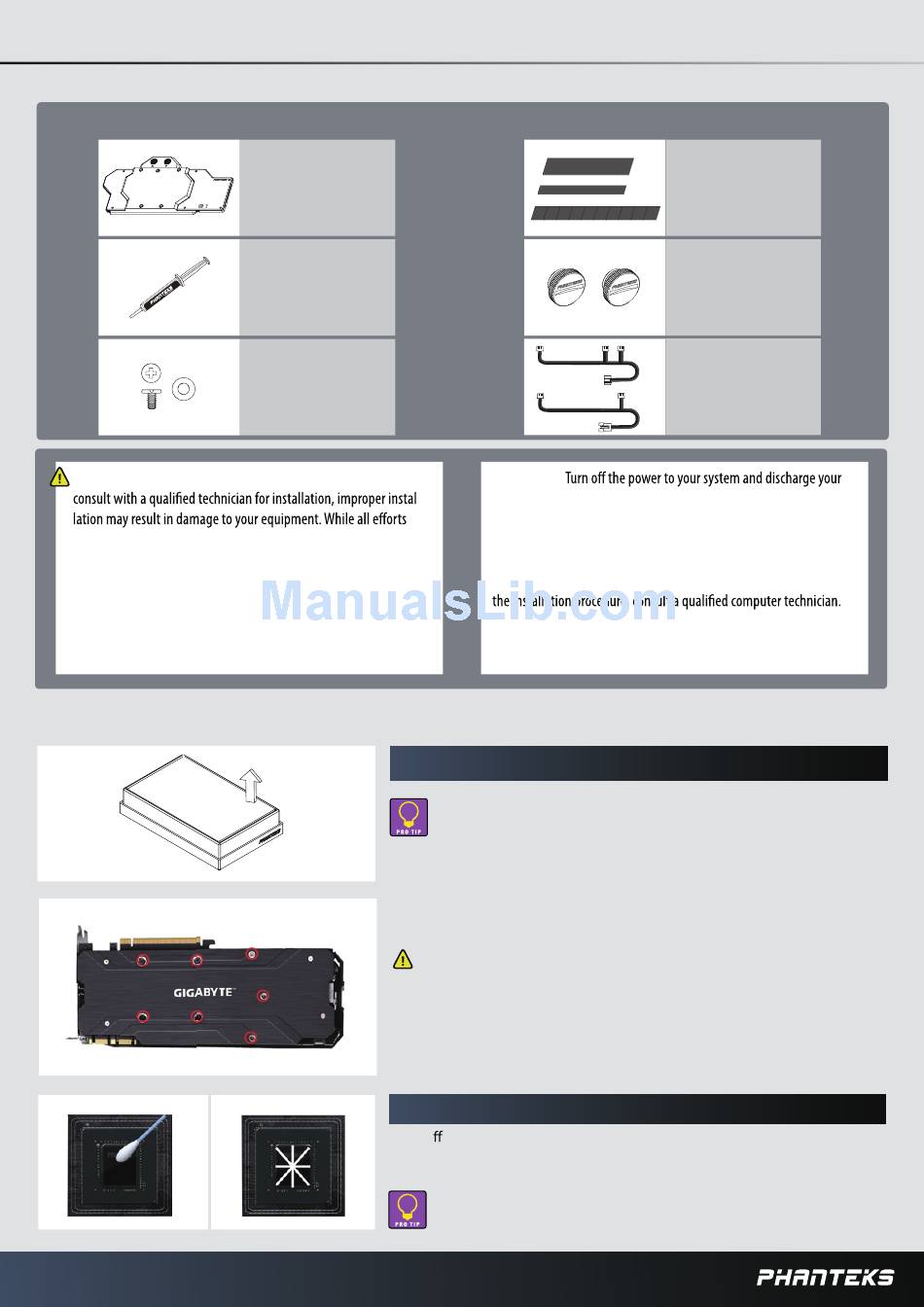

STEP 1. REMOVING STOCK COOLER

Remove all highlighted screws. All heat sink assembly screws should be removed,
including self-adhesive washers on both sides of the PCB (if present).

STEP 2. APPLYING THERMAL COMPOUND

Wipe o the remains of the original thermal compound until components and
Circuit board are completely clean (we recommend using a isopropanol
cleaning pad). Apply a light coat (see image) of the PH-NDC_01 thermal paste.
GIGABYTE G1 GAMING
WARNING -
body's static electric charge by touching a grounded surface – for
example, the metal surface of the power supply or chassis – before
performing any hardware procedure. Phanteks assumes no liability
for any damage, caused directly or indirectly, by improper installation
of any components. If you do not feel comfortable with performing
*Please do not disassemble the water block. Warranty will be voided.
TAKE OUT THE TOP EVA-FOAM LAYER FROM THE BOX TO USE AS BASE FOR YOUR GPU PLACEMENT.
MAKE SURE TO UNPLUG THE FAN AND RGB LED CABLES WHEN YOU REMOVE THE HOUSING.
LIGHTLY COAT NVIDIA GPU CHIP WITH ENCLOSED THERMAL PASTE.
INSTALLATION GUIDE
Thermal Pads
QTY: 3
Description:
For applying on circuit board on GPU
Phanteks Plugs
QTY: 2
Phanteks RGB Cable
QTY: 1
Phanteks RGB Cable for Phanteks Case
QTY: 1
