Heat Link SSPLR106T Installation, Operation And Maintenance Manual

Ssp series manifold pump panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

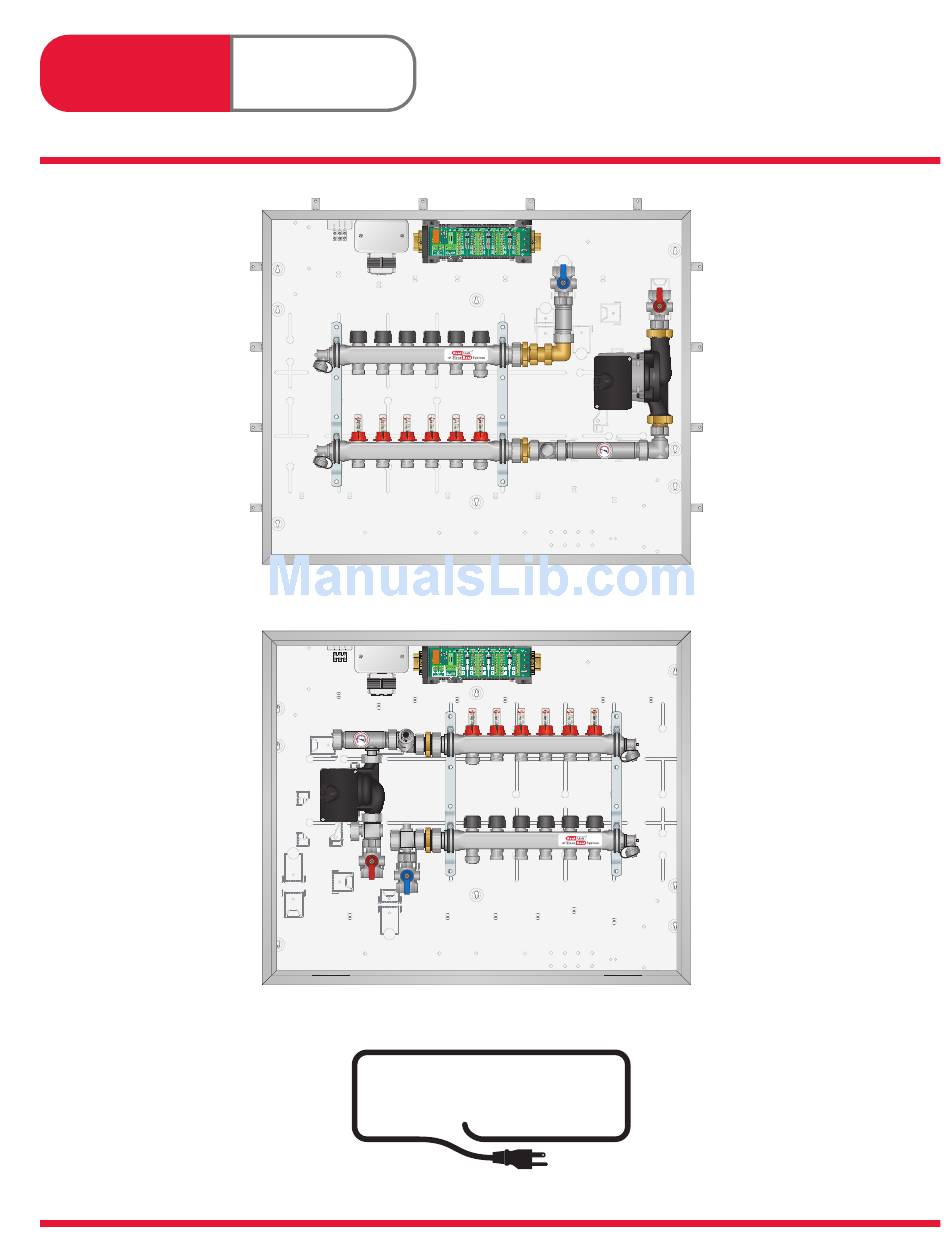

Heat
®
Link
CAUTION 115 VOLTS ONLY
SSPLR106T
CAUTION 115 VOLTS ONLY
40
60
20
80
0
100
°C
°F
SSPSS106B
MECHANICAL
ROOM IN A BOX
SSP Series
SS Manifold Pump Panel
Installation, Operation, and Maintenance Manual
40
60
20
80
0
100
°C
°F
™
L6SSPxx000x

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSPLR106T and is the answer not in the manual?

Questions and answers

Related Manuals for Heat Link SSPLR106T

Summary of Contents for Heat Link SSPLR106T

  • Page 1 ® SSP Series Heat Link SS Manifold Pump Panel Installation, Operation, and Maintenance Manual CAUTION 115 VOLTS ONLY °C °F SSPLR106T CAUTION 115 VOLTS ONLY °C °F SSPSS106B ™ MECHANICAL ROOM IN A BOX L6SSPxx000x...

  • Page 2: Table Of Contents

    ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com Table Of Contents Warnings ........................3 Tools Needed .......................3 Function .........................4 Unpacking ........................5 Panel Components ....................6-7 Specifications .......................8 Panel Component Specifications .................9-14 Manifold Balancing ....................11 Recessed Housing Mounting .................15-16 Surface Mount Housing Mounting ..............17 Piping Hookup ......................18 Fill and Purge .......................19...

  • Page 3: Warnings

    ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com Warnings The zone control panel is for indoor use only and must be installed by a qualified installer/service technician. This product must be installed and operated in strict accordance with the terms set out in this manual and in accordance with the relevant requirements of the Local Authority Having Jurisdiction.

  • Page 4: Function

    ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com Function This panel can provide distribution, and zoning for a wide variety of hydronic heating applications. The effectiveness of the system is dependant on the system being designed and installed correctly. Proper consideration of factors such as BTU loads, outdoor design temperature, indoor design temperature, room set-point temperature(s), differential fluid temperatures, head loss, flow rates, and transfer capacities of the heat emitters is critical.

  • Page 5: Unpacking

    ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com Unpacking Step 1 Examine carton for any damage that may have occurred during shipping. If damage is visible notify your courier and supplier immediately. Step 2 Open the carton by removing the strapping. Step 3 Remove the cardboard spacers from the carton, then remove the panel from the carton.

  • Page 6: Panel Components

    ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com Panel Components Part Number Component SSPSx1xxx SSPLx1xxx SSPLx2xxx Primary Pump PUMP1558 PUMP2699 PUMP2699 Stainless Steel Manifold 76100 series 76100 series 76200 series Flow Meter Valve Insert (supply) 76916 76916 (0-1.5 US gpm lock nut)
  • Page 7 ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com CAUTION 115 VOLTS ONLY 106030C °C °F SSPLR106T CAUTION 115 VOLTS ONLY °C °F SSPSS106B...

  • Page 8: Specifications

    ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com Specifications SSPSx104x SSPSx106x SSPSx108x SSPSx110x SSPSx112x Nominal panel output 45,000 Btu/h 62,000 Btu/h 78,000 Btu/h 90,000 Btu/h Nominal flow 4.5 US gpm @ 6.2 US gpm @ 7.8 US gpm @ 9.0 US gpm @ 20°F ∆T...

  • Page 9: Panel Component Specifications

    ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com Panel Component Specifications StatLink® 6 Zone Base Module (40226) The StatLink® base module connects room thermostats to their corresponding actuators. Each zone has an LED which indicates if it is calling for heat.
  • Page 10 ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com Circulator The circulators moves the heated fluid through the hydronic system when there is a call for heat from the thermostat. Factory set to 3 speed. Specifications: •...

  • Page 11: Manifold Balancing

    ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com Stainless Steel Manifold Specifications: • Material: Stainless Steel EN 1.4301 (X5CrNi18-10) which is equivalent to SAE 304 (V2A) • Maximum Trunk Flow Rate: 18 US gpm (4.1 m3/h) •...
  • Page 12 ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com 76100 Series (Flow Meter) Friction Head Graph Stainless Steel Manifold # of turns from closed position 0.25 0.75 30 (90) 10 (30) 5 (15) 1 (3) 0.5 (1.5) 0.1 (0.3) 0.05 (0.15)
  • Page 13 ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com 76200 Series (High Flow) Friction Head Graph Stainless Steel Manifold # of turns from closed position 0.25 0.75 30 (90) 10 (30) 5 (15) 1 (3) 0.5 (1.5) 0.1 (0.3) 0.05 (0.15)
  • Page 14 ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com SSASLEM - Optional Installed StatLink®4 Zone Expansion Module (40234) The StatLink® 4 zone expansion module connects to the StatLink® 6 zone base module, allowing 4 more room thermostats to connect to their corresponding actuators.
  • Page 15 ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com Recessed Enclosure Mounting Step 1 Use a screwdriver or similar thin tool through the hole to bend the mounting tabs out 90 degrees from the enclosure. Step 2 If electrical wiring will be coming from the top, remove the appropriate knockouts.

  • Page 16: Recessed Housing Mounting

    ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com Recessed Housing Mounting continued Step 4 Lift and place the panel onto the supporting frame. This panel is heavy; 2-3 person lift required. Step 5 Complete the supporting frame by adding a top plate. Be sure to drill corresponding holes in the top plate if any knockouts were removed.

  • Page 17: Surface Mount Housing Mounting

    ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com Surface Mount Housing Mounting Wall Stud Prior to mounting the panel, ensure the wall is capable of supporting the weight of the panel. Step 1 Determine the locations and distance between the wall studs.

  • Page 18: Piping Hookup

    ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com Piping Hookup SSPLR106T shown Primary Primary Return Supply Step 1 Before making any connections, identify the CAUTION 115 VOLTS ONLY required connections to and from the panel.

  • Page 19: Fill And Purge

    ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com Fill And Purge SSTL Series top feed The following steps are recommended in order to fill the panel with water and purge entrained air once piping is completed, and before activation of the panel.

  • Page 20: Panel Wiring

    ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com Panel Wiring Note: Terminal headers are removable to make wiring connections easier. Thermostat Wiring • 24V low voltage power may be supplied to the thermostat. Wiring of thermostat should be done by qualified electrician and should meet local codes and jurisdictions.

  • Page 21: Panel Control Sequence & Wiring

    ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com Panel Control Sequence When power is provided to the 120V terminals connected to the power module , the transformer provides 24V power to the StatLink® Base Module. When the thermostat calls for heat, its internal 24V contacts close, the StatLink®...

  • Page 22: Troubleshooting

    ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com Troubleshooting Problem Check / Verify Possible Cause Low Temperature Within Room Misplacement of thermostat location within Make sure thermostat is not being influenced room. by an additional heat source, such as lighting or air duct.
  • Page 27 ® Heat Link Installation, Operation, and Maintenance SSPxx000x – SS Manifold Pump Panels www.heatlink.com...

  • Page 28: Mechanical

    Canada Manufactured & distributed by HeatLink Group Inc. Head Office: 4603E - 13 Street N.E. Calgary, Alberta, T2E 6M3 Toll Free: 1-800-661-5332 International Phone: +1 (403) 250-3432 Fax: 1-866-450-1155 China Distributed by Cathay-Links International Phone: 852-25693213 Fax: 852-25359271 Ireland Distributed by Jamoni Ltd. Phone: 057 - 932 4062 Fax: 057 - 932 4063 Freephone: 1800-311338...
