Summary of Contents for cycliq Fly12 CE122

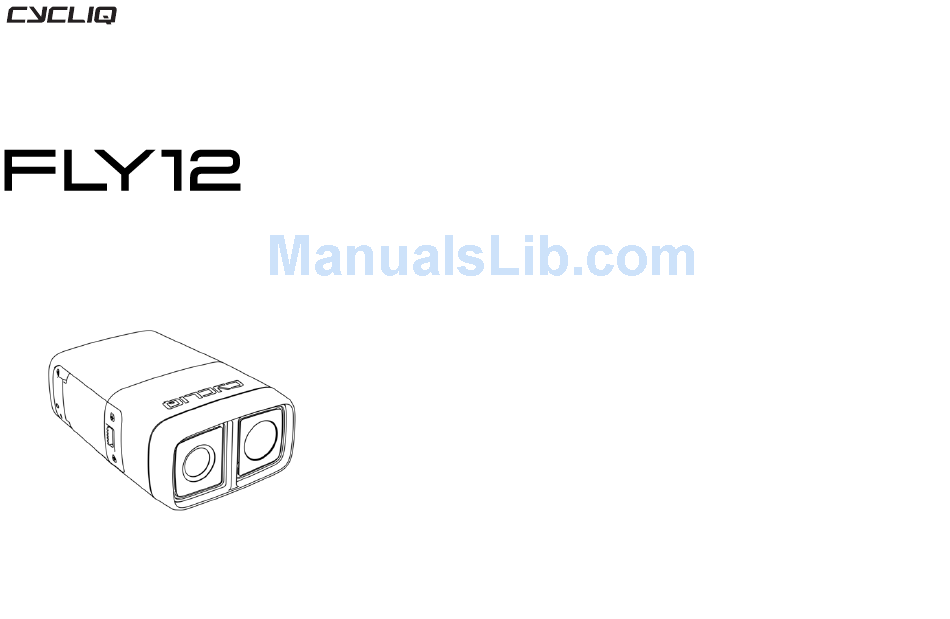

  • Page 1 Fly12 CE122 Instruction Manual CE122...
  • Page 2: Table Of Contents

    Electronic image stabilisation Changing your Fly12 CE settings High dynamic range Registering your Fly12 CE Looping function Manual footage capture Read this before your set-up your Fly12 CE122 Incident protection function Disclaimer HomeSafe™ function Warning against copyright infringement Bike alarm...
  • Page 3: What' In The Box

    1 x Universal mount adapter 1 x Safety information and warranty sheet 1 x M5 screw for universal mounting adapter 1 x USB to USB-C cable 1 x 22.2mm rubber handlebar adapter 1 x Safety tether FLY12 CE122 – User Manual...
  • Page 4: Functions

    Full HD video and stereo audio recording Multiple light modes Looping recording for set and forget use Incident protection technology 6-axis image stabilisation HomeSafe™ function Bike alarm Idle mode Audio recording Ultra-wide viewing angle Audible status alerts Bluetooth and ANT+ connectivity FLY12 CE122 – User Manual...
  • Page 5: Changing Your Fly12 Ce Settings

    Fly12 CE and turn the device on and off from your compatible Garmin bike computer. See Garmin Connect IQ information on page 20. To download our CycliqPlus Connect app, go to apps.garmin.com or visit Connect IQ via your Garmin device. FLY12 CE122 – User Manual...
  • Page 6: Registering Your Fly12 Ce

    Read this before you set-up your Fly12 CE122 Disclaimer Fly12 CE122 is designed specifically to be used as a front light with video and audio capabilities for bicycles. While every effort has been made to ensure it will fit most bicycles on the market, it may not fit all bicycles, depending on how the bike is set up.
  • Page 7: Safety, Operating And Care Information

    Please ensure it is closed completely prior to • operation (unless using in dashcam mode, then see below on page 26). Cycliq does not accept any liability for damage caused by non-compliance with these instructions or any • other improper use or mishandling.
  • Page 8: Fly12 Ce Layout

    Fly12 CE layout – Front FLY12 CE122 – User Manual...
  • Page 9 Fly12 CE Layout – Back FLY12 CE122 – User Manual...
  • Page 10 Fly12 CE Layout – Side FLY12 CE122 – User Manual...
  • Page 11 Fly12 CE Layout – Side FLY12 CE122 – User Manual...
  • Page 12 Fly12 CE Layout – Bottom FLY12 CE122 – User Manual...
  • Page 13 Fly12 CE layout – Top FLY12 CE122 – User Manual...
  • Page 14: Charging The Battery

    Note Fly12 CE122 is ‘Fast Charge’ compatible and accepts up to 2.1amps. Accordingly, the time to charge from flat to fully charged varies from 2.5 to 8 hours depending on the method of charging, i.e. mains power USB at 2.1A (not supplied) or computer USB (at as little as 0.5A).
  • Page 15: Battery Level Indicator

    Should your battery deplete to beneath 12% capacity during your ride, 3 long beeps will sound. This indicates the camera on Fly12 CE has turned off (saving power), however the light will continue to function for a further 30 minutes (approximately). See Cycliq HomeSafe™ function on page 24. FLY12 CE122 – User Manual...
  • Page 16 Before you use a microSD card for the first time, you will need to format the card. We recommend doing this through the CycliqPlus mobile app. It can also be done on PC or Mac. To watch a video on how to format a microSD card on PC or Mac, visit cycliq.com/sdcards. Inserting and removing microSD card Your Fly12 CE is unable to record without a compatible microSD card installed.
  • Page 17 Mounting your Fly12 CE Your Fly12 CE comes with a handlebar mount that features the Cycliq Quick Release System™. The handlebar mount is a strong, secure and reliable mounting mechanism. Note: The maximum torque for the handlebar mount is 2 Nm (Newton-metres), and there should be a gap of 1-2mm between the two halves of the mount after tightening.
  • Page 18: Using Your Fly12 Ce

    Fly12 CE when not in use. Your light settings will be remembered when the device is turned OFF/ON. Consider bicycle light regulations in your area when setting your light functions. FLY12 CE122 – User Manual...
  • Page 19 MicroSD card error / No microSD card inserted 3 Rapid beeps when triggered Incident protection Alarm beep Alarm beep Short beep Recording alert interval 1 Beep every 5 seconds Port door open 1 Beep every 60 seconds Low battery mode FLY12 CE122 – User Manual...
  • Page 20: Audio Settings

    Fly12 CE; and • • turn your Fly12 CE device on and off. To download the CycliqPlus Connect app, go to apps.garmin.com or visit Connect IQ via your Garmin device. FLY12 CE122 – User Manual...
  • Page 21 Electronic Image Stabilisation can be turned off via the CycliqPlus mobile app or using your PC or Mac. High Dynamic Range (HDR) Fly12 CE has one video resolution setting with HDR, which optimises footage when travelling through areas of light and dark. FLY12 CE122 – User Manual...
  • Page 22 Note: A compatible Class 10 microSD card is required for this device (see cycliq.com/sdcard). Manual footage capture If you witness an event that you want to capture and retain when riding, simply press the Q button briefly.
  • Page 23 • Turn off, then turn your Fly12 CE back on and use normally; or • When the 3 long beeps sound (indicating your Fly12 CE is shutting down), wait for it to turn off, then turn it back on and use normally. FLY12 CE122 – User Manual...
  • Page 24 The Incident protection function can be turned off via the Incident(mode(for(15min(chunks CycliqPlus mobile app or via your PC or Mac, however this is not recommended. Unit(OFF Incident(at(6:25 of(this(chunk 30min 15min 15min 15min 6:25min Locked(file Locked(file FLY12 CE122 – User Manual...
  • Page 25 If this mode is active, the Fly12 CE turns off automatically after sensing no movement for 15 minutes. You can turn the Fly12 CE back on as you normally would when you return to using it. Idle mode can be disabled using the CycliqPlus mobile app or via your PC or Mac. FLY12 CE122 – User Manual...
  • Page 26 This system is compact, robust, and allows greater flexibility with the mounting requirements of different bike types. To find compatible Cycliq mounting systems, see cycliq.com/mounts. Nanotechnology We've utilised ground-breaking new nanotechnology on both the inside and out of your Fly12 CE. This process modifies the entire surface area of the circuitry on a molecular level, permanently leaving your device in a hydrophobic state.
  • Page 27 You will know that this is done correctly as you will feel the reset button being depressed. Master reset button Warning DO NOT complete a master reset when the unit is in the process of completing a firmware update as this may damage your Fly12 CE. FLY12 CE122 – User Manual...
  • Page 28 You can edit the footage from your Fly12 CE device using the CycliqPlus desktop video editing program. From here you can easily edit your videos, overlay Strava metrics and share highlights from your ride. Go to cycliq.com/software to download the Cycliq Plus video editing program. FLY12 CE122 – User Manual...
  • Page 29 You can then clear any locked files which you don’t need to make sure you still have memory available to capture your rides. You can toggle the audible alert to be on or off. FLY12 CE122 – User Manual...
  • Page 30: Light Mode Settings

    This function allows you to select a range of light and dimming modes, and only these settings will be available on your Fly12 CE when in use. Audio settings Sets the volume of the audible alerts on your device. There are five sound volume levels, or you can set to silent. FLY12 CE122 – User Manual...
  • Page 31 This feature can be toggled on and off by using this button. Idle mode This feature can be toggled on and off by using this button. Bike Alarm This feature can be toggled on and off by using this button. FLY12 CE122 – User Manual...
  • Page 32 We love being part of the global cycling community, and hope to improve the safety of everyone on the road. We’re active on social media and if you use Strava, we welcome you to join the Cycliq Strava club and ride with our members from around the world (you can compete in challenges and be in the running to win some awesome prizes!).
  • Page 33: Technical Data

    Rechargeable Lithium Ion Battery Battery Size 4200mAh (approx. 8 hours in camera only mode) Watt Hours 15.96wh Voltage 3.8v Ingress Protection IP67 Operating Temperature/Humidity 0-45°C (32–113°F) Storage Temperature/Humidity 0-45°C (32–113°F) Weight Approx. 195 grams (5.5 oz) FLY12 CE122 – User Manual...
  • Page 34 Increase the separation between the equipment and receiver. • • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. • FLY12 CE122 – User Manual...
  • Page 35 This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications FLY12 CE122 – User Manual...
  • Page 36 Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Limited warranty For comprehensive warranty information refer to www.cycliq.com/warranty. Cycliq customer support support.cycliq.com Please go to for further information and support.
  • Page 37 PO Box 404, Subiaco, WA, 6904, Australia E: info@cycliq.com WWW.CYCLIQ.COM FLY12 CE122 – User Manual...
