Global 261120 Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Floor Burnisher
OWNER'S MANUAL
IMPORTANT: READ OWNER'S MANUAL CAREFULLY
Please fill out and return your warranty card
MODEL 261120
031811

Advertisement

loading
Need help?

Need help?

Do you have a question about the 261120 and is the answer not in the manual?

Questions and answers

Related Manuals for Global 261120

Summary of Contents for Global 261120

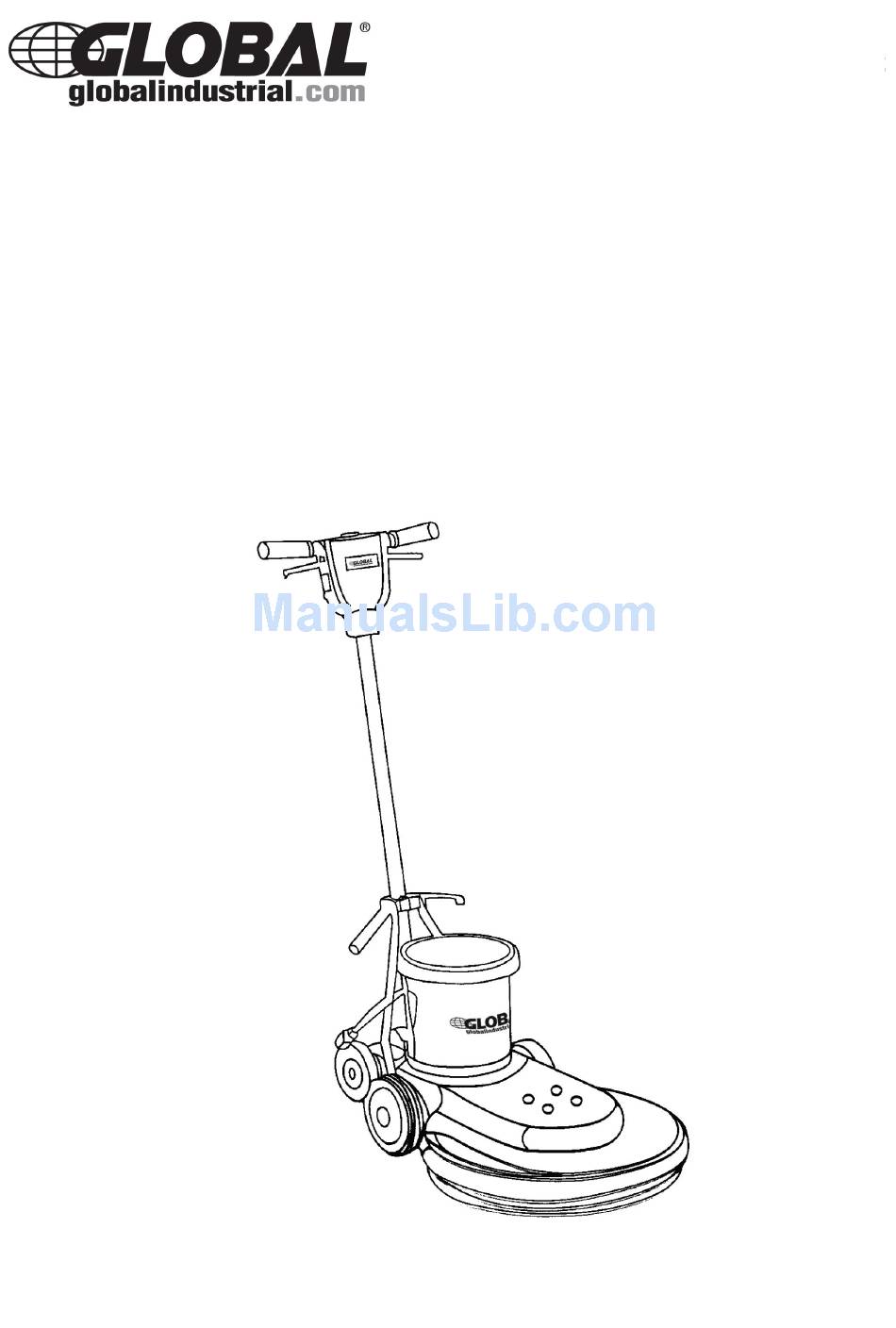

  • Page 1 Floor Burnisher OWNER’S MANUAL IMPORTANT: READ OWNER’S MANUAL CAREFULLY Please fill out and return your warranty card MODEL 261120 031811...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS CONGRATULATIONS on your purchase of a Global product. We appreciate your business and will do everything in our power to keep you happy with your purchase for many years to come. Your purchase entitles you to the best protection by one of the most comprehensive warranties in the industry.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS This machine must be grounded! Grounding provides 3) When using machine: the path of least resistance for electrical current. To • Do not run machine over cord. reduce the risk of electrical shock should the machine • Do not pull machine by cord or plug. malfunction, the machine has a special grounding •...

  • Page 4: Machine Operation

    OPERATION OF HIGH SPEED FLOOR BURNISHER READ OPERATOR’S MANUAL MAINTENANCE To keep the machine performing well for many years, THOROUGHLY PRIOR TO please follow the following maintenance procedures. OPERATING OR SERVICING WARNING THIS MACHINE Always confirm that the machine is unplugged prior to performing any maintenance or repairs.

  • Page 5: Handle Release Assembly Instructions

    HANDLE RELEASE ASSEMBLY STEP 1 STEP 2 1- Remove nut and spacer from handle 1- Remove handle clamp bracket assembly. blocks with 5mm hex head. 2- Push the two handle brackets forward 2- Place handle assembly so they lean against the motor. into handle clamp blocks.

  • Page 6: Parts Lists

    MODEL 261120 - HANDLE GRIP ASSEMBLY PARTS LIST...
  • Page 7 MODEL 261120 - HANDLE GRIP ASSEMBLY DIA No. Part Number Description NO Req'd VF53109 TUBE HANDLE VF13493 SCREW, M6 x 10, HEX SOCKET VF30013 HOOK, CABLE VF14114 SCREW, M8 x 55, HEX VF13517 WASHER, PLAIN, 10x20x2.5 VF13504 NUT, M10, NYLON INSERT...
  • Page 8 MODEL 261120 - BASE GROUP ASSEMBLY PARTS LIST...
  • Page 9 MODEL 261120 - BASE GROUP PARTS LIST DIA No. Part Number Description NO Req'd ZD41000C MOTOR, 120V VF53112 BRACKET, LEFT VF53104 AXLE, TRANSPORT VF53106 SPACER, WHEEL, TRANSPORT VF13520 RETAINING RING, EXTERNAL, 12 VF50119 WAVING WASHER, 12 VF48202 WHEEL, 5" VF13666...
  • Page 10 MODEL 261120 - BASE GROUP ASSEMBLY DIA No. Part Number Description NO Req'd VF52006 SPACER, BEARING VF14003 RETAINING RING, INTERNAL, 42 VF52001 KEY, DRIVEN SHAFT VF52005 DRIVEN SHAFT VF14007 SCREW, M10x32, HEX VF52007 MOUNTING PLATE, DRIVEN SHAFT AS321203 BUMPER, FRAME...

  • Page 11: Wiring Diagram

    MODEL 261120 - WIRING DIAGRAM...
