Global 261123 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNER'S MANUAL
IMPORTANT: READ OWNER'S MANUAL CAREFULLY
Please fill out and return your warranty card
MODEL 261123 & 261124
032911

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 261123 and is the answer not in the manual?

Questions and answers

Related Manuals for Global 261123

Summary of Contents for Global 261123

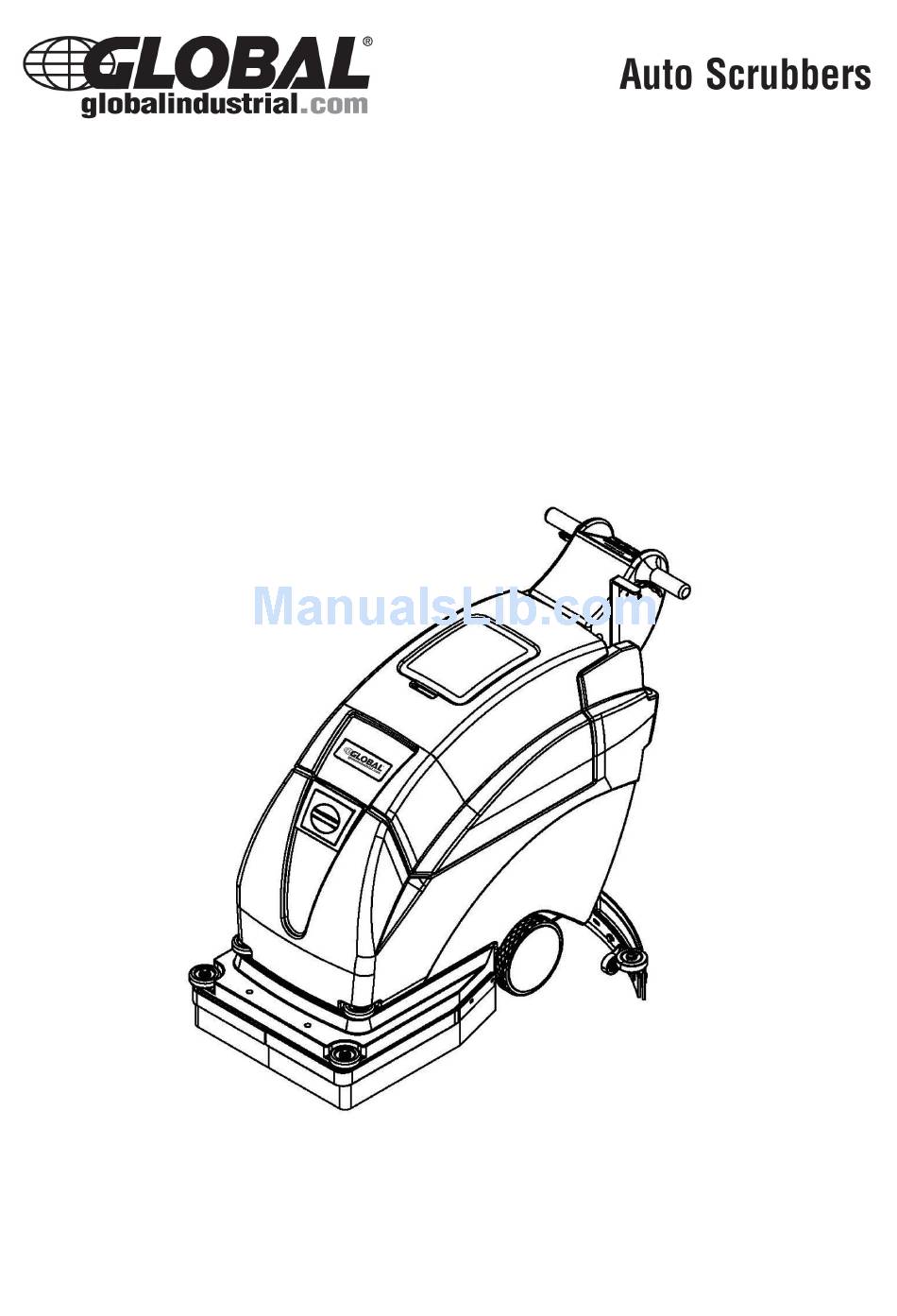

  • Page 1 OWNER’S MANUAL IMPORTANT: READ OWNER’S MANUAL CAREFULLY Please fill out and return your warranty card MODEL 261123 & 261124 032911...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS CONGRATULATIONS on your purchase of a Global product. We appreciate your business and will do everything in our power to keep you happy with your purchase for many years to come. Your purchase entitles you to the best protection by one of the most comprehensive warranties in the industry.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS This machine is intended for commercial use. It is WARNING constructed for use in an indoor environment and is not intended for any other use. Batteries emit hydrogen gas. Explosion or fire can result from hydrogen gas. Keep •...

  • Page 4: Machine Components

    MACHINE COMPONENTS 7. Squeegee assembly 8. Brush lift foot pedal 9. Solution tank level sight tube 10. Console adjustment levers 11. Rear solution fill 12. Circuit breakers 13. Squeegee lift lever 14. Control housing 15. Solution tank 16. Transport wheels 17.
  • Page 5 MACHINE SET UP & INSTALLATION CONTENTS WARNING • Machine • 2 Batteries Do not keep the machine tilted back for • Squeegee Assembly a long time. This could cause battery acid to • Battery Charger leak from the batteries. • Pad Driver 4.

  • Page 6: Machine Operation

    Foam must not enter the float shut-off screen, or or a fire. Only use approved cleaning damage can occur to the vacuum motor. Foam chemicals. Contact Global Equipment will not activate the machines float shut-off device. (1-800-645-1232) for recommendations on proper chemicals.
  • Page 7 MACHINE OPERATION CONTINUED DRAINING THE SOLUTION (CLEAN) TANK CAUTION CAUTION The brush motors are circuit breaker Any time scrubbing operation is completed, protected to protect them from damage. If a the solution tank should be drained and cleaned. breaker trips, it can't be reset immediately. You must first determine what caused the breaker to 1.

  • Page 8: Battery Charging

    MACHINE OPERATION CONTINUED BATTERY CHARGING (cont.) DAILY MAINTENANCE 1. Place charger and machine in a well ventilated area. 1. Remove pad driver / brush and clean with approved 2. Turn machine off. cleaner. 3. Open recovery tank up, exposing battery compartment 2.

  • Page 9: Machine Storage

    MACHINE OPERATION CONTINUED VACUUM MOTOR MAINTENANCE 1. Contact Customer Service (1-800-645-2986) for any motor maintenance. 2. Vacuum motor brushes should be checked every 250 hours. Brushes should be replaced when they are worn to a length of 10mm or less. BATTERY MAINTENANCE CAUTION For the best machine performance, keep...

  • Page 10: Basic Troubleshooting

    BASIC TROUBLESHOOTING PROBLEM CAUSE SOLUTION No power Bad batteries Replace batteries Batteries need to be charged Charge batteries (see Battery Charging) Loose battery cable Tighten loose cable(s) Batteries not connected properly Follow battery installation instructions Brush motor does Bad brush switch Call Customer Service 1-800-645-2986 not run Brush circuit breaker has tripped...
  • Page 11 MODEL 261123 & 261124 - CONTROL HOUSING PARTS LIST...
  • Page 12 MODEL 261123 & 261124 - CONTROL HOUSING DIA No. Part Number Description NO Req'd VF81713 BUSHING VF14122 WASHER, PLAIN, M10XM20X2 VF14121 SCREW, M10X65 VF13502 NUT, LOCK, M6 GT13032 WASHER, PLAIN, M6 VF81781 DIODE 400V VF81726A SOLENOID, 24V VF81734 BREAKER, CIRCUIT, 35 AMP...
  • Page 13 MODEL 261123 & 261124 - RECOVERY TANK ASSEMBLY PARTS LIST...
  • Page 14 MODEL 261123 & 261124 - RECOVERY TANK ASSEMBLY DIA No. Part Number Description NO Req'd VF82010 CLEAR COVER, RECOVERY TANK VF82930 DECAL, BATTERY WARNING VF82009 ELBOW ADAPTER, FLOAT VV13607 WASHER, LOCK, M6 VF13533 WASHER, PLAIN, M6 X M16 X 2...
  • Page 15 MODEL 261123 & 261124 - SOLUTION TANK ASSEMBLY PARTS LIST...
  • Page 16 MODEL 261123 & 261124 - SOLUTION TANK ASSEMBLY DIA No. Part Number Description NO Req'd VF81405BD GRIP, HANDLE VA13477 SCREW, SELF-TAPPING, ST, M4 X 16 VV13664 WASHER, PLAIN, M4 X M12 X 1 VF81507 STRAP, PLUG, REAR FILL VV13604 SCREW, M8 X 20...
  • Page 17 MODEL 261123 & 261124 - SOLUTION TANK ASSEMBLY DIA No. Part Number Description NO Req'd VF81416 HOSE BARB VF82161 CLAMP (16-25) VF82061 TUBING VF82306A KIT, LABEL, MARKERS VF14230 SCREW, M5 X 15 VV13601 WASHER, LOCK, M5 VF13532 WASHER, PLAIN, M5 X M11 X 2...
  • Page 18 MODEL 261123 & 261124 - SQUEEGEE ASSEMBLY PARTS LIST...
  • Page 19 MODEL 261123 & 261124 - SQUEEGEE ASSEMBLY DIA No. Part Number Description NO Req'd VF14247 SCREW, M12 X 25 VF13538 WASHER, PLAIN, M12 X M26 X 2 VF82016A BUSHING VF82130 MOUNT, PIVOT VF13541 WASHER, LOCK, M12 VF82049 CABLE, SQUEEGEE LIFT...
  • Page 20 MODEL 261123 & 261124 - BRUSH LIFT / AXLE ASSEMBLY PARTS LIST...
  • Page 21 MODEL 261123 & 261124 - BRUSH LIFT / AXLE ASSEMBLY DIA No. Part Number Description NO Req'd VF14075 BEARING, #6004 VF82005 WHEEL, 8" VF82101 BUSHING VF82210 SHAFT VF13535 WASHER, PLAIN, M8 X M20 X 2 VF13519 WASHER, LOCK, M8 VA13491...
  • Page 22 MODEL 261123 & 261124 - SOLUTION CONTROL ASSEMBLY PARTS LIST...
  • Page 23 MODEL 261123 & 261124 - SOLUTION CONTROL ASSEMBLY DIA No. Part Number Description NO Req'd VF14245 SCREW, M5 X 6 VF82036 SHAFT VV13650 SCREW, M4 X 10 VF13532 WASHER, PLAIN, M5 VV13601 WASHER, LOCK, M5 VF14230 SCREW, M5 X 15 VF13536 WASHER, PLAIN, M9.8 X M16 X 1...
  • Page 24 MODEL 261123 & 261124 - BRUSH SKIRT ASSEMBLY PARTS LIST...
  • Page 25 MODEL 261123 & 261124 - BRUSH SKIRT ASSEMBLY DIA No. Part Number Description NO Req'd VF82014 BUMPER VA13491 SCREW, M8 X 25 VF13519 WASHER, LOCK, M8 VF13535 WASHER, PLAIN, M8 X M20 X 2 VF13514A WASHER, PLAIN,M8 X M16.5 X 1 VF82013 WHEEL, 3"...
  • Page 26 MODEL 261123 & 261124 - BRUSH PAD ASSEMBLY PARTS LIST...
  • Page 27 MODEL 261123 & 261124 - BRUSH PAD ASSEMBLY DIA No. Part Number Description NO Req'd ZD45000 BRUSH MOTOR, 24VDC, .75HP ZD45407 KEY, 6.35 X 25 VF13545 SCREW, SELF-TAPPING,ST, M5 X 10 VV13601 WASHER, LOCK, M5 VF83131 CLAMP, BRUSH PLATE VF83132...
  • Page 28 MODEL 261123 & 261124 - WIRING DIAGRAM...
