RJE International, Inc.
YOUR SOURCE FOR DIVER NAVIGATION AND UNDERWATER RELOCATION EQUIPMENT
DG100
DIGITAL DEPTH GAUGE AND TIMER
OPERATIONS MANUAL
July 12, 2017
P/N: 102-17000
REV. B
15375 Barranca Parkway Suite I-112, Irvine, CA, 92618 U.S.A.
www.rjeint.com
| Phone: 949-727-9399 | Fax: 949-727-0070 | E-mail: sales@rjeint.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RJE DG100
Summary of Contents for RJE DG100

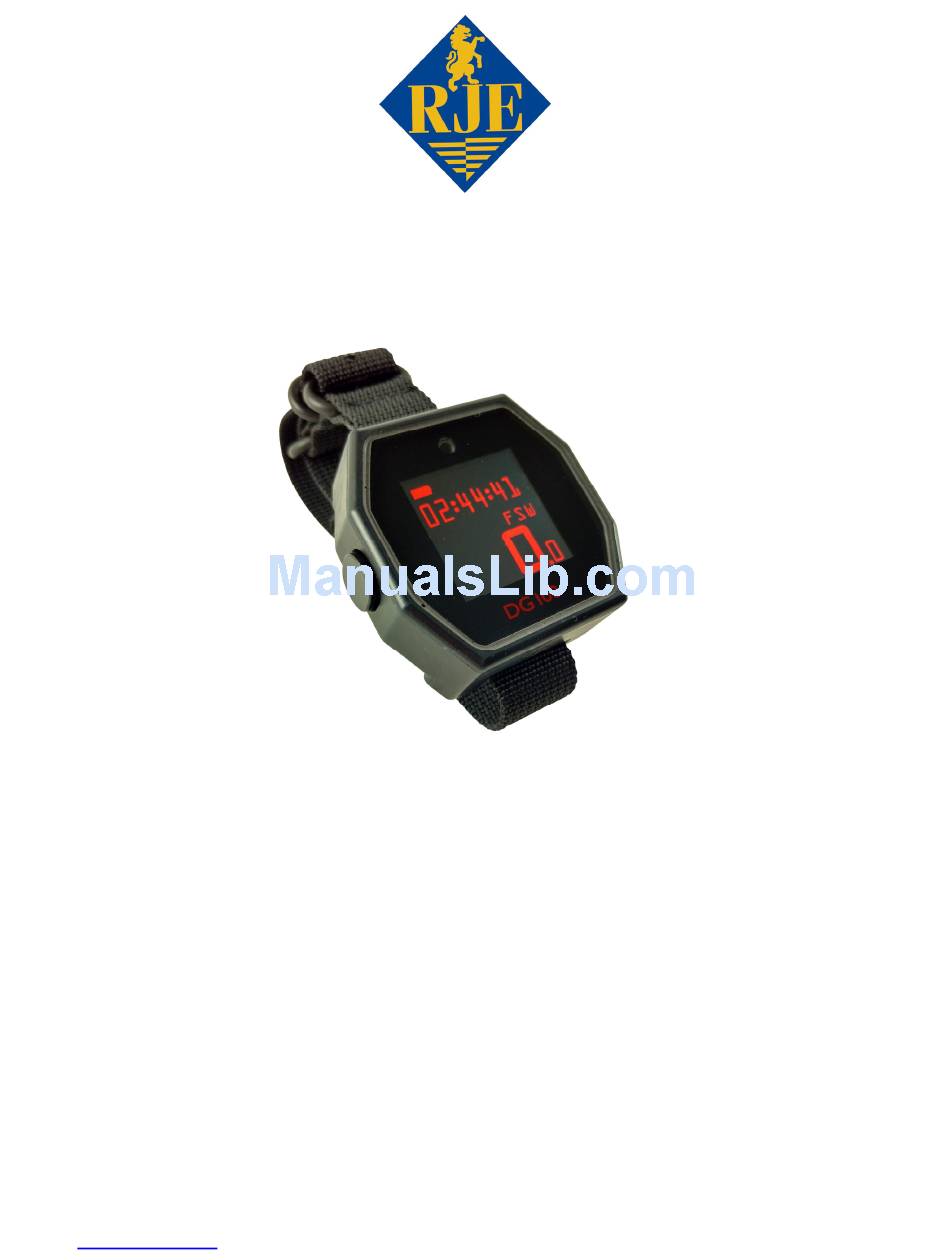

- Page 1 RJE International, Inc. YOUR SOURCE FOR DIVER NAVIGATION AND UNDERWATER RELOCATION EQUIPMENT DG100 DIGITAL DEPTH GAUGE AND TIMER OPERATIONS MANUAL July 12, 2017 P/N: 102-17000 REV. B 15375 Barranca Parkway Suite I-112, Irvine, CA, 92618 U.S.A. www.rjeint.com | Phone: 949-727-9399 | Fax: 949-727-0070 | E-mail: sales@rjeint.com...
- Page 2 DG100 Digital Depth Gauge and Timer Preface This manual describes the installation and operation of the DG100. This manual is divided into the following six sections: Description Theory of Operation Specifications Maintenance Return Procedures Warranty Proprietary Information The information, description and illustrations in this manual are the property of RJE International, Inc.
-
Page 3: Table Of Contents
DG100 Digital Depth Gauge and Timer Table of Contents Description ........................4 Theory of Operation ....................6 Specifications ......................8 General Specifications ..................8 Maintenance .........................9 Battery Maintenance ....................9 Battery Charging ....................9 Maintenance Precautions ..................9 Cleaning........................9 Storage ........................9 Return Procedures ....................10 Warranty ........................11... - Page 4 (PADI, NAUI, SSI, NASDS, YMCA, etc.). Improper use or misuse of the DG100 could result in serious injury or death. Do not use the DG100 until you have read and fully understand instructions and safety precautions in this manual.
-
Page 5: Description
DG100 Digital Depth Gauge and Timer Description The DG100 is a digital depth gauge that measures and displays depth accurately from 0 to 330ft (0-100m). Using a state-of-the-art pressure transducer, the DG100 depth resolution is 0.1ft when set for feet of sea water or 0.1m when set for meters of sea water. -
Page 6: Button Matrix
DG100 Digital Depth Gauge and Timer BUTTON MATRIX Dive Mode Surface Mode Stop Watch Hibernation Operations Mode Menu Unit Underwater Unit returning Surface or to surface Dive mode Short Press A Toggles Reset to Zero Surface Mode Toggle cursor Brightness Low... -
Page 7: Theory Of Operation
A-Button or B-Button before diving. Hibernation Mode Once the DG100 is on the surface for 1 minute, the unit enters “Hibernation Mode” and shuts down. Please note the unit is not powered off but hibernating. To activate unit and enter “Surface Mode”, short press either the A or B Button. -
Page 8: Stopwatch Mode
During the dive, the user can adjust the brightness, low-medium-high, by short pressing A-Button. The DG100 will stop monitoring the length of the dive once the unit is less than 3ft (1m) from the surface for more than 1 minute and enter “Surface Mode”, where the DG100 starts a timer that... -
Page 9: Specifications
DG100 Digital Depth Gauge and Timer Specifications General Specifications Depth Range 0-330ft (0-100m) Depth Tolerance ± 1% of Full Scale Depth Resolution 0.1ft FSW 0.1m MSW Display Red OLED Timer Tolerance ± 1% Leg Timer Functions Start / Pause / Reset... -
Page 10: Maintenance
DG100, aligning the cable contacts with the contacts on the back of the DG100. Plug the USB end of the charging cable into the connector on the supplied power adapter, and plug the power adapter into an AC outlet. -
Page 11: Return Procedures
Title shall pass to buyer on delivery to carrier at Irvine, CA. Risk of damage or loss following such delivery shall be to the buyer and RJE International shall in no way be responsible for safe arrival of the shipment. Title shall so pass to buyer regardless of any provision for payment of freight or insurance by RJE International or of the form of shipping documents. -
Page 12: Warranty
Repairs or replacements, parts, labor, and return shipment under this warranty will be at no cost to the customer. This warranty is void if, in RJE’s opinion, the product has been damaged by accident or mishandled, altered, or repaired by the customer, where such treatment has affected its performance or reliability.
