Phidgets 1102 User Manual

Ir reflective sensor 5mm
Hide thumbs
1
2
3
4
5
Table of Contents

Advertisement

Quick Links

Download this manual

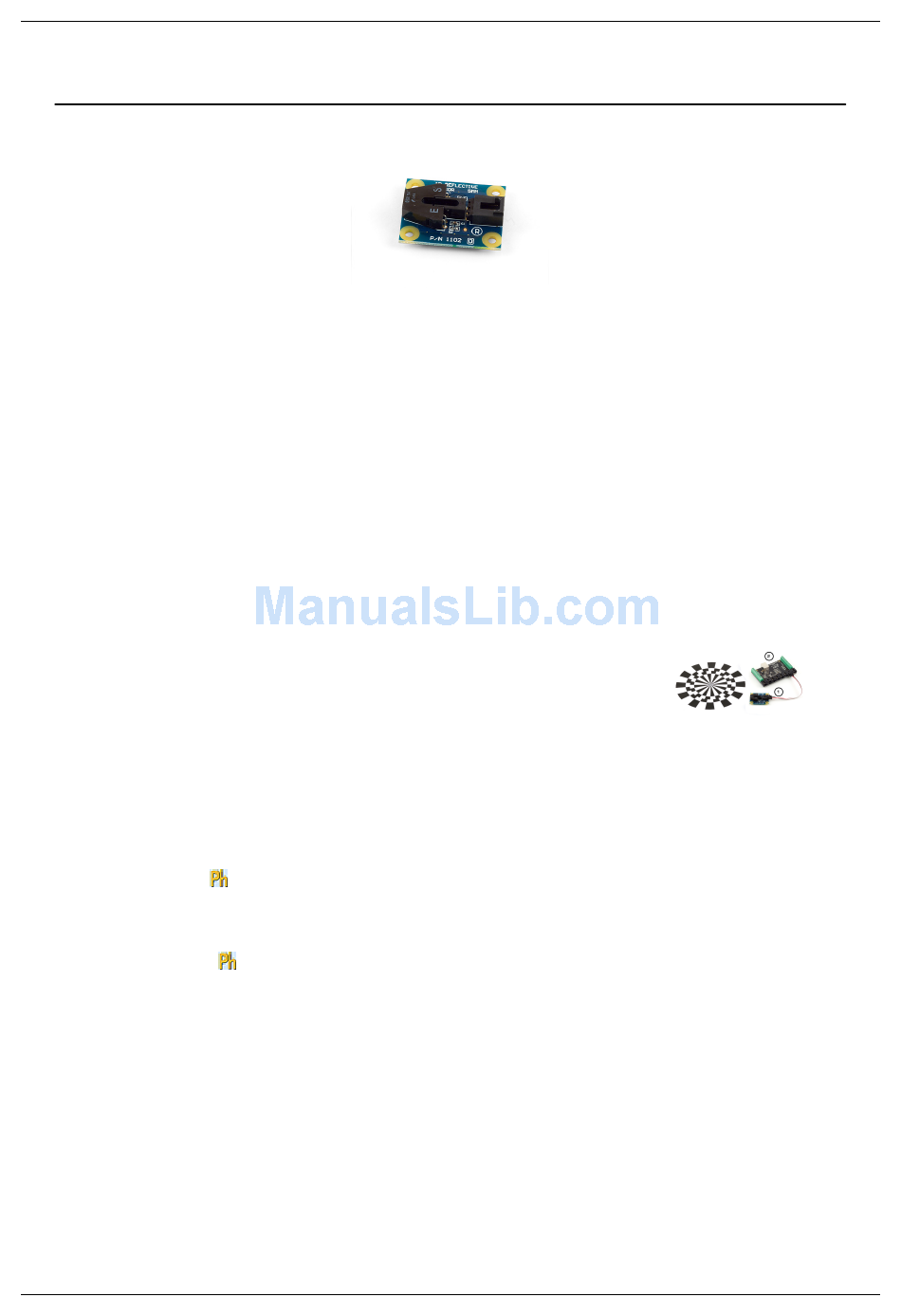

1102 User Guide
1102 User Guide

Getting Started

Checking the Contents

You should have received:
•
•

Connecting the Pieces

1. Connect the IR Reflective Sensor 5mm to theAnalog Input 6 on the PhidgetInterfaceKit 8/8/8 board using the
sensor cable.
2. Connect the PhidgetInterfaceKit to your PC using the USB cable.

Testing Using Windows 2000 / XP / Vista / 7

Make sure you have the current version of the Phidget library installed on your PC. If you don't, follow these steps:
1. Go to the Quick Downloads section on the Windows page
2. Download and run the Phidget21 Installer (32-bit, or 64-bit, depending on your system)
3. You should see the

Running Phidgets Sample Program

Double clicking on the
Phidget works properly.
The source code for the InterfaceKit-full sample program can be found in the quick downloads section on the C#
Language Page. If you'd like to see examples in other languages, you can visit our Languages page.
Go to this device's product page
An IR Reflective Sensor 5mm
A Sensor Cable
icon on the right hand corner of the Task Bar.
icon loads the Phidget Control Panel; we will use this program to ensure that your new
[1]
In order to test your new Phidget you will also need:
•
A PhidgetInterfaceKit 8/8/8
•
A USB Cable
•
A reflective surface of some kind (just about anything will do).
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1102 and is the answer not in the manual?

Questions and answers

Related Manuals for Phidgets 1102

Summary of Contents for Phidgets 1102

  • Page 1: Getting Started

    1102 User Guide 1102 User Guide Go to this device's product page Getting Started Checking the Contents You should have received: In order to test your new Phidget you will also need: • An IR Reflective Sensor 5mm • A PhidgetInterfaceKit 8/8/8 •...

  • Page 2: Technical Details

    400 indicate that there is no reflective object within range, or that an object is too close. The 1102 sensor consists of an infrared emitting diode and an NPN silicon phototransistor mounted side by side on a converging optical axis in a black plastic housing. The phototransistor responds to radiation from the emitting diode only when a reflective object passes within its field of view.
  • Page 3 (0 being more reflective, and 400 being less reflective), but in practice the variation between sensors is broad enough that the 1102 should not be used to measure the reflectivity of an object - only to detect if the object exists.
  • Page 4 1102 User Guide For more code samples, find your preferred language on the Languages page. Product History Date Board Revision Device Version Comment October 2005 Product Release References [1] http:/ / www. phidgets. com/ products. php?product_id=1102...
  • Page 5 Article Sources and Contributors Article Sources and Contributors 1102 User Guide  Source: http://www.phidgets.com/wiki/index.php?title=1102_User_Guide  Contributors: Burley, Mparadis Image Sources, Licenses and Contributors Image:1102.jpg  Source: http://www.phidgets.com/wiki/index.php?title=File:1102.jpg  License: unknown  Contributors: Mparadis File:1102_0_Connecting_The_Hardware.jpg  Source: http://www.phidgets.com/wiki/index.php?title=File:1102_0_Connecting_The_Hardware.jpg  License: unknown  Contributors: Mparadis File:Ph.jpg  Source: http://www.phidgets.com/wiki/index.php?title=File:Ph.jpg  License: unknown  Contributors: Mparadis File:1018_2_Control_Panel_Screen.jpg  Source: http://www.phidgets.com/wiki/index.php?title=File:1018_2_Control_Panel_Screen.jpg  License: unknown  Contributors: Mparadis...
