OMC-140 Multifunctional NMEA display
Supplement SD logging and load / Discharge
Manual
Version 1.10s 2017
Author: Observator Instruments

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OMC-140 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Observator Instruments OMC-140

Summary of Contents for Observator Instruments OMC-140

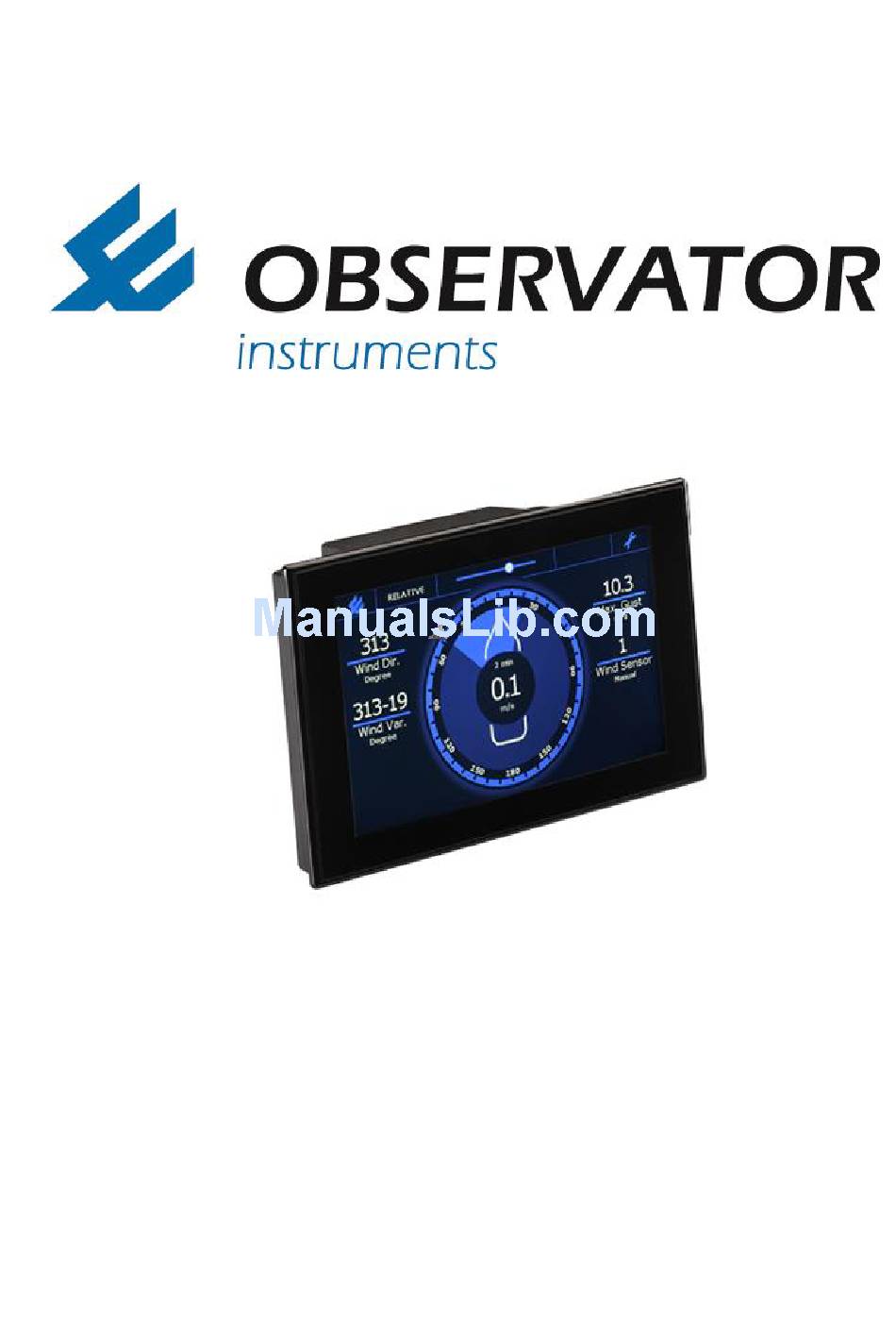

  • Page 1 OMC-140 Multifunctional NMEA display Supplement SD logging and load / Discharge Manual Version 1.10s 2017 Author: Observator Instruments...
  • Page 2 Revisions: 1.10s (March 2017) First issue Supplement OMC-140 Manual supplement SD-logging – Wind Alarm functionality Page 2...

  • Page 3: Table Of Contents

    Data log function settings ......................8 Storage ............................9 Functional information ........................ 9 SD card ........................... 10 Parameters ..........................10 Data Format ..........................11 Menu structure Touch screen......................12 Menu Structure Terminal Mode ......................14 OMC-140 Manual supplement SD-logging – Wind Alarm functionality Page 3...
  • Page 4 Page intentionally left blank OMC-140 Manual supplement SD-logging – Wind Alarm functionality Page 4...

  • Page 5: Introduction

    This supplement contains information concerning the latest additions (firmware 001.000B023) specific for the OMC-140 replacement of the OMC-146 load / discharge wind display. These changes will be included in the next edition of the standard OMC-140 manuals. Use this as supplement in addition to the standard manual.

  • Page 6: Wind Speed Alarm Function

    Settings of the Alarm levels is still done in the Advanced tab: The Wind Speed Alarm button can be ‘locked ‘. When locked, the operator won’t be able to change the status in the General tab. OMC-140 Manual supplement SD-logging – Wind Alarm functionality Page 6...
  • Page 7 In the Front tab a ‘Wind Speed Alarm function’ can be selected to indicate on the main screen the status of the Wind Alarm Speed function. OMC-140 Manual supplement SD-logging – Wind Alarm functionality Page 7...

  • Page 8: Data Log Function

    * Once SD logging is selected On GGA message is available; time will be daily synchronized with the UTC time. Since date is not in the GGA message this will not be synchronized like the time! OMC-140 Manual supplement SD-logging – Wind Alarm functionality Page 8...

  • Page 9: Storage

    Available space in percentage It will take one Storage interval before the correct value is displayed (after card-insertion or power cycle). Storage Interval 5 seconds, 2 minutes or 10 minutes. OMC-140 Manual supplement SD-logging – Wind Alarm functionality Page 9...

  • Page 10: Sd Card

    Only use the supplied SanDisk Ultra micro SD card. If you do need to replace the card, use a simular SanDisk Ultra card Not all SD cards are suitable fort he OMC-140 display! Contact Observator if in doubt. If you do need to format a SD card: use SD-formatter from the SD Association (www.SDcard.org) instead of the standard Windows format...

  • Page 11: Data Format

    Data is stored per data line format: D; dd/mm/yy hh:mm:ss;parameter-number;data;status……parameter-number; data;status [CR] [LF] Example: T;0;1;2;3;4;5;6;7;8;9;10;11;12;13;14;15;16;17;18;19;20;21;22;23;24;25;26;27;28;29;30;31; Timestamp;AvgInterval;AvgWndspdR;AvgWnddirR;GustmaxR;GustminR;WindvarR;AvgWndspdT;AvgWi nddirTR;GustmaxT;GustminT;WindvarT;AvgWndspdTrue;AvgWnddirTrue;GustmaxTrue;GustminTrue;Wi ndvarTrue;UTC;GE_LATITUDE;GE_LONGITUDE;SAT_Count;Cog;Sog;Heading;Shpspeed;Temp;Dewp nt;Hum;QFE;QNH;Wtrtemp;Baro;Status; yy/mm/dd hh:mm:ss;s;m/s;deg;m/s;m/s;deg;m/s;deg;m/s;m/s;deg;m/s;deg;m/s;m/s;deg;hhmmss;deg; deg;;deg;kn;deg;kn;C;C;%;Bar;Bar;C;Bar;; Time;AVGi;AWvR;AWdR;MxGR;MmGR;VWdR;Awvt;Awdt;MxGt;MmGt;VWdT;AWvT;AWdT;MxGT;MmG T;VWdT;UTC;LAT;LON;SCNT;COG;SOG;HDT;Vshp;TMPa;TMPd;HUM;QFE;QNH;TMPw;BPrs;S140; S;Device serial number:OMC-14000000203; D;17/02/16 15:54:02;0;600;0;1;8.5;0;2;49.9;0;3;9.7;0;3;7.2;0;5;10;0;16;155401;0;17;- 240.717;0;18;01627.293;0;19;12;0;20;1.0;0;21;100.0;0;31;0;0; D;17/02/16 15:56:02;0;600;0;1;8.5;0;2;49.9;0;3;9.7;0;3;7.2;0;5;10;0;16;155401;0;17;- 240.717;0;18;01627.293;0;19;12;0;20;1.0;0;21;100.0;0;31;0;0; OMC-140 Manual supplement SD-logging – Wind Alarm functionality Page 11...

  • Page 12: Menu Structure Touch Screen

    Wind Speed (Wind only) km/h Wind Reference (Wind only) Relative Theoretical True User Average Interval (Wind only) Wind Speed Wind Direction Gust Wind Variation Wind Alarm (On / Off) (Wind only) OMC-140 Manual supplement SD-logging – Wind Alarm functionality Page 12...
  • Page 13 19200 38400 Secure User Items Average (un)lock (Wind only) Wind Speed (un)lock (Wind only) Dimming Control (un)lock Sensor Selection (un)lock Wind Reference (un)lock (Wind only) Wind Alarm (un)lock (Wind only) OMC-140 Manual supplement SD-logging – Wind Alarm functionality Page 13...

  • Page 14: Menu Structure Terminal Mode

    5 Menu Structure Terminal Mode SD Log settings Menu SD Log: SD Logging (On) Storage Interval (5-sec) Set Date (yy-mm-dd) (17/02/16) Set Time (hh:mm:ss) GMT(+00:00) (11:28) Previous Menu OMC-140 Manual supplement SD-logging – Wind Alarm functionality Page 14...
