Page 1: User Manual

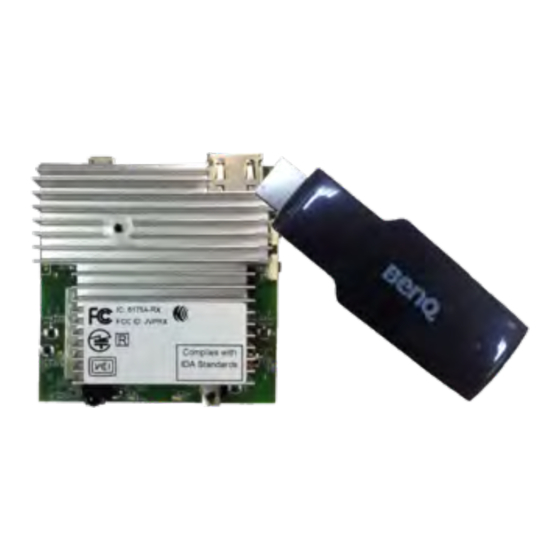

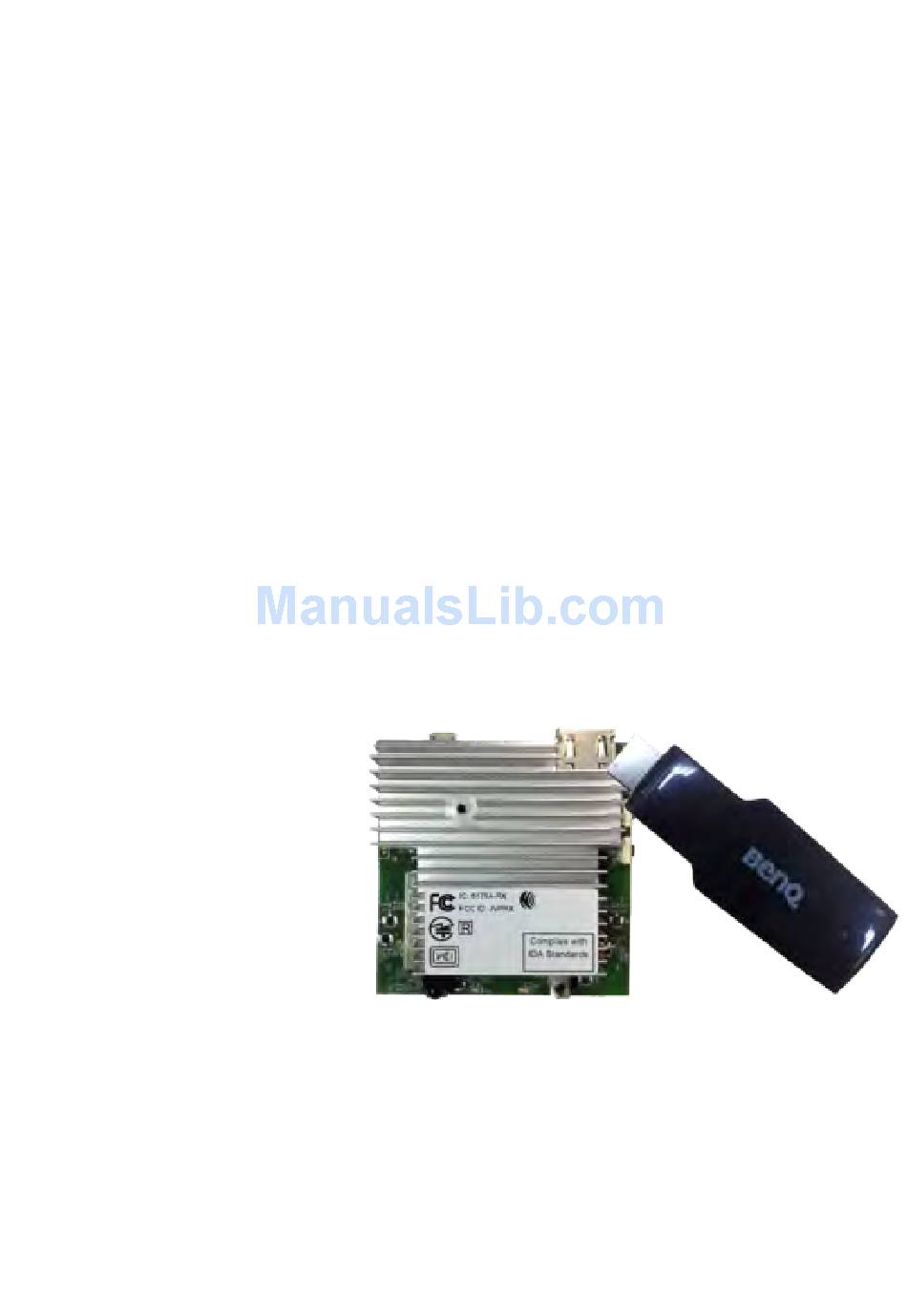

User Manual Wireless HDMI Solution WDAM2120 / WDAM2120-RX... -
Page 2: Increase The Separation Between The Equipment And Receiver
公司 FCC S tatement This t ransmi+er m ust n ot b e c o-‐located o r o pera5ng i n c onjunc5on w ith a ny o ther a ntenna o r Federal Communication Commission Interference Statement transmi+er. -
Page 3: Important Note
公司 IC S tatement Radia5on E xposure S tatement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two This e quipment c omplies w ith I C r adia5on e xposure l imits s et f orth f or a n u ncontrolled e nviron-‐ conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference ment. ... - Page 4 公司 such t hat 2 0 c m m ay b e m aintained b etween t he a ntenna a nd u sers. T he fi nal e nd p roduct m ust End Product Labeling be ...
-
Page 5: Table Of Contents
公司 Index Safety and Caution LED Instruction TX LED RX LED OSD Instruction On Screen Display (OSD) Instruction To add another TX or remove existing TX Disconnect TX Remove TX Installation TX Setup RX Setup Resolution Support Specification Trouble Shooting... -
Page 6: Safety And Caution
Safety and Caution *Please read this user manual carefully before your installation. • Do not open the cover, it may cause some damages. • Please keep the WHDI Devices at a ventilated place and avoid sun exposure. • Do not put any heavy objects on the WHDI Devices. •... -
Page 7: Led Instruction
LED Instruction TX LED Mode Status Standby Waiting for RX Linking Mode Linking Blinking Blue Linked Linked with RX Blue RX LED Mode Status Power LED Linking LED Initial (Power on) Boot up White Blinking Blue Searching Searching for TX White Blinking Blue No Input for TX... -
Page 8: Osd Instruction
OSD Instruction On Screen Display (OSD) Instruction The Menu Button on RX allows you to add, remove, or rename TX. You can also disconnect TX here. To add another TX or remove existing TX 1. Press Menu Button. 2. Press Up or Down Button to select “Settings”. 3. -
Page 9: Installation
Installation TX Setup 1. Connect the USB cable to TX. 2. Connect the USB cable to computer USB port or other USB power supply. 3. Connect the TX source HDMI port. RX Setup 1. Connect the power adaptor to PX. 2. -
Page 10: Resolution Support
Resolution Support Video Format Timing 640 x 480P @ 59.94/60 Hz 480P 480P 480P 720 x 480P @ 59.94 Hz 720 x 480P @ 60 Hz 720 x 576P @ 50 Hz 576P 1280 x 720 @ 50 Hz 720P 720P 1280 x 720 @ 59.94/60 Hz 1920 x 1080i @ 50 Hz... - Page 11 Specification Host Interface HDMI (Type A) HDMI (Type A) HDMI (Type A) Video Video Video HD/Full HD 480P, 576P, 720P, 1080i, 1080P 480P, 576P, 720P, 1080i, 1080P PC mode VGA (640 x 480), SVGA (800 x 600), XGA (1024 x 768) VGA (640 x 480), SVGA (800 x 600), XGA (1024 x 768) LCD Panel 1280 x 768, 1366 x 768, 1920 x 1080...
-
Page 12: Trouble Shooting
Trouble Shooting Issue Solution No display output on the external display • Please make sure all cables are connected properly. • Please check your TV / display screen is in HDMI input mode. • Please check the distance between TX and RX. Maximun transmit distance is 8 meters and may vart from the environment.
