Summary of Contents for Bivocom TR341-G

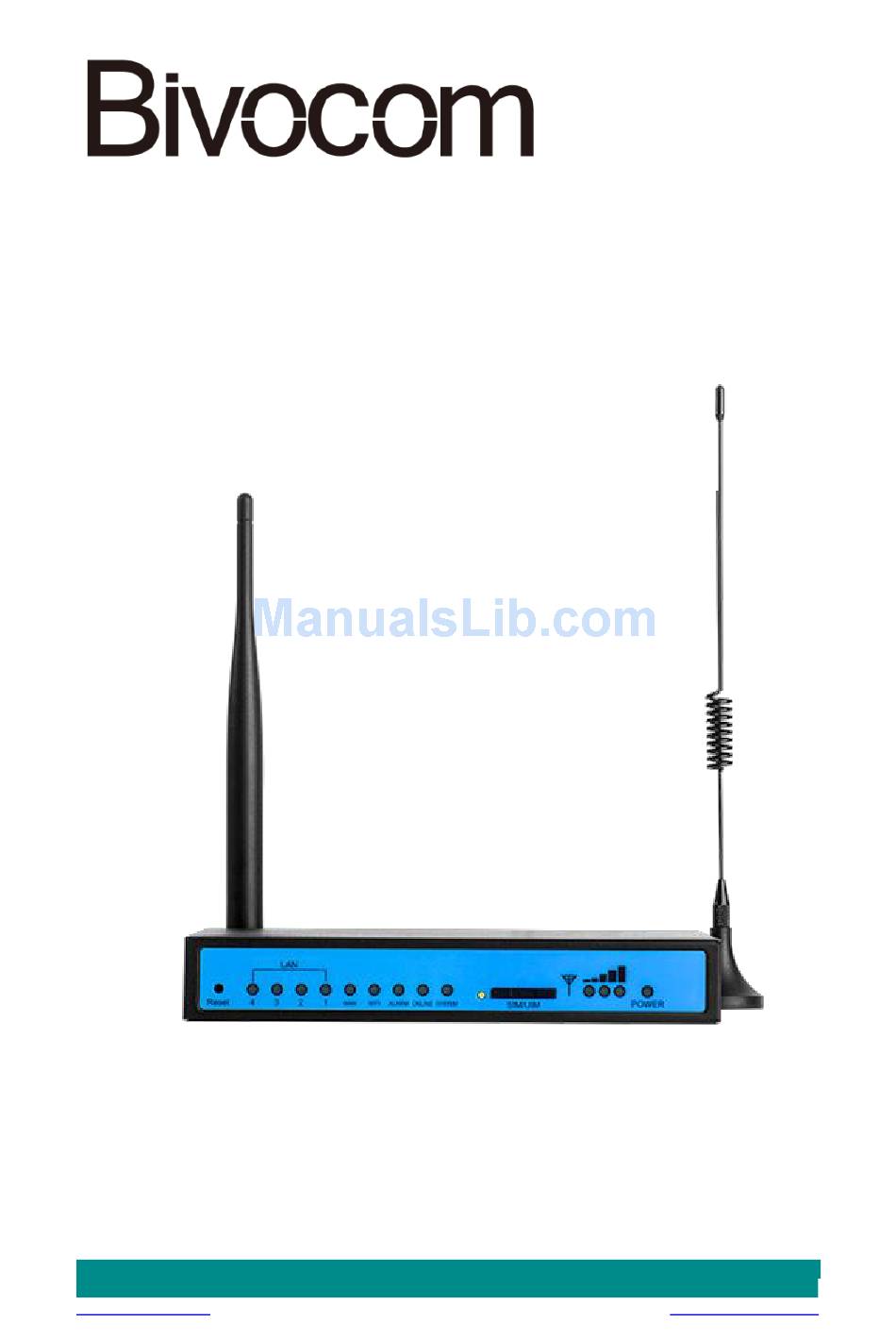

- Page 1 Industrial Cellular WIFI Router TR341 Series User Guide Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com...
-
Page 2: Copyright
Product specifications and information in this document are subject to change without any notice, and BIVOCOM reserves the right to improve and change this user guide at any time. Users should take full responsibility for their application of products, and Xiamen Bivocom Technologies Co., Ltd. -
Page 3: About This Guide
About This Guide Thank you for choosing Bivocom Industrial Cellular WIFI Router TR341 Series. Please thoroughly read this user guide before you configure and install the device. This manual is compatible with below models Model Description TR341-G Industrial GPRS WIFI ROUTER... -
Page 4: Table Of Contents
3.3.1 System ......................... 24 3.3.2 Password ......................25 3.3.3 Time Setting ......................26 3.3.4 Log Settings ......................27 3.3.5 Backup and Reset ....................28 Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... - Page 5 3.6.1 System ......................... 45 3.6.2 Network ........................ 46 3.6.3 Routing Tables ....................47 3.6.4 System Log ......................48 3.6.5 VPN Status ......................48 Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com...
-
Page 6: Introduction
TR341 Series Router utilizes cellular network to connect your network devices and serial port devices to your center for remote monitoring and control. Typical application as below. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 7: Dimensions
790g(1.74lbs) 2. Getting Started 2.1 Package Checklist The following components are included in your TR341 package. Check the list before installation. If you find anything missing, Please feel free to contact Bivocom. TR341 Router Host Power Adapter(DC 12V/1.5A) ... -
Page 8: Installation
2.2 Installation Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 9: Sim/Uim Card
2.2.2 5-Pin Terminal Block and Console Cable TR341 supports RS232 and RS485 serial port, which can be used for firmware upgrade, system log checking, or acts as serial port of a DTU(Please refer to Bivocom TD210 Series DTU). TR341 designed with industrial terminal block interface, and the cable in this package with... -
Page 10: Power Supply
5(B) 2.2.3 Power Supply We suggest you use Bivocom standard power adapter (1.5A/12VDC). If you have to use your own power supply, make sure the power range is 5-35VDC and it is stable enough(Ripple shall be less than 300mV, and Instantaneous voltage shall not larger than 35V), meanwhile, power shall over 4W. -
Page 11: Reset
Use a needle object(such as pen) to insert into hole of ‘Reset’, hold until all the LED Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 12: Configuration And Management
1) Server Type Type of network, the default value is AUTO, you can keep it or choose your own Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... - Page 13 8) WAN Used As LAN When you use 4G/3G/2G cellular network to access internet, you can change the WAN to act as a LAN port. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com...
-
Page 14: Lan
To configure IP address of LAN port. 2) IPv4 Netmask The netmask of LAN port IP address. 3) IPv4 Gateway Specify the next-hop routing gateway. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 15: Wireless
Lease time Time of assigning the IP address. 3.1.3 Wireless Menu of wireless are mainly for configuring the SSID, work mode, password, etc. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... - Page 16 802.11b up to 11Mbps, 802.11g up to 54Mbps and 802.11n up to 300Mbps. 5) Encryption You can only choose below types if the mode is set as 802.11b or 802.11g. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com...
-
Page 17: Online Detection
The meaning of the parameters are as follows. 1) Detection Type There are 3 types: ping, traceroute and DNS. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... - Page 18 Click enable, and router will reboot within the time set if it fails to reconnect. 7) Reboot After Interval You can specify the time for offline, to reboot the router. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com...
-
Page 19: Diagnostics
Click ping, then you can check if there is response from an IP address, as bellow. 2) Traceroute Click traceroute, then you can see similar reponse as below. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 20: Security
Menu of Security are for configuring the firewall, to ensure the security of accessing to internet, and implement the port forwarding, access control, data packet filtering, and other functions. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 21: Dmz Host
The destination port after port forwarding. Normally, external port and internal port are the same, but also can be different. After configured above-mentioned, click ‘Add’, then a new rule will be added, and click Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 22: Traffic Rules
3) Destination Zone You can choose where to forward the data packet. Click ‘Add and Edit’, then you can get more detailed matching condition. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... - Page 23 3) Source MAC Address To choose the source MAC address of data packet. 4) Source Address To choose the source IP address of data packet. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com...
-
Page 24: Custom Settings
When you add rules, please add them at the bottom of existing rules, and don’t delete them. 3.3 Management 3.3.1 System Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 25: Password
You’ll be required to input your origin password before your revise your new password. 2) Password Type the new password you want to change. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 26: Time Setting
Format must be: 20xx-xx-xx (Year-Month-Day), or you will fail to update it. RTC Time Format must be xx: xx: xx (Hour-Min-Second), or you will fail to update it. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 27: Log Settings
You can output the log to serial port, or specified file path, or external storage device, and the default path is:/var/log/ 2) Log Size Set up the size of log, default value is 64KB. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 28: Backup And Reset
Click ‘upload archive’, select and upload the backup configuration file, and a pop-up confirmation box with ‘Really Restore’ will display, then click ‘OK’, to recover the configuration. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 29: Firmware Upgrade
Size The size of firmware. Proceed Click ‘proceed’ to start the firmware upgrade, or click ‘cancel’ to stop the firmware upgrade. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 30: Remote Management
3) Server Port The specified login server port. 4) Heartbeat Interval The heartbeat time interval (Unit: second) 5) Device Number Device ID of router. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 31: Reboot
Type the firmware version that you want to upgrade remotely. 3.3.8 Reboot Click ‘Perform Reboot’, and a pop-up confirmation box with ‘Really Reboot’ will display, Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 32: Advanced
There are several types of DDNS service supported in router, as below. 2) User Name The username you register at DDNS service provider. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 33: Oray
QoS helps you to set up priority for different IP address and port. You can choose ‘Priority’, ‘Express’, ‘Normal’, ‘Low’. You can set up the download and upload speed and click ‘Enable’ to limit the speed. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 34: Static Routing
255.255.255.255. IPv4 Gateway: The address of next-hop gateway address. Note: this address shall be achievable, or you’ll fail to add static routing. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 35: Base Station Location (Option)
Server Port: The port of server. Report Interval: The interval time for auto report of router location, default value is 60 seconds. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 36: Traffic Meter
English and number input. 3.4.8 Serial Application The serial port will transfer the data to server, or server will transfer the data to serial port. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... - Page 37 4) Parity check None, Odd Check and Even Check, default value is None. 5) Flow Control None, Hardware and Firmware, default is None. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com...
-
Page 38: Vpn
You can configure either PPTP client or PPTP server, but not both of them at the same time, as that may cause uncertain issues. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... - Page 39 8. Default Gateway Click Default Gateway, then a default route will be established under ppp0, and all the data will go through this route. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com...
-
Page 40: L2Tp
Test * testing * 3.5.2 L2TP You can also configure either L2TP client or L2TP server, but not both of them at the same Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... - Page 41 8. Default Gateway Click Default Gateway, then a default route will be established under ppp0, and all the data will go through this route. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com...
- Page 42 To create an username and password under CHAP Secrets, format as below, Username<space>*<space>password<space>* For example, if you want to create a username: test, password: test, it is as below, Test * test * Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com...
-
Page 43: Openvpn
Choose the protocol, it can be UDP or TCP, default is UDP. 5) Port Enter the port you want to assign to OpenVPN, default port is 1194. 6) Device Type Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 44: Ipsec
When topology is point to point, and authentication type is certification, you need to choose if it is server or client. 3.5.4 IPSec On IPSEC page, system will display the IPSEC connection and status. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 45: View
10) ESP Encryption Algorithm The encryption method of ESP. 3.6 View To check the following system information. 3.6.1 System Display system information. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 46: Network
3.6.2 Network Display network information. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 47: Routing Tables
3.6.3 Routing Tables Display routing tables. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com... -
Page 48: System Log
3.6.4 System Log Display system log. 3.6.5 VPN Status Display VPN status. Add: Unit 0137, No. 366, Chengyi Street, Tel.: +86-592‐6211770 Software Park, Xiamen, China 361000 Fax: +86-592‐6211727 www.bivocom.com sales@bivocom.com...
