Total Lighting Control

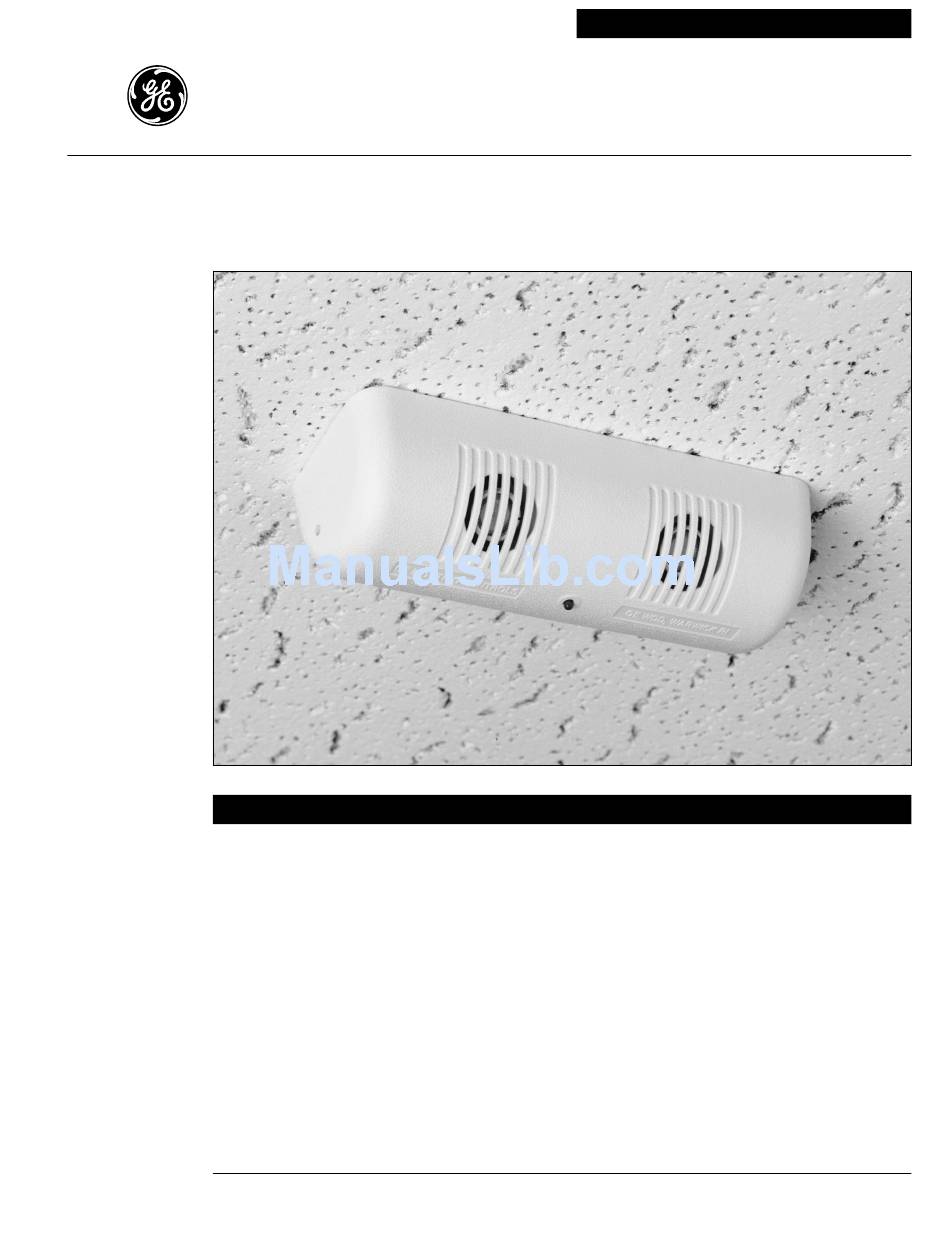

Two-way Occupancy Sensor for large rooms
DESCRIPTION AND FEATURES
The RSEN-LG is an ultrasonic motion sensor with built-
in timing and load control relay driving circuitry. It is
designed to control lighting in a room approximately
900 to 2100 square feet. It is for use with the GE RTPACK
switchpack only, and is not for use with other relays or
transformers.
The sensor produces a low intensity, inaudible sound and
detects changes in the sound waves caused by motion, such
as walking into a room, reaching for a telephone, turning in a
chair, etc. The sensor does not respond to audible sound.
When the sensor detects motion, the pre-set time delay
period is started and the blue wire is electronically connected
to the black wire. This energizes the relay in the RTPACK
switchpack which turns on the load. At the end of the pre-set
time period, the blue wire is disconnected from the black,
Catalog Number: RSEN-LG
causing the relay to open which turns off the load. The red
lead is a +15 VDC supply, the black lead is common and the
blue lead is the relay control.
• Full coverage with no gaps for rooms up to 2100 square feet
• Minor motion coverage up to 1350 square feet
• Not for use in corridors or warehouses
• Separate time delay and sensitivity adjustments
• Manual override should a unit fail (Failed board can be
replaced without removing unit or wiring)
• For indoor use
Before proceeding, read the enclosed installation
instructions. For GE TLC Service, call: 1-877-584-2685
(USA) and (Canada)
Installation Instructions
IMRSEN-LG
