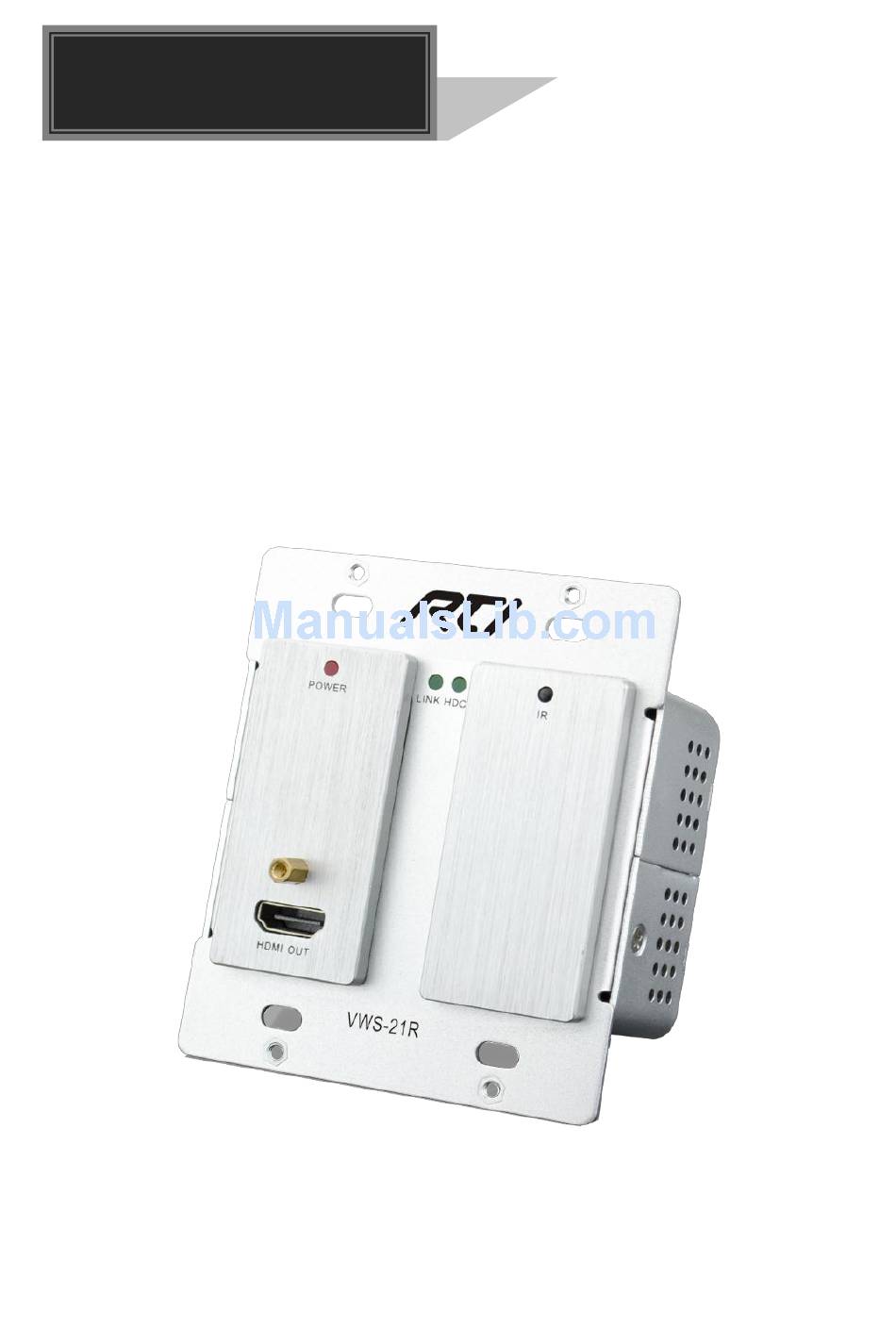

- Page 1 User Manual VWS-21R HDBaseT Wall Plate Receiver All Rights Reserved Version: VWS-21R_2017V1.0...
-
Page 2: Fcc Statement
HDBaseT Wall Plate Receiver Preface Read this user manual carefully before using the product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated till November 3, 2017. -
Page 3: Safety Precautions
HDBaseT Wall Plate Receiver SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment ... -
Page 4: Table Of Contents
HDBaseT Wall Plate Receiver Contents 1. Introduction ......................... 1 1.1 Introduction to VWS-21R ................... 1 1.2 Features ......................1 1.3 Package List ...................... 1 2. Panel Description ......................2 2.1 Front Panel ......................2 2.2 Rear Panel ......................3 3. System Connection ..................... 4 3.1 Usage Precautions .................... -
Page 5: Introduction
1. Introduction 1.1 Introduction to VWS-21R VWS-21R is a Decora style HDBaseT receiver that installs in a double-gang wall plate to provide a convenient interface for HDMI / DVI output. It has 1 HDMI OUT, 1 HDBT IN with PoC & PoE, 2 IR IN and 1 IR OUT. It supports HDMI 1.4& HDCP for reliable transmission. -
Page 6: Panel Description
HDBaseT Wall Plate Receiver 2. Panel Description 2.1 Front Panel POWER LINK HDCP HDMI OUT Name Description Power ① Illuminates red when powered on indicator Connect with HDMI display ② HDMI OUT LINK: Twisted Pair Link status indicator, illuminate green when successfully connected. -
Page 7: Rear Panel
Connect with DC 12V power adapter Note: VWS-21R can be energized via standard PoC& PoE, i.e. it can be energized by far-end device. Once connecting an IR Receiver to the IR IN socket, both the in-built IR sensor and the extended IR Receiver is capable to collect IR signal. -
Page 8: System Connection
All devices should be connected before power on. 3.2 System Diagram The following diagram illustrates typical input and output connections that can be utilized with VWS-21R (exampled by HDBaseT Twisted Pair PoC Transmitter): Figure 3- 1 System connection 3.3 Connection Procedure Step1. -
Page 9: Poc/ Poe Solution
Step4. Connect a control terminal (e.g. a PC) to the RS232 port of either HDBaseT Twisted Pair PoC Transmitter or VWS-21R. Step5. Both HDBaseT Twisted Pair PoC Transmitter and VWS-21R have IR IN and IR OUT sockets. When one model is used for IR signal receiver, the IR signal must be sent out by the other model. -
Page 10: Specification
HDBaseT Wall Plate Receiver 4. Specification Video Input 1 HDBT Output 1 HDMI Input Output 1 19-pin Type A HDMI 1 RJ45 Connector Connector female 1080P≤20M Transmission Distance 4Kx2K≤15M Control Parts 1 RS232 Control Ports 2 IR IN (1 in-built IR sensor on front panel, 1 3.5mm IR IN on rear panel 1 IR OUT General HDMI:4Kx2K, 1080P 3D, 1080P, 1080i, 720P, 576P, 576i, 480P, 480i... -
Page 11: Panel Drawing
HDBaseT Wall Plate Receiver 5. Panel Drawing 89 mm POWER POWER LINK HDCP LINK HDCP HDMI OUT HDMI OUT... -
Page 12: Troubleshooting & Maintenance
HDBaseT Wall Plate Receiver 6. Troubleshooting & Maintenance Problems Potential Causes Solutions Color losing or no video signal output in HDMI display No HDMI signal output in The connecting cables may Check whether the cables the device while local not be connected correctly are connected correctly HDMI input is in normal or it may be broken... -
Page 13: Customer Service
HDBaseT Wall Plate Receiver 7. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. ① Warranty The limited warranty period of the product is fixed 3 (three) years. ②... - Page 16 Remote Technologies Incorporated 5775 12th Avenue East, Suite 180 Shakopee, MN 55379 Tel: 952-253-3100 Fax: 952-253-3131 www.rticorp.com...
