Seneca XV-UM2U35 Quick Start Manual

PLEASE STOP AND READ ThIS DOCUMENT

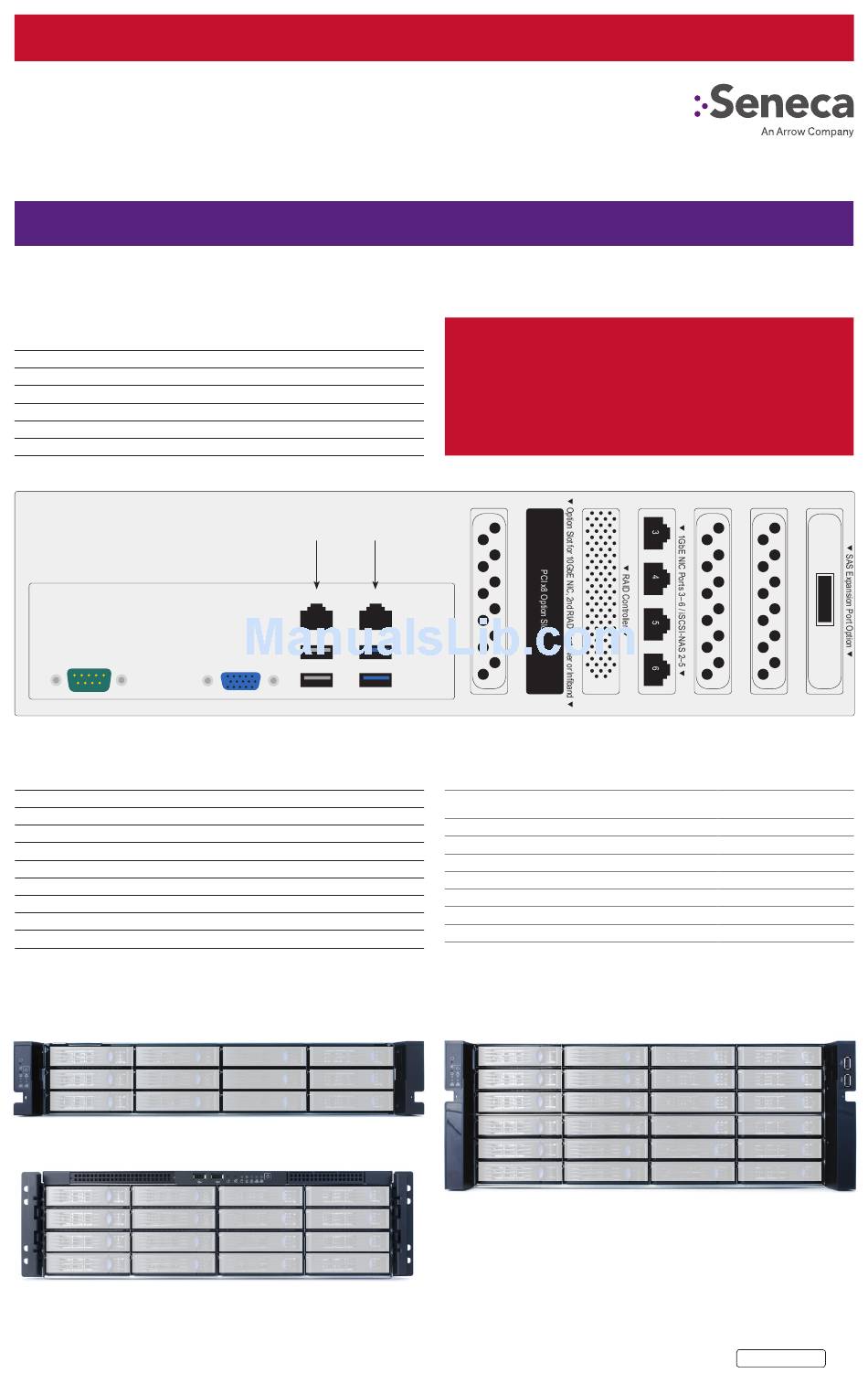

SENECA XVAULT UNifiEd STorAgE PLATform QUiCK STArT gUidE
XV-UM2U35 / XV-UM3U35 / XV-UM4U35
This product contains software that must be registered for continued use and to enjoy the benefits of eligibility for updates. Please
take the time to register the operating system and any applications installed on this product.
CONTENTS OF XVAULT PACKAGE
Quantity Item
1 xVault Unified Storge Platform Appliance
2 Power Cords
1 Bezel with Keys
1 rackmount Kit with Hardware
1 16gB USB flash thumb drive for emergency restore
1 32gB USB flash thumb drive for customer specific configuration backup & restore
MAIN bACK PANEL CONNECTIONS
I/O Port Connection Port Usage
NiC Port 1 management Port and optional iPmi
NiC Port 2–6 iSCSi / NAS 1–5
NiC Port 7–8 optional 10gbE Ports
VgA Console
USB Port 1 Keyboard
USB Port 2 mouse
USB Port 3
USB Port 4
SAS Expansion Port
DRIVE SLOT LOCATIONS bY ChASSIS MODEL
2U 12 bAY
SLOT-9 SLOT-10
SLOT-5 SLOT-6
SLOT-1 SLOT-2
3U 16 bAY
SLOT-13 SLOT-14
SLOT-9 SLOT-10
SLOT-5 SLOT-6
SLOT-1 SLOT-2
Management
Port iSCSI-NAS 1
Port 1 Port 2
USB 1
VGA
USB 2
SLOT-11 SLOT-12
SLOT-7 SLOT-8
SLOT-3 SLOT-4
SLOT-15 SLOT-16
SLOT-11 SLOT-12
SLOT-7 SLOT-8
SLOT-3 SLOT-4
DEFAULT LOG IN INFORMATION
Username: Administrator
Password: P@ssw0rd
Note: This user has administrative privileges.
DEFAULT 1GbE FIXED IP ADDRESSES
Port IP Address
management Port
172.16.6.9
1gbE Port 1
1gbE Port 2 10.0.10.8
1gbE Port 3 10.0.10.9
1gbE Port 4 10.0.10.10
1gbE Port 5 10.0.10.11
1gbE Port 6 10.0.10.12
10gbE Port 1 10.10.10.3
10gbE Port 2 10.10.10.4
4U 24 bAY
SLOT-21 SLOT-22
SLOT-17 SLOT-18
SLOT-13 SLOT-14
SLOT-9 SLOT-10
SLOT-5 SLOT-6
SLOT-1 SLOT-2
Mask
255.255.255.0
255.255.255.0
255.255.255.0
255.255.255.0
255.255.255.0
255.255.255.0
255.255.255.0
255.255.255.0
SLOT-23 SLOT-24
SLOT-19 SLOT-20
SLOT-15 SLOT-16
SLOT-11 SLOT-12
SLOT-7 SLOT-8
SLOT-3 SLOT-4
XVUSPQS-V2.0.1214
*XVUSPQS-V2.0*
XVUSPQS-V2.0
