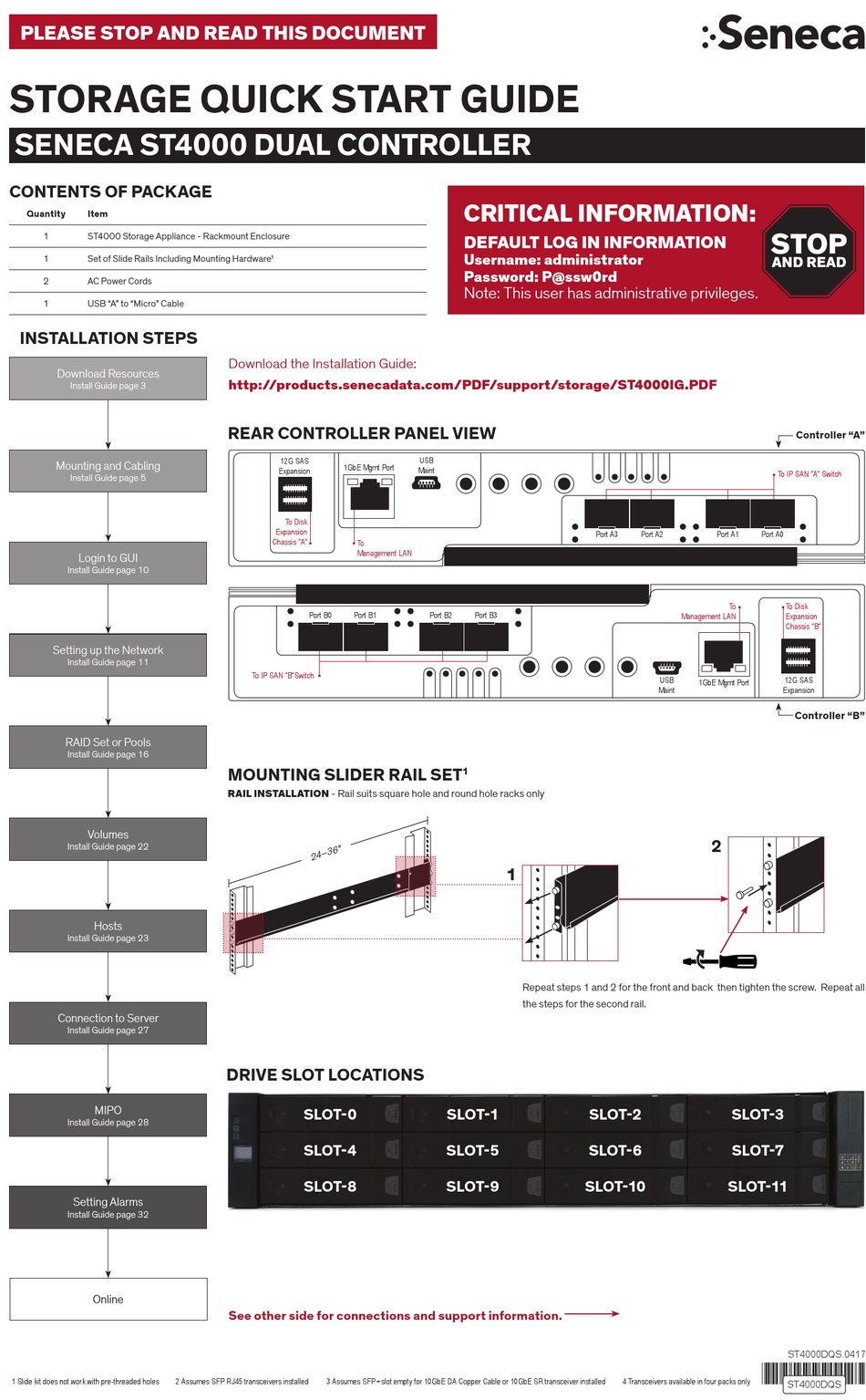

Seneca ST4000 Quick Start Manual

Please stoP and read this document
STORAgE QUICK START gUIDE
SENECA ST4000 DUAL CONTROLLER

CONTENTS OF PACKAgE

Quantity Item
1 ST4000 Storage Appliance - Rackmount Enclosure
1 Set of Slide Rails Including Mounting Hardware
2 AC Power Cords
1 USB "A" to "Micro" Cable

INSTALLATION STEPS

Download Resources
Install Guide page 3
Mounting and Cabling
Install Guide page 5

Login to GUI

Install Guide page 10

Setting up the Network

Install Guide page 11

RAID Set or Pools

Install Guide page 16

Volumes

Install Guide page 22

Hosts

Install Guide page 23

Connection to Server

Install Guide page 27
MIPO
Install Guide page 28

Setting Alarms

Install Guide page 32
Online
1 Slide kit does not work with pre-threaded holes 2 Assumes SFP RJ45 transceivers installed
1
Download the Installation Guide:
http://products.senecadata.com/PdF/support/storage/st4000iG.PdF

REAR CONTROLLER PANEL VIEw

12G SAS
1GbE Mgmt Port
Expansion
To Disk
Expansion
Chassis "A"
To
Management LAN
Port B0 Port B1
To IP SAN "B"Switch

MOUNTINg SLIDER RAIL SET

rail installation - Rail suits square hole and round hole racks only

DRIVE SLOT LOCATIONS

SLOT-0
SLOT-4
SLOT-8
See other side for connections and support information.
3 Assumes SFP+ slot empty for 10GbE DA Copper Cable or 10GbE SR transceiver installed
critical inFormation:
deFault loG in inFormation
username: administrator
Password: P@ssw0rd
Note: This user has administrative privileges.
USB
Maint
Port B2 Port B3
1
1
Repeat steps 1 and 2 for the front and back then tighten the screw. Repeat all
the steps for the second rail.
SLOT-1
SLOT-5
SLOT-9 SLOT-10
Port A3 Port A2 Port A1
To
Management LAN
USB
1GbE Mgmt Port
Maint
2
SLOT-2 SLOT-3
SLOT-6 SLOT-7
SLOT-11
4 Transceivers available in four packs only
stoP
and read
Controller "A"
To IP SAN "A" Switch
Port A0
To Disk
Expansion
Chassis "B"
12G SAS
Expansion
Controller "B"
ST4000DQS.0417
*ST4000DQS*
ST4000DQS
