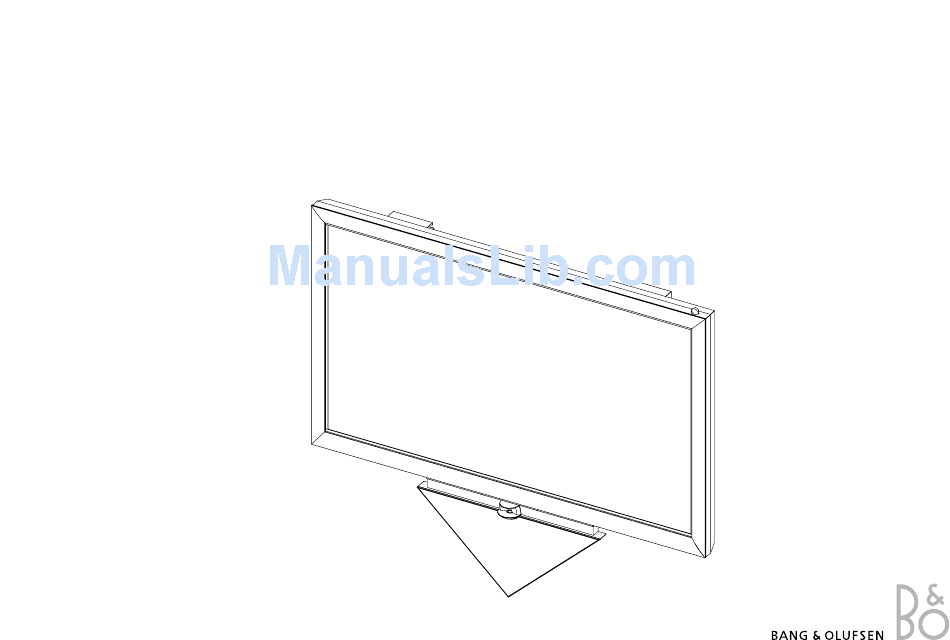

- Page 1 BeoVision 4-85 Installation Guide for BeoVision 4-85, Wall Bracket Version 1.1...
-
Page 2: Contents Introduction
- Precautions - Assembly and installation of Wall Bracket - Mechanical specifications for BeoVision 4-85, Wall Bracket. Important ! Since both the plasma panel and the stand are sizeable products, it is strongly recommended to read the warning and precautions section carefully. -
Page 3: Warning / Precautions
Edges of the items The shape of BeoVision 4-85 and the Wall Bracket may be considered potential risks when they are free-hanging items. To avoid getting injured, be aware of their positions when they are free-hanging in the active working area during the installation. -
Page 4: Installation Overview
Installation overview Installation overview Apart from the Wall Bracket, the basic set-up of BeoVision 4-85 includes the following items: Introduction - BeoVision 4-85 PDP (Plasma Display Panel) incl. IR, ACM and shielding frames - BeoSystem 3 - BeoLab 10 Warning/Precautions... - Page 5 ≥ 235cm (height) ≥ 98cm (width) The weight of BeoVision 4-85 is approx. 150 kg. It is recommended to use a crane which is approved to handle loads up to 350 kg. The reason is to ensure a safe and steady installation.
-
Page 6: Installation, Wall Bracket
Installation, Wall Bracket Installation, Wall Bracket The elements in the Wall Bracket installation consists of mounting the Wall Bracket and TV installation. To ensure a smooth installation it is recommended to follow a structured procedure. Please follow the suggested procedure below: - Mounting the Wall Bracket. -
Page 7: Installation, Tv
5mm (x4) Placement of TV in packaging The purpose of this step is to place the BeoVision 4-85 in its packaging in an appropriate place. The aim is to obtain as little moving of the TV as Floor possible, which is a great advantage when moving large objects. It is prudent to conduct a test run of the transport without the TV mounted on the crane. -
Page 8: Removal Of Tv Packaging
Removal of TV packaging Removal of TV packaging When the product is placed in its packaging the next step is to remove the packaging parts. Follow the procedure below: > Remove the securing belts > Remove the top packaging > Remove the front packaging >... -
Page 9: Removal Of Tv From Packaging
Removal of TV from packaging Removal of TV from packaging The TV is now free-standing and ready for transport. When the TV is removed and free from the packaging, the plates and the EMC gaskets must be installed. Follow the procedure below (depending of the crane type the procedure may vary): >... -
Page 10: Replacing Stand Hooks On Tv
Replacing stand hooks on TV / Notice PDP values Replacing stand hooks on TV / mounting EMC caps The next step is to replace the stand hooks (as delivered from factory) and mount the EMC caps. This is necessary to be able to attach the TV to the Wall Bracket and to ensure elimination of EMC (ElectroMagnetic Compatibility). -
Page 11: Installing The Tv On The Wall Bracket
Installing the TV on the Wall Bracket Installing the TV on the Wall Bracket Now the TV is ready to be installed on the Wall Bracket. > Move the TV with the crane to the Wall Bracket > and attach the four stand hooks to the four notches. ! It is recommended to have at least one person steering the crane and two persons steering the TV to prevent damaging the product. -
Page 12: Installing Shielding Frames
Installing shielding frames Installing shielding frames Install the four shielding frames (MDF supplied with the TV) in the following order: Shielding frame >>> ! It is important that tongued and grooved fits perfectly. > Shielding frame top > Shielding frame bottom Screws Shielding frame >>> > Shielding frame left/right >... -
Page 13: Connecting Cables To Tv
Connecting cables to TV Connecting cables to TV - Connect the cables to the connectors on the TV as shown: AV module: - HDMI cable -> to BS3 - RS232 cable -> to BS3 - 3D shutter out -> to 3D socket IR/Camera module: - Camera cable ->... -
Page 14: Installing Beolab 10
Installing BeoLab 10 Installing BeoLab 10 The next step is to install BeoLab 10. Please follow the procedure below: > Install the BeoLab 10 Wall Bracket on the mounting bracket for BeoLab 10. Adjust the position of the Wall Bracket, BeoLab 10 (shown below): ! Tip: Do not tighten the screws more than it is still possible to gently move the position of the bracket (it must be exactly strong enough to hold its position). -
Page 15: Connecting Products
Connecting products / Setting-up PDP settings / Placing decorative plates Connecting products The last step is to connect the necessary cables to the TV and BeoSystem 3, set-top boxes, to mains, etc. Follow the procedure below: > Connect HDMI, IR and RS232 cable from BeoVision 4 to BeoSystem 3. >... -
Page 16: Technical Specifications
Technical specifications Technical specifications Weight Item Item weight Packing Total Monitor 144 kg 89 kg 233 kg Wall Bracket 19 kg 3 kg 22 kg Speaker box 2.35 kg 1.9 kg 4.25 kg BeoLab 10 13 kg Size (W x H x D) Item Item size Packing size... - Page 17 Technical specifications Outer dimensions Front view...
- Page 18 Technical specifications Right side view Top view...
- Page 19 Technical specifications Drilling measurements...
-
Page 20: Table Of Contents
Contents / Installation overview Contents Introduction ..................2 Introduction How to navigate this Guide ............2 Warning / Precautions ..............3 Warning/Precautions Installation overview ................ 4 Installation, Wall Bracket ..............6 Installation overview Mounting the Wall Bracket ............6 Installation, Wall Bracket Installation, TV ..................
