THROUGH-THE-WALL ROOM PRESSURE SENSOR
THE MODEL 800243/800326 ROOM PRESSURE SENSORS MUST BE WIRED TO 24 VAC ONLY.
WIRING THE UNIT TO 110 VAC WILL CAUSE SERIOUS DAMAGE TO THE UNIT AND VOID THE WARRANTY.
The pressure sensor must be mounted through-the-wall between the controlled space and referenced space.
These installation instructions guide the installer through the installation of the TSI Model 800243/800326
Through-the-Wall Room Pressure Sensor. Unless specified otherwise, figures and instructions apply to all
versions. Please read these instructions thoroughly before beginning installation.
This product is classified by UL as to fire resistive properties only. See UL File R15545.

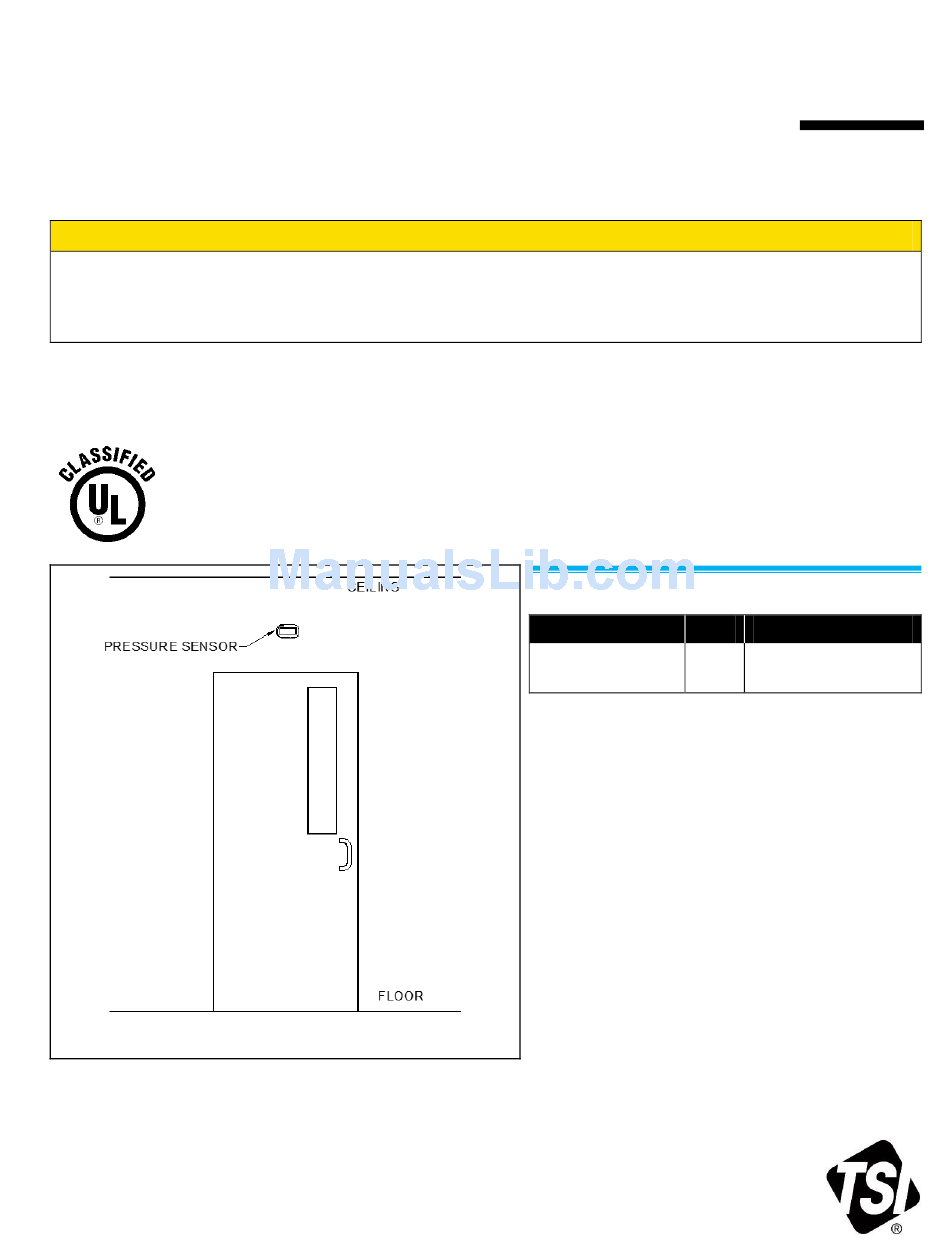

Figure 1: Typical Installation
_____________________
TSI and TSI logo are registered trademarks of TSI Incorporated.
MODEL 800243 or 800326
WARNING
Component List
Part Number
800243 or
800326
INSTALLATION INSTRUCTIONS
Qty
Description
1
Pressure sensor
with cable

Advertisement

loading
Need help?

Need help?

Do you have a question about the 800243 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TSI Instruments 800243

  • Page 1 The pressure sensor must be mounted through-the-wall between the controlled space and referenced space. These installation instructions guide the installer through the installation of the TSI Model 800243/800326 Through-the-Wall Room Pressure Sensor. Unless specified otherwise, figures and instructions apply to all versions.
  • Page 2 Pressure Sensor Installation WARNING 800243/800326 pressure sensor must be mounted through-the-wall between the controlled space (isolation room) and referenced space (hallway), exactly as shown in Figure 3 and Figure 4.  Determine pressure sensor location (Figure 1, Figure 3, and Figure 4). Pressure...
  • Page 3 CEILING ½ THE DISTANCE BETWEEN CEILING & DOOR JAMB DUMMY PRESSURE COVER SENSOR BLACK FIRE SEALANT RING MUST INSERT INTO 2 ¼” HOLE CONTROLLED SPACE REFERENCE SPACE (TYPICALLY A HALLWAY) Figure 3: Cutaway View of Mounted Pressure Sensor Figure 4: Pressure Sensor Mounting WARNING DO NOT connect more than 24 VAC to any terminal.
  • Page 4: Power Requirements

    Wiring Recommendations  TSI recommends stranded wire.  Comply with local and national electrical codes.  Follow good wiring practices: o DO NOT run control wiring in the same conduit or wireway as power wiring. o Control cables should cross power cables at a 90-degree angle. o Use a consistent color code to maintain polarity.
