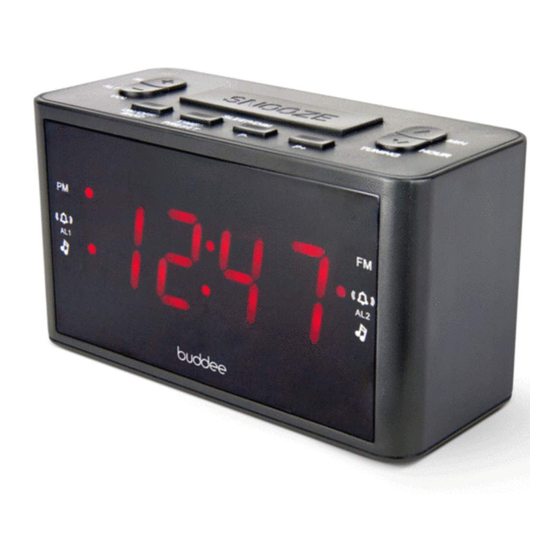

DUAL ALARM DIGITAL CLOCK RADIO
1.2" LED DISPLAY
USER MANUAL
Thank you for purchasing a Buddee Digital Clock Radio.
For optimum performance and safety, read these instructions
carefully before connecting, operating or adjusting this product.
Refer to this manual for future reference.

INTRODUCTION

Wake up how and when you like. With a large 1.2" LED display,
checking the time is easy wherever you are in the room. Set
alarms for multiple times of the day or night to ensure you wake
up on time ready for your important appointments. The stylish
and compact design fits easily on your bedside table, and
simple functionality makes it easy to operate and set the time.

FEATURES

• Dual alarms
• AM/FM radio
• Sleep and snooze functions
• 20 AM and 20 FM radio presets
• Radio or buzzer alarms
• Extra large 1.2" LED display

PACKAGE CONTENTS

Before attempting to use this unit, please check the
packaging and make sure the following items are
contained in the shipping carton:
• Main unit (Dual alarm digital clock radio)
• Power cable
• User manual

POWER

BATTERY BACKUP

This unit requires 2 x AAA batteries as backup in the event
of a power outage.
If there is a power failure, the time, alarm, and memory settings
will not be affected. After AC power is restored, the unit will
function normally with settings maintained.
Note: If the unit will not be used for an extended period of time,
disconnect from AC power and remove the batteries.
6 7
1
10
12
13

DEVICE FUNCTIONS

1. ON/OFF: Press to turn radio on, hold to turn radio off.
BAND: With radio on, press to switch between AM and FM.
2. TIME: Set the time.
PRESET: Set radio station presets.
3. P-: Select preset.
4. P+: Select preset.
5. SLEEP: Set radio to turn off after a specified time.
SNOOZE: Temporarily stop alarm.
DIM: Set display brightness.
6. VOL -: Decrease volume.
AL 1: Set alarm 1.
7. VOL +: Increase volume.
AL 2: Set alarm 2.
8. TUNING: Tune radio down.
HOUR: Set hour.
9. TUNING: Tune radio up.
MIN: Set minute.
10. PM indicator.
11. FM radio indicator.
12. ALARM 1 buzzer indicator.
13. ALARM 1 radio indicator.
14. ALARM 2 buzzer indicator.
15. ALARM 2 radio indicator.

TECHNICAL SPECIFICATIONS

Power supply: AC 220V-240V 50Hz 5W
Battery backup: 1.5V (AAA battery) x2 (not included)
Radio frequency: FM 87.5 - 108MHz
AM: 522 - 1620KHz
© Buddee Gear 2016. All rights reserved. All trademarks are
registered trademarks of respective manufacturers listed.
9
5
8
2
3
4
Made in China
11
14
15
