Page 1: User Guide

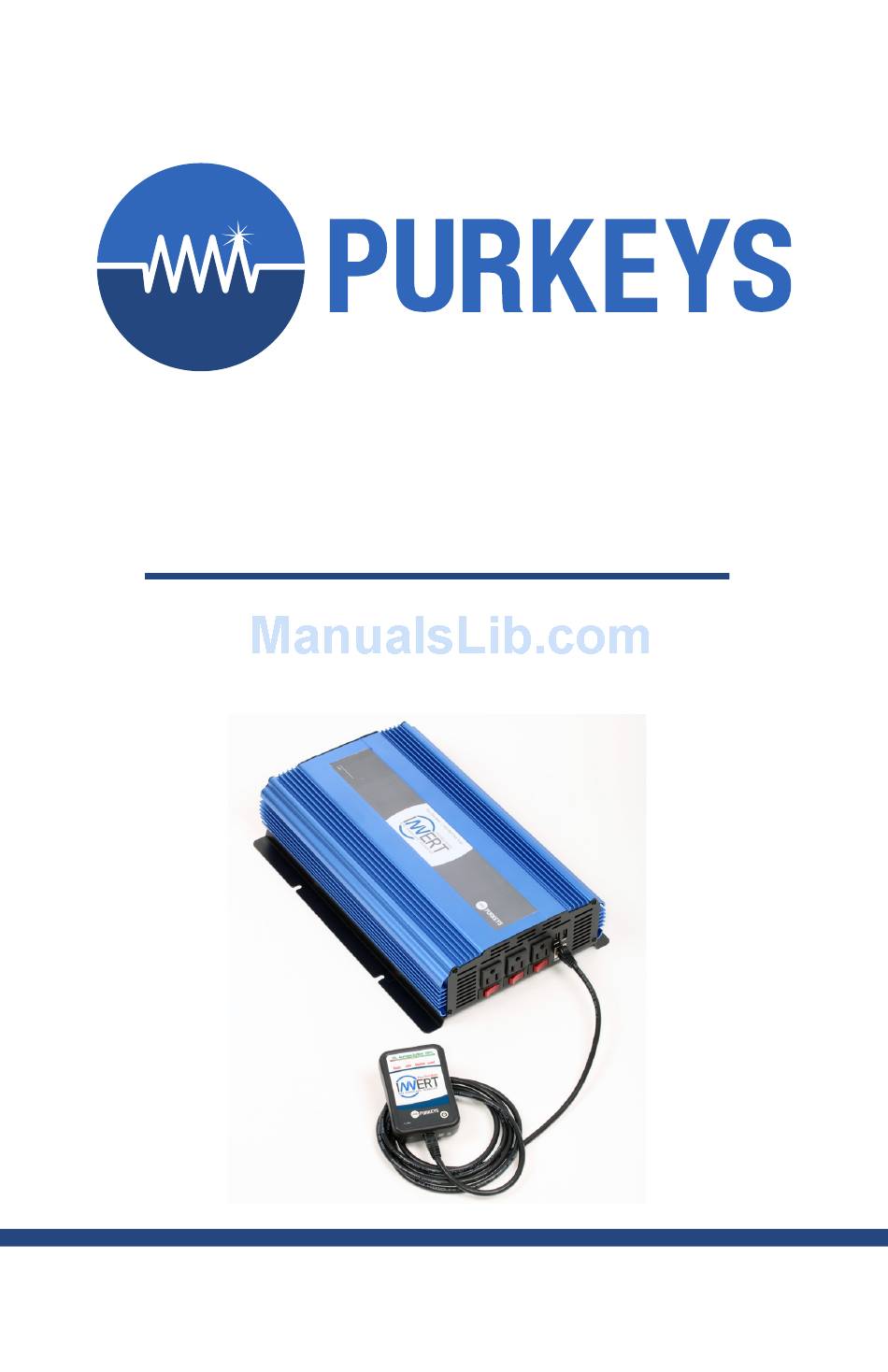

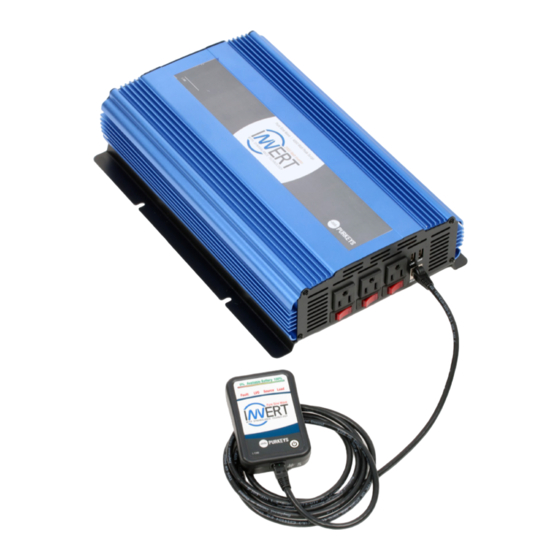

INVERT™ PURE SINE WAVE USER GUIDE 300-1 Doc 1.00... -
Page 3: Table Of Contents
General Information ..................2 General Inverter Safety ..................3 General Cautions ....................4 Call-outs ......................6 Installation ......................6 Harness Gauge Recommendations ............8 Operation ......................9 LED Logic .....................9 Fault ......................10 LVD Settings ....................11 Buzzer ......................12 Limited Commercial Warranty Policy ............13 P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net... -
Page 4: General Information
2000 watts. DynaBalance™ Monitoring Technology The Invert comes with a controller that measures input voltage and input current (even under load) to dynamically estimate the battery’s state of charge. This enables the controller to indicate available battery capacity and turn off when the battery’s state of charge drops to turn-off point. -
Page 5: General Inverter Safety
• Do not use the inverter in temperatures over 100˚ F (40˚ C) • Do not expose the inverter to water, rain, snow, or spray. • Do not use a 24 volt jumpstarter with the inverter connected to the batteries. P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net... -
Page 6: General Cautions
GENERAL CAUTIONS To reduce the risk of fire, electric shock, explosion or injury: • Ensure the inverter negative DC input terminal or the battery negative terminal is connected to earth ground if the inverter is used outside your vehicle. • Do not install in the engine compartment—install in a well-ventilated area. - Page 7 • If you need to remove a battery, always remove the ground terminal from the battery first. • Do not insert objects into the air vents. P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net...
-
Page 8: Call-Outs
If the circuit breaker trips, reset the circuit breaker/switch by turning the switch off, then back on. The switches can also be used to individually switch the three AC outlets on or off. RAFT #INVERT 1500 FOR SPEC SH REV: Weight: Scale:... -
Page 9: Installation
• Use the provided flathead screws to mount the clip. Step 3: Connect the cable to the REMOTE connection on the inverter, then to the connection on the base of the controller. P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net... -
Page 10: Harness Gauge Recommendations
Note: The inverter controller cable can be CAT5, CAT5e, or CAT6 and must have male RJ45 connectors on both ends (shielded or unshielded are both okay). The cable must be 8 position and 8 conductor (8p8c) and it cannot be a cross-over cable. Most RJ45/Ethernet type cables will work as long as the conductors are 24 gauge or larger. -
Page 11: Operation
PRODUCT NAME INSTALLATION GUIDE OPERATION LED LOGIC The Invert controller has green LEDs that indicate how much power is available for the driver to use. STATUS Solid Green: Less than 25% (about to shutdown) 1–2 Solid Green: 25-50% available battery 1–3... -
Page 12: Fault
FAULT The Invert controller also indicates if there is an issue with the inverter. If the green lights turn red, they are indicating a fault. LED STATUS FAULT SOLUTION Check cable connection Communication at inverter and controller. Blinking red fault Check cable for opens or shorts, replace if necessary. -
Page 13: Lvd Settings
• For high: Press the power button 4 times, showing 4 yellow lights Step 4: Once you have chosen an LVD setting, wait for the LEDs to turn green; this means the LVD is set and ready for use. P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net... -
Page 14: Buzzer
BUZZER The Invert controller includes a buzzer function that does the following: Beep Type Description Indicates power button has been Short Beep pressed LVD shutoff warning (will shut off Constant Beep in 30 seconds) -
Page 15: Limited Commercial Warranty Policy
Product or failure of a part not manufactured by Purkeys. This warranty shall not apply if any Purkeys product is used for a purpose for which it is not designed or is in any way altered without the specific prior written consent of Purkeys. ANY...
