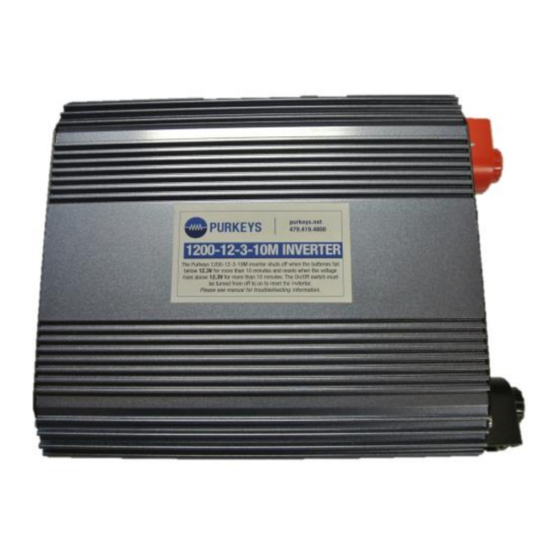

- Page 1 1200+ WITH TIMER V1.00 OWNERS MANUAL...
-
Page 2: Table Of Contents
Features ....................................6 Installation Instructions ................................. 7 Inverter Ground and Remote Sense Notes .......................... 8 Inverter Troubleshooting ..............................9 Inverter Voltage Drop Test ..............................11 Kill-A-Watt Opperation ................................ 12 Inverter Tool Instructiuons ..............................13 P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net... -
Page 3: General Information
3. Grounding the neutral will cause the inverter to shut down. Do not operate this inverter if it is wet. Do not install in the engine compartment –please install in a well-ventilated area. 4. This inverter is not tested for use with medical devices. P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net... - Page 4 DC cables and the appliance wiring. Cable insulation must be the appropriate type for the environment. The inverter harness supplied by Purkeys Fleet Electric was specifically designed for each tractor model. This harness meets or exceeds all requirements for safe and effective inverter operation.
- Page 5 This is not indicative of problems. WAVE FORM – This inverter is a Modified/Quasi wave sine. Some devices like medical equipment may require a PURE SINE WAVE inverter. Please check with us to verify. P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net...
-
Page 6: Operating Environment
Mounting- The power inverter can be operated in any position, however if mounted on a wall, mount it horizontally so the indicators, switch, outlets and terminals blocks located on the front panel are visible and accessible. P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net... -
Page 7: Features
1200+ WITH TIMER V1.00 OWNERS MANUAL INVERTER FEATURES Top LED’s indicate Timer Functions Mini DIN Connector is for Bottom three LED’s programming and timing out (red, yellow and the inverter green) indicate inverter functions P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net... -
Page 8: Installation Instructions
1200+ WITH TIMER V1.00 OWNERS MANUAL INSTALLATION INSTRUCTIONS As each inverter installation environment is unique, our custom harnesses contain vehicle specific instructions for each vehicle manufacturer. Wiring Harness Kit P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net... -
Page 9: Inverter Ground And Remote Sense Notes
R-TERMINAL OR REMOTE SENSE STUD- The R-Terminal or Remote Sense stud is used to be able to tell the inverter if the engine is running or off. (Should be 7 to 14 volts when the engine is running and zero volts when the engine is off.) P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net... -
Page 10: Inverter Troubleshooting
Check with Kill-a-Watt tester Motorized power tool does not Purely inductive load Make the load not purely inductive. Operate operate at correct speed an incandescent lamp at the same time as motor P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net... - Page 11 The timer is on and the set No action required. If the inverter is not being used then turn the inverter off to save run time. on/off switch is on period timer is on. P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net...
-
Page 12: Inverter Voltage Drop Test
9. The total voltage drop for the complete circuit must be less than “.396” to be within spec. Positive Voltage Drop + Negative Voltage Drop ---------------------------------- = Total Voltage Drop (Must be less than .396 to be within spec) P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net... -
Page 13: Kill-A-Watt Opperation
Consumption will be displayed in Kilowatt--Hours (from 0.01 KWH to 9999 KWH). Time will initially be displayed as Hours: Minutes (from 00:00) and switch to Hours (to 9999). Counters will recycle to zero when they reach their maximum. To reset, remove power from unit momentarily. P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net... -
Page 14: Inverter Tool Instructiuons
2. If the red LED is flashing on, then the inverter has timed out and needs to be reset. (proceed to step 3) Reference image example 2 Image example 2 3. Turn the inverter off. P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net... - Page 15 5. Short out the power inputs using the special tool by connecting the positive and negative on the inverter. This will drain the internal inverter capacitors. Reference image example 4 Image example 4 6. Remove capacitor drain tool (referenced in step 5). P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net...
- Page 16 LED light should come on at the same time. Wait five (5) seconds and detach the reset adapter. 9. Turn the inverter off and then back on. Both green lights should come on and the inverter will turn on. Reference image example 6 Image example 6 P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net...
- Page 17 Product or failure of a part not manufactured by Purkeys. This warranty shall not apply if any Purkeys product is used for a purpose for which it is not designed or is in any way altered without the specific prior written consent of Purkeys. ANY Product alleged by a Customer to be defective must be inspected by Purkeys as a part of the warranty claims process in order to confirm that the part has failed as a result of a defect in material or workmanship.
- Page 18 INCONVENIENCE, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES. PURKEYS SPECIFICALLY DISCLAIMS AND SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES arising out of or from the use of Purkeys products by the Customer. THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, INCLUDING COMMON LAW WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, AND ANY OTHER EXPRESS OR IMPLIED WARRANTIES.
