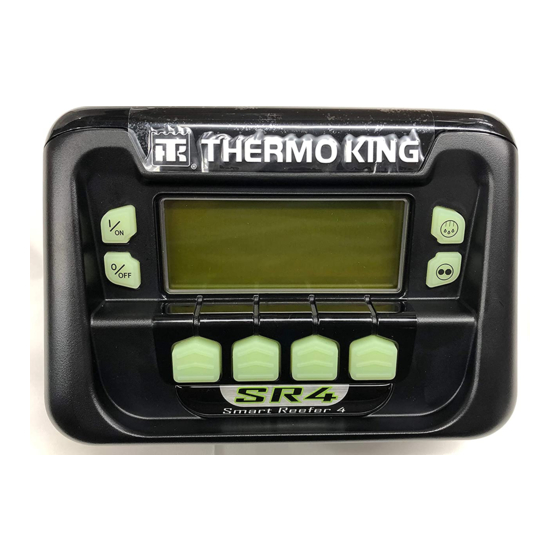

Thermo King Smart Reefer 4 Manual

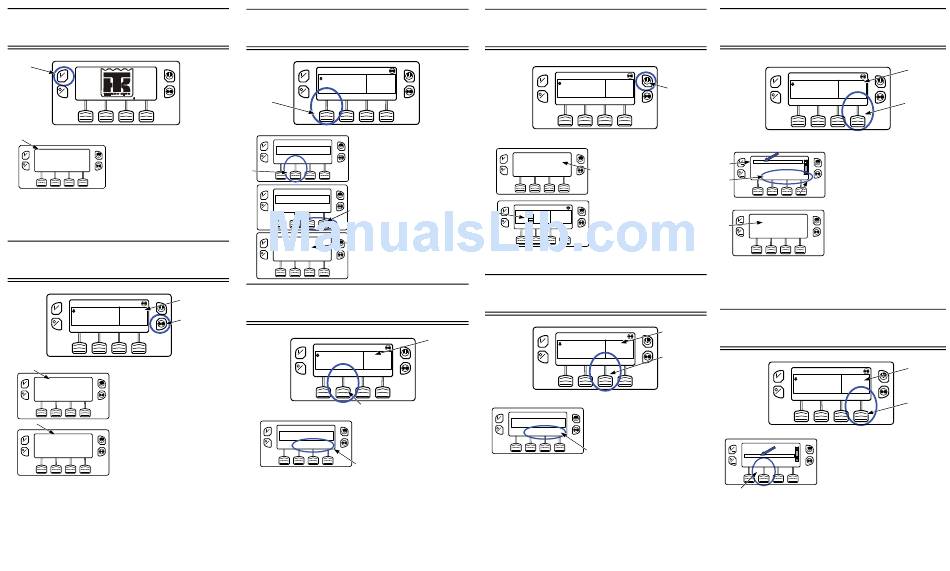

Simple to Start:
1
ON
OFF
3
1. Press the ON Key.
2. The THERMO KING Logo appears
CONFIGURING SYSTEM
ON
briefly.
PLEASE WAIT
OFF
3. The startup screen appears while
communications are established and
the unit prepares for operation.
4. The Standard Display defaults to the "TemperatureWatch" screen after
2-1/2 minutes. The TemperatureWatch Display will remain on until any key
is pressed or a check, prevent or shutdown alarm occurs.
NOTE: For more detailed information, see the Operation chapter in
the appropriate unit operating manual.
Simple to Set:
CYCLE-SENTRY or Continuous Mode
1
35
ON °F
35
2 & 6
.8
OFF
SET GAUGES SENSORS MENU
POINT
3
1. Return to the Standard Display.
PROGRAMMING CONT MODE
2. Press the CYCLE-SENTRY/
ON
Continuous Key.
PLEASE WAIT
OFF
3. The "Programming Continuous
Mode" or "Programming CYCLE-
SENTRY Mode" screen briefly
5
appears.
4. The "New System Mode is
NEW SYSTEM MODE IS
ON
Continuous" screen or the "New
CONTINUOUS
OFF System Mode CYCLE-SENTRY"
screen briefly appears.
5. The Standard Display appears
and the heading on top of screen
reads the new mode.
6. Pressing the CYCLE-SENTRY/Continuous Key again will change the
unit back to the previous mode.
NOTE: For more detailed information, see the Operation chapter in
the appropriate unit operating manual.
Simple to Set:
Setpoint Temperature
35
ON °F
35
.8
OFF
PRODUCT/ GAUGES SENSORS MENU
SETPOINT
2
1. Press any key to return to the
NEW SETPOINT WILL BE Standard Display.
ON 40 F
2. Press the SETPOINT Key on
+/- TO CHANGE - + OK?
OFF
YES NO
the Standard Display.
3
3. Press the + or - Keys to change
the setpoint reading.
NEW SETPOINT WILL BE
4. Press the YES or NO Key
ON 40 F
accordingly.
+/- TO CHANGE OK?
- + 4
OFF
YES NO
5. The Standard Display appears
with setpoint changed to the new
setpoint.
NOTE: For more detailed
NEW SETPOINT IS
5
ON
40 F information, see the Operation
chapter in the appropriate unit
OFF
operating manual.
Simple to Check:
Gauges
35
ON °F
35
.8
OFF
SET GAUGES SENSORS MENU
POINT
2
1. Return to the Standard Display.
BATTERY VOLTAGE
ON 13. 8
v Press the MENUKey.
OFF 2. Use UP and DOWN soft keys
EXIT LOCK BACK NEXT
to scroll to the gauges option.
Press the SELECT Key when
3
gauges option is highlighted.
3. Press BACK or NEXT Keys to
scroll through following gauges: Coolant Temperature, Coolant Level,
Engine Oil Pressure, Engine Oil Level, Amps, Battery Voltage, Accessory
Battery Voltage, Engine RPM, Fuel Level Sensor, Discharge Pressure,
Suction Pressure, ETV Position, Fresh Air Exchange, I/O. If no keys are
pressed within 30 seconds, the screen will return to the Standard Display.
4. Press the LOCK Key to display any gauge screen for an indefinite
period. Press the key again to unlock the screen.
5. Press the EXIT Key to return to the Standard Display.
NOTE: For more detailed information, see the Operation chapter in
the appropriate unit operating manual.
Simple to Defrost:
Initiate Manual Defrost
35
ON °F
.8
OFF
SET GAUGES SENSORS
POINT
1. Return to the Standard Display.
DEFROST STARTED
ON
2. Press the DEFROST Key.
3
OFF
3. The display will show
"Programming Defrost Please
Wait."
4. The display then shows the
4 Defrost Display. The bar indicator
ON
35
will fill in showing the time
OFF
SET GAUGES SENSORS MENU remaining to complete the Defrost
POINT
cycle. When the Defrost cycle is
complete the display returns to
Standard Display screen.
NOTE: For more detailed information, see the Operation chapter in
the appropriate unit operating manual.
Simple to Access:
Sensors
1
35
ON °F
.8
OFF
SET GAUGES SENSORS
POINT
CONTROL DISCHARGE AIR TEMPERATURE
ON 48.
3
°F
OFF
EXIT LOCK BACK NEXT
3
Temperature, Control Discharge Air Temperature, Display Discharge Air
Temperature, Temperature Differential, Evaporator Coil Temperature,
Ambient Air Temperature, Spare 1 Temperature, Datalogger Temperature
Sensors 1-6 and the Board Temperature Sensor. If no keys are pressed
within 30 seconds, the screen will return to the Standard Display.
4. Press the LOCK Key to display any sensor screen for an indefinite
period. Press the key again to unlock the screen.
5. Press the EXIT Key to return to the Standard Display.
NOTE: For more detailed information, see the Operation chapter in
the appropriate unit operating manual.
Simple to Check:
Pretrip Test
35 ON
2
MENU OFF
MAIN MENU
PRETRIP
4
ON
LANGUAGE
ALARMS
GAUGES
OFF
EXIT SELECT UP
5
PRETRIP
ON PASS
7
OFF EXIT
7. When all tests are complete, the results are reported as PASS, CHECK or
FAIL. If the results are CHECK or FAIL, the accompanying alarm codes will
direct the technician to the cause of the problem.
NOTE: For more detailed information, see the Operation chapter in the
appropriate unit operating manual.
Simple to Check:
1
Hourmeters
35
2
MENU
ON
OFF
1. Return to the Standard
Display.
2. Press the SENSORS Key.
3. Press the BACK or NEXT
Keys to scroll through the
MAIN MENU
following sensor screens: SENSORS
ON
DATA LOGGER
HOURMETERS
Control Return Air
MODE
OFF
EXIT SELECT UP
Temperature, Display Return Air
4
4. Press the SELECT Key to enter the Hourmeters Menu.
5. Press the NEXT and BACK Keys to view the Hourmeter Displays.
NOTE: For more detailed information, see the Operation chapter in the
appropriate unit operating manual.
2
35
°F
35
.8
SET GAUGES SENSORS MENU
3
POINT
1. Clear all alarm codes.
2. Return to the Standard Display.
3. Press the MENU Key.
DOWN
4. Press the UP or DOWN Key as to
choose the Pretrip Menu.
4
5. Press the SELECT Key to start a
Pretrip Test.
6. If the unit is not running, a Full
Pretrip will be initiated. If the unit is
running in either diesel or electric
mode, a Running Pretrip will be
performed.
1
35
°F
35
.8
SET GAUGES SENSORS MENU
POINT
2
1. Return to the Standard Display
screen.
2. Press the MENU Key.
DOWN
3. Scroll through Main Menu by
repeatedly pressing the UP and
DOWN Keys until the hourmeters
Main Menu Screen appears.
