Summary of Contents for Count Perfmaster Sprint

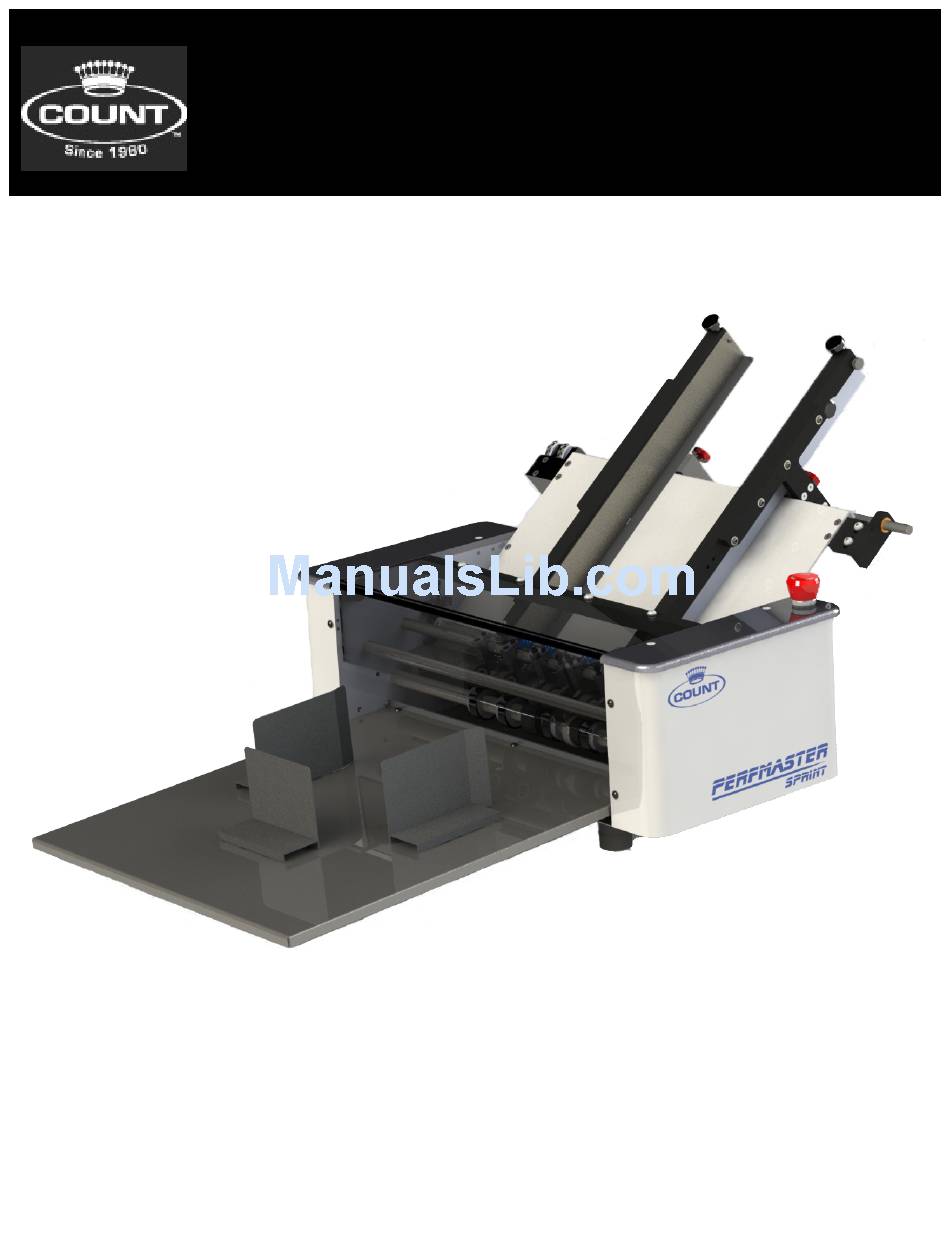

- Page 1 01-2016 Perfmaster Sprint...
-
Page 2: Table Of Contents
CONTENTS CARE AND MAINTENANCE ___________________________________________ 1 SAFETY PROCEDURES ______________________________________________ 1 SPECIFICATIONS __________________________________________________ 1 COMPONENT IDENTIFICATION _______________________________________ 2 MACHINE CONTROLS _______________________________________________ 3 MAIN POWER _____________________________________________________ 3 SPEED CONTROL __________________________________________________ 3 EMERGENCY STOP _________________________________________________ 3 DELIVERY TRAY ___________________________________________________ 4 INSTALLING THE DELIVERY TRAY ................. 4 PAPER STOPS ____________________________________________________ 4 INSTALLING THE PAPER STOPS .................. -
Page 3: Care And Maintenance
SPECIFICATIONS Net Weight: 70 lbs Overall Dimensions: 41”L x 30”W x 19”H Boxed Dimensions: 32”L x 35”W x 25”H Min. Sheet Size: 3” x 5” Max. Sheet Size: 18” x 20” Note: This machine is capable of handling many types of applications above and beyond the standard specifications. -
Page 4: Component Identification
COMPONENT IDENTIFICATION Feed Table Feed Rail Assembly Perferating and Score Assemblies Paper Stops Delivery Tray... -
Page 5: Machine Controls
MACHINE CONTROLS There are three controls on this machine. The following section will explain the function of all three controls. MAIN POWER The main power switch is located on the back panel below the feed table and closest to the operator side. -
Page 6: Delivery Tray
DELIVERY TRAY INSTALLING THE DELIVERY TRAY To install the delivery tray slide the tray under the dowel pins shown, with the angle facing upward. Dowel Pins PAPER STOPS INSTALLING THE PAPER STOPS There are 3 different paper stops. 2 will have bends and 1 will be straight. The straight paper stop is the rear or back paper stop. -
Page 7: Feed Table
FEED TABLE PARTS Item Part Description Number Number W-OF0645 Nut –Adjustment Feed W-OF0645 Micro-Lateral Adjustment Lock WRASAPP0005 Micro Skew Adj Knob M-S0H0825 Feed Rail Lock Down... -
Page 8: Feed Rails
FEED RAILS ADJUSTING FEED RAILS The feed rails on this machine are designed to adjust easily in case of a problem with crooked feeding. By loosening the feed rail alignment lock knobs you can move each rail independently to square them to your stock. To maintain an accurate perf or score, it is important to get the rails as aligned and snug to the sheet as possible without “squeezing”... -
Page 9: Perforating & Scoring Assemblies
PERFORATING & SCORING ASSEMBLIES REPLACING WORN BLADES 1. Loosen the socket head cap screw to remove pressure from the pressure adjust mounting bracket. 2. Loosen the set screw and remove the pressure adjust mounting bracket. Remove the button head cap screw that is retaining the score or perf blade. 3. -
Page 10: Perforating & Scoring Parts Breakdown
PERFORATING & SCORING PARTS BREAKDOWN ITEM NO. PART NUMBER DESCRIPTION QTY. M-S003048 10-32 1-1/2 SOCKET SCREW W-OF2652 LOCKNUT PRESSURE BRACKET W-OF2040 CNC PERF GUARD M-S0H0278 SCREW, 1/4-20X1/2” SOCKET SET HALF DOG M-S007008 HEXNUT 10-32 LOCK-KEPNUT M-S0H0456 WASHER, FLAT .200 X .438 X .031 W-ASAPP0143 PERF BLADE ASSY M-S003120... -
Page 11: Trouble Shooting
TROUBLE SHOOTING • POWER DOES NOT TURN ON 1. Check fuse on side cover. 2. Check outlet for power. • FEED TABLE NOT FEEDING CORRECTLY 1. Check Caliper Adjustment. 2. Feed wheels do not have equal pressure on them, check adjustment. •... - Page 12 251 Wedcor Avenue, Wabash, Indiana 46992 Website: www.countmachinery.com Email: Info@martinyale.com M-S027963 Rev. 0 1/22/2016...
